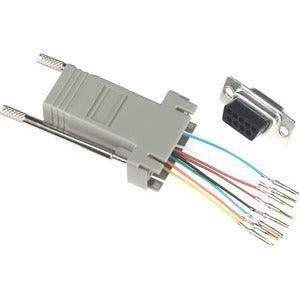

Black Box FA756 – DB9 Female to RJ45 Female 8-Wire Adapter Kit
Product Overview
The Black Box FA756 is an 8-wire modular adapter kit that converts a DB9 female serial interface to an RJ45 female connector. It is used in serial console server, KVM, and serial device integration deployments where DB9 RS-232 equipment must connect to RJ45-based serial infrastructure such as console servers, terminal servers, or structured cabling patches.
Product Description
The FA756 adapter kit provides a physical and electrical conversion between 9-pin DB9 (DE-9) female serial connectors and RJ45 female modular jacks. All 8 wires are connected in the adapter, supporting full serial signal passing including RTS, CTS, DTR, DSR, and DCD handshaking lines in addition to transmit and receive data. This adapter is commonly used with console servers, terminal servers, and serial-to-Ethernet devices that terminate serial ports via RJ45 jacks. It allows legacy serial equipment with DB9 connectors to integrate into structured cabling environments using standard RJ45 patch cables. IT and AV system integrators use adapters of this type when deploying out-of-band management networks for serial console access to routers, switches, AV control processors, and other serial-managed devices. For serial adapters, console server accessories, and AV control infrastructure, visit creationnetworks.net.
Key Features
- DB9 Female to RJ45 Female — Converts 9-pin DB9 serial connectors to RJ45 modular jack for structured cabling integration.
- 8-Wire Full Connection — All 8 conductors wired for complete serial signal support including hardware handshaking lines.
- RS-232 Handshaking Support — Passes RTS, CTS, DTR, DSR, DCD, and serial data lines for full-featured serial connections.
- Compact Adapter Form — Small inline form factor for use at equipment panels, patch bays, and device rear connectors.
- Console Server Compatible — Works with RJ45-based serial console servers and terminal servers for out-of-band serial management.
- No Tools Required — Passive adapter; plug directly onto DB9 connectors.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | FA756 |
| Input Connector | DB9 female (DE-9) |
| Output Connector | RJ45 female (8P8C) |
| Wire Count | 8-wire |
| Signal Type | RS-232 serial |
| Handshaking | Full (RTS, CTS, DTR, DSR, DCD) |
| Power Required | None (passive) |
| Brand | Black Box |
