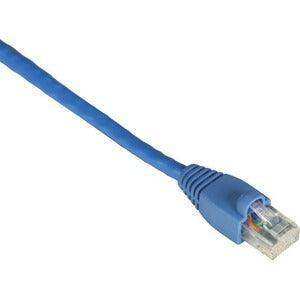

Black Box EVNSL641-0001 GigaTrue Cat. 6 Channel UTP Patch Cable - RJ-45 Male - RJ-45 Male - 1ft (Blue)
Roll over image to zoom in Click on image to zoom
Black Box EVNSL641-0001 GigaTrue Cat. 6 Channel UTP Patch Cable - RJ-45 Male - RJ-45 Male - 1ft (Blue)
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Black Box EVNSL641-0001 GigaTrue Cat. 6 Channel UTP Patch Cable - RJ-45 Male - RJ-45 Male - 1ft (Blue)

Black Box SKU: EVNSL641-0001
No reviews
Price:
$3.50

Description

Black Box GigaTrue Cat. 6 Channel UTP Patch Cable - RJ-45 Male - RJ-45 Male - 1ft - Blue

Black Box GigaTrue Premium CAT6 patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 spec, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.

These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's GigaTrue line of cabling gives you the flexibility to build your install however you want.

Features
  • GigaTrue Premium cable constructed to exceed industry standards
  • Cable Tested to 550 MHz, surpassing 250-MHz CAT6 standard
  • Cabling ETL verified to ANSI/TIA-568-C2
  • 50-micron gold-plated contacts provide superior conductivity
  • Connector designed for an insertion and extraction life of 750 cycles
  • This cable offers superior near-end crosstalk (NEXT) compared to standard CAT6 cable
  • Snagless boots prevent connector damage due to snags during installation
  • This cable is ideal for 1000BASE-T, 100BASE-TX, 10BASE-T and other high-speed applications
Physical Characteristics
Product Color Blue
Warranty
Limited Warranty Lifetime
Miscellaneous
Additional Information
  • Perfect for full broadband and baseband video
  • Full Power Sum performance
  • Provides full-duplex operation
  • Meets balance requirements (LCL/LCTL)
  • Improved attenuation provides cleaner data and video transmissions
  • Attenuation: 23.6 dB at 100 MHz, 39.1 dB at 250 MHz
  • Delay Skew (Maximum): 25 ns/100 m (328 ft.)
  • Impedance: 100 ± 15 ohms at 100 MHz, 100 ± 22 ohms at 100-550 MHz
  • Mutual Capacitance (Maximum): 56 pF/m
  • NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz
  • PS-ACR: 32 dB (Typical) at 100 MHz
  • PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz
  • Resistance (Maximum): 9.09 Ohms/100 m (328 ft.)
  • Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz
  • Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz

Applications:

  • 1000BASE-T
  • 100BASE-TX
  • 100BASE-VG
  • 155-Mbps ATM
  • 100-Mbps FDDI/CDDI
Certifications & Standards

EIA/TIA-568-B.2-1
Country of Origin China
Environmentally Friendly Yes
General Information
Product Type Network Cable
Manufacturer Part Number EVNSL641-0001
Manufacturer Website Address http://www.blackbox.com
Manufacturer Black Box Corporation
Product Name GigaTrue Cat.6 UTP Patch Network Cable
Product Line GigaTrue
Brand Name Black Box
Technical Information
Cable Length 1 ft
Conductor Copper
Data Transfer Rate 1 Gbit/s
Device Supported Wallplate
Patch Panel
Network Device
Jacket Type CM
Shielding No
Features PoE
Near End Cross Talk (NEXT)
Strain Relief
Damage Resistant
Booted
Stranded
Cable Characteristic Patch Cable
Cable Type Category 6
Connector Type on First End RJ-45 Network - Male
Connector Type on Second End RJ-45 Network - Male
American Wire Gauge 24 AWG
Contact Plating Gold
Connector on First End Details 1 x RJ-45 Network - Male
Connector on Second End Details 1 x RJ-45 Network - Male
Boot Type Snagless
