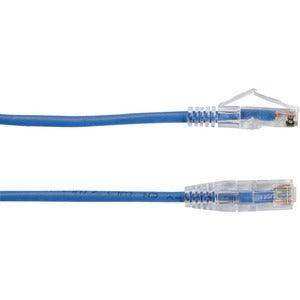

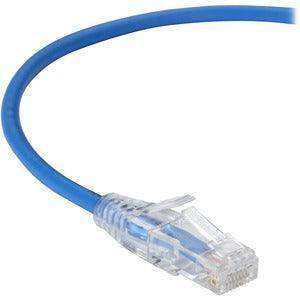

Black Box C6APC28-BL-10 10FT BLUE CAT6A SLIM 28AWG PATC H CABLE 500MHZ UTP CM SNAGLESS
Black Box C6APC28-BL-10 10FT BLUE CAT6A SLIM 28AWG PATC H CABLE 500MHZ UTP CM SNAGLESS
Roll over image to zoom in Click on image to zoom
Black Box C6APC28-BL-10 10FT BLUE CAT6A SLIM 28AWG PATC H CABLE 500MHZ UTP CM SNAGLESS
Black Box C6APC28-BL-10 10FT BLUE CAT6A SLIM 28AWG PATC H CABLE 500MHZ UTP CM SNAGLESS
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Black Box C6APC28-BL-10 10FT BLUE CAT6A SLIM 28AWG PATC H CABLE 500MHZ UTP CM SNAGLESS

Availability: Call for Availability
Availability: Direct Ship
Black Box SKU: C6APC28-BL-10
No reviews
Price:
$10.99

Description

Black Box Slim-Net Cat.6a UTP Patch Network Cable - 10 ft Category 6a Network Cable for Patch Panel, Wallplate, Network Device - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - Gold Plated Contact - CM - 28 AWG - Blue

Slim Fit

Black Box Slim-Net CAT6A patch cables feature a low-profile design that saves space and reduces clutter in crowded telecom rooms, data centers, and other high-density 10G networking applications. When you calculate this 28-AWG physical cable area in bundles and in patching connections, you actually save more than 50 percent space when compared to traditional cables.

Easier Cable Handling

Because there's more space between patched 28-AWG cables, there's more space for your fingers during installs and MACs. An added benefit is improved airflow and port visibility.

Reduced Cable Management

These 28-AWG cables have a small footprint and great flexibility, making it easy to route them without a cable manager. In addition, you can gain more than 50 percent space in vertical cable managers.

Conserve Rack Space

A major benefit of 28-AWG cables is they allow you to put more cables in high-density 1U or 2U patch panels, freeing up valuable rack units. You can also eliminate or reduce the number of horizontal cable managers, opening up even more space.

Big Performance in a Small Cable

Black Box Slim-Net cables meet ANSI/TIA-568-C.2 performance standards, ensuring the transmission of your 10G Ethernet signaling. They feature a robust construction that includes 50-micron gold-plated contacts for superior conductivity. These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's Slim-Net line of cabling gives you the flexibility to build your install however you want.
  • Slim-Net cables feature a low-profile design to save space in high-density applications
  • This 0.161" diameter 28-AWG cable is nearly half the diameter of standard cabling
  • This cable reduces clutter, enhances airflow and improves heat dissipation
  • Cabling meets ANSI/TIA-568-C2 performance standards
  • Cable tested to 500-MHz CAT6A industry standard
  • 50-micron gold-plated contacts provide superior conductivity
  • Snagless boots prevent connector damage due to snags during installation
Physical Characteristics
Product Color Blue
Warranty
Limited Warranty Lifetime
Miscellaneous
Country of Origin China
Environmentally Friendly Yes
General Information
Product Type Network Cable
Manufacturer Part Number C6APC28-BL-10
Manufacturer Website Address http://www.blackbox.com
Manufacturer Black Box Corporation
Product Name Slim-Net Cat.6a UTP Patch Network Cable
Product Line Slim-Net
Brand Name Black Box
Technical Information
Cable Length 10 ft
Data Transfer Rate 10 Gbit/s
Device Supported Network Device
Wallplate
Patch Panel
Jacket Type CM
Shielding No
Features Booted
Damage Resistant
Stranded
Strain Relief
Near End Cross Talk (NEXT)
Cable Characteristic Patch Cable
Cable Type Category 6a
Connector Type on First End RJ-45 Network - Male
Connector Type on Second End RJ-45 Network - Male
American Wire Gauge 28 AWG
Contact Plating Gold
Connector on First End Details 1 x RJ-45 Network - Male
Connector on Second End Details 1 x RJ-45 Network - Male
Boot Type Snagless
