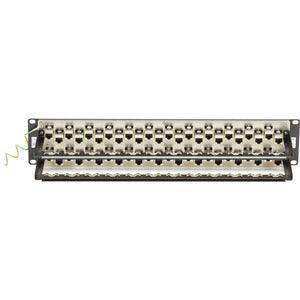

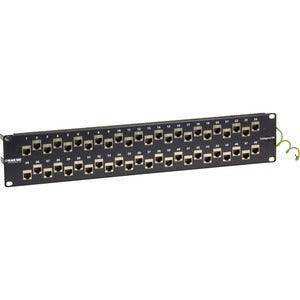

Black Box C6AFP70S-48 – 48-Port 2U Cat6A Staggered Feed Patch Panel

Product Overview

The Black Box C6AFP70S-48 is a 48-port, 2U rack-mount Cat6A patch panel with a staggered-feed design that significantly improves cable management and airflow in high-density structured cabling installations. Supporting 10 Gigabit Ethernet at full Cat6A performance (up to 500 MHz), this patch panel is the right choice for data centers, enterprise IDF/MDF closets, and commercial AV infrastructure where 10GBase-T switching is in use or planned. The staggered port layout offsets every other row of ports, giving technicians clear access to each connection and reducing the cable congestion typical of standard flat 48-port panels.

Product Description

The C6AFP70S-48 uses keystone-style Cat6A ports arranged in a staggered two-row configuration, where the two rows of 24 ports are offset vertically. This design physically separates patch cord entry angles, reducing the bend stress on cables and improving rear cable management. Each port includes the standard 8P8C (RJ45) interface and meets or exceeds TIA-568-C.2 and ISO/IEC 11801 Cat6A channel performance requirements at 500 MHz. The panel is compatible with 10GBase-T copper Ethernet, PoE, PoE+, and PoE++ applications, making it suitable for deployments that include IP cameras, wireless access points, IP phones, and PoE-powered AV endpoints. The 2U height provides a reasonable density while maintaining cable accessibility that is difficult to achieve in 1U 48-port designs. Rear cable management is enhanced by spaced port groups that allow individual cable dressing with hook-and-loop ties. For Cat6A patch cords, cable management hardware, and AV network switching equipment, visit Creation Networks.

Key Features

• 48 Cat6A Ports in 2U — Provides full 48-port capacity at a density appropriate for organized cable management, avoiding the congestion of 1U 48-port flat panels.
• Staggered Feed Design — Offset dual-row port layout separates patch cord angles, improving access to individual ports and reducing cable stress at connection points.
• 10 Gigabit Ethernet Support — Fully rated for 10GBase-T copper Ethernet at Cat6A performance (500 MHz), future-proofing structured cabling installations for 10G switching upgrades.
• PoE/PoE+/PoE++ Compatible — Rated for Power over Ethernet applications including high-wattage PoE++ (up to 90W) for powered AV endpoints and wireless infrastructure.
• TIA-568-C.2 and ISO/IEC 11801 Compliant — Meets industry standards for Cat6A channel performance, ensuring interoperability with compliant switches and network infrastructure.
• Rear Cable Management Spacing — Port grouping and chassis design provide clearance for individual cable dressing and labeling at the rear of the panel.
• Port Labeling — Numbered ports and labeling strips on the front face support clear circuit documentation and simplify MAC (moves, adds, changes) activities.

Typical Applications

• Conference room
• Boardroom
• Government space
• Commercial meeting space
• Training room
