Biamp Voltera A 300.2 Two-channel, 300-watt analog amplifier - 911.1948.900

Product Overview

The Biamp Voltera A 300.2 is a compact, two-channel, half-rack power amplifier with 300 watts of total output. Each channel can be individually selected to drive 4 ohm, 8 ohm, 70V, or 100V loads, and power sharing allows up to 300 watts on any channel. This makes it a strong fit as a flexible install amplifier, a 70V/100V distributed audio amplifier, and a compact power-sharing amplifier. The Voltera A 300.2 is TAA compliant for U.S. federal procurement.

Product Description

The Voltera A 300.2 provides 300 watts total across two channels, with each channel selectable to 150 watts into 4 ohm, 8 ohm, 70V, or 100V. Power sharing allows up to 300 watts to be delivered by any single channel. The half-width design, with included mounting accessories, supports single or tandem mounting in 1RU as well as placement under tables, on walls, behind screens, in ceilings, or on shelves. A default 4 dBu input sensitivity regardless of load makes it easy to drive with any source. Per-channel configuration includes mode switches for Lo/Hi-Z, a high-pass filter, and gain trim options that can boost both gain and power by up to 3 dB. The internal fan is thermally controlled and supports a whisper mode for normal operation. The amplifier includes Tesira processing blocks for applicable Biamp loudspeakers and an auto standby mode. It is CE marked, UL listed, RoHS compliant, and complies with the U.S. Trade Agreement Act.

Key Features

• Flexible Output — Each channel drives 100V, 70V, 8 ohm, or 4 ohm independently.
• Power Sharing — Any channel can deliver up to 300 watts, twice the symmetric power.
• Half-Width Design — Mounting options include 1RU single or tandem, under tables, on walls, behind screens, and in ceilings.
• Universal Input Sensitivity — A default 4 dBu input sensitivity makes the amplifier easy to drive with any source.

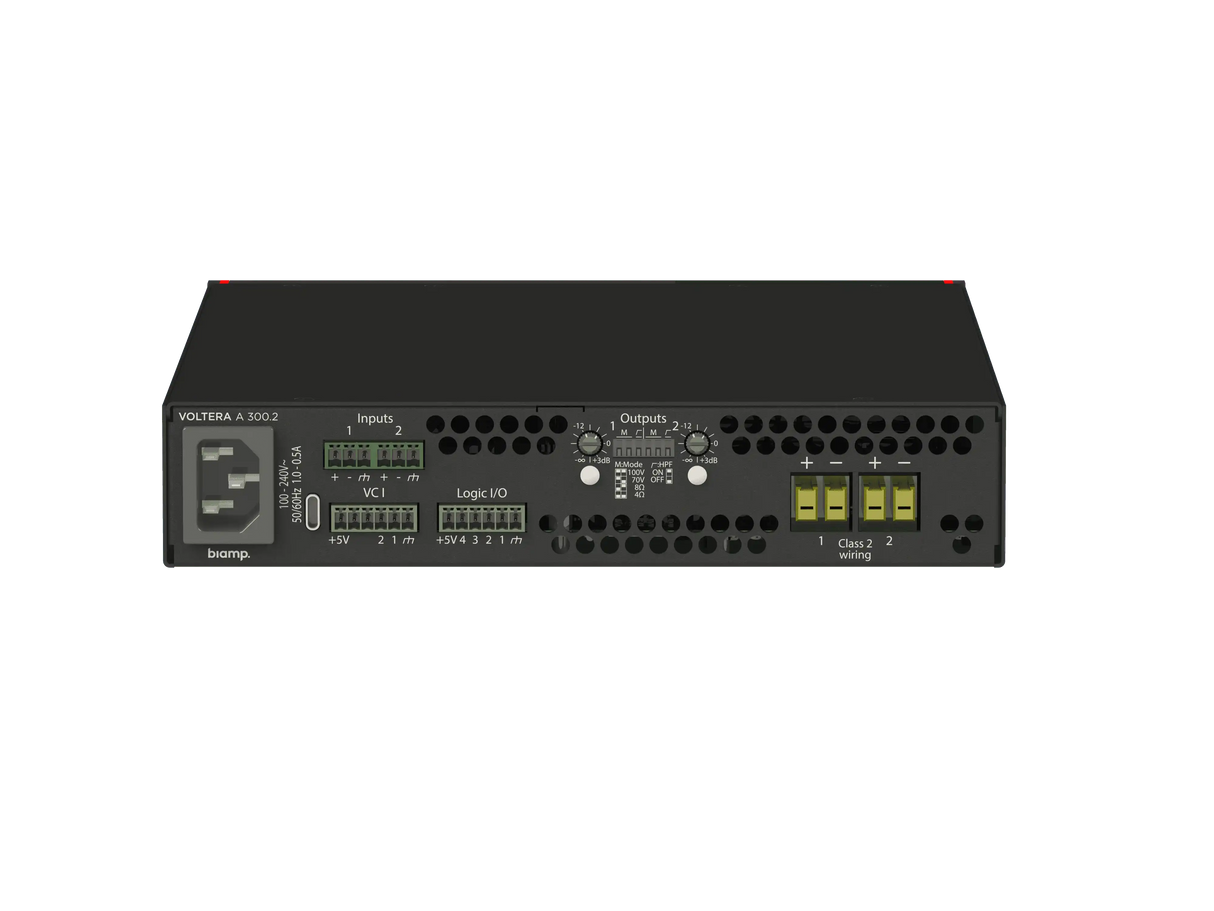

• Per-Channel Configuration — Switches set Lo/Hi-Z mode, high-pass filter, and gain trim of up to 3 dB.
• Whisper-Mode Cooling — A thermally controlled fan supports quiet normal operation.
• TAA Compliant — The amplifier complies with the U.S. Trade Agreement Act.

Typical Applications

• Conference Room — Compact form factor suits flexible meeting room placement.
• Commercial Meeting Space — Flexible load support drives distributed audio zones.
• Government Space — TAA compliance supports federal procurement.

Technical Specifications

Frequently Asked Questions

What loads can each channel drive?
Each channel can be individually selected to drive 4 ohm, 8 ohm, 70V, or 100V loads.

What is power sharing?
Power sharing allows up to 300 watts, twice the symmetric power, to be delivered by any single channel.

How quiet is the amplifier?
The thermally controlled fan supports a whisper mode for quiet normal operation.

Is the Voltera A 300.2 TAA compliant?
Yes. It complies with the U.S. Trade Agreement Act for GSA Schedule federal bids.
