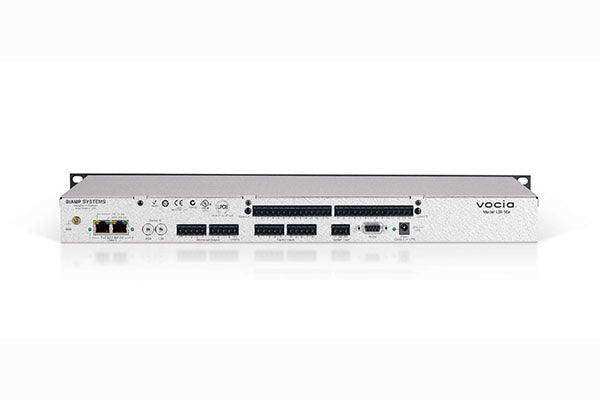

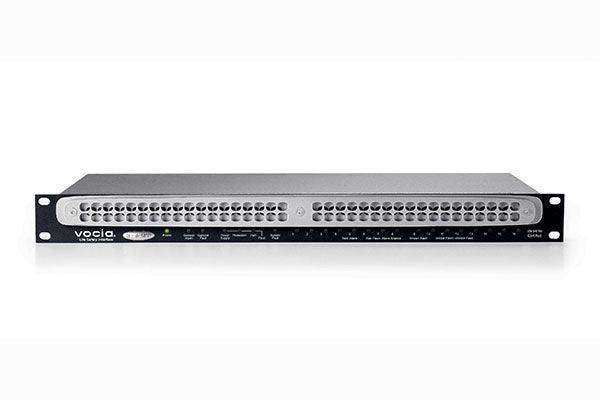

Biamp Vocia LSI-16e Enhanced Life Safety Interface - 911.0295.900

Description

The LSI-16e is an enhancement to the LSI-16 adding 16 additional control inputs and EN 54-16 certification. The LSI-16e serves as an enhanced emergency interface between a Vocia system and emergency/fire alarm systems. While typically powered from a certified 24V DC source, it can also utilize Power over Ethernet (PoE).

Features

• Parallel I/O ports for direct interface with fire alarm and emergency equipment
• 8 monitored I/O and 8 control inputs
• Redundant network connection and power supply options
• Power and data over a single Ethernet cable
• Local storage of configuration data
• Rotary switches for unit identification
• Up to 4 discrete emergency inputs
• 16 additional general purpose inputs can be programmed to play emergency message, enable zone reset or zone silence; maximum 10 inputs can be assigned per emergency zone
• Each general purpose input can be programmed as TTL, high range, or monitored high range
• General purpose inputs allow monitoring for short to ground and open circuit
• Up to 500 virtual inputs via RS-232 or Ethernet
• Provides system heath monitoring via RS-232 or Ethernet
• Status LEDs
• Rack mountable (1RU)
• EN 54-16 certified, EN 60849 and AS 60849 verified, CE marked, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
