Biamp Vocia AM-600c CK Amplifier Module - 909.0293.900
Biamp Vocia AM-600c CK Amplifier Module - 909.0293.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Vocia AM-600c CK Amplifier Module - 909.0293.900
Product Overview

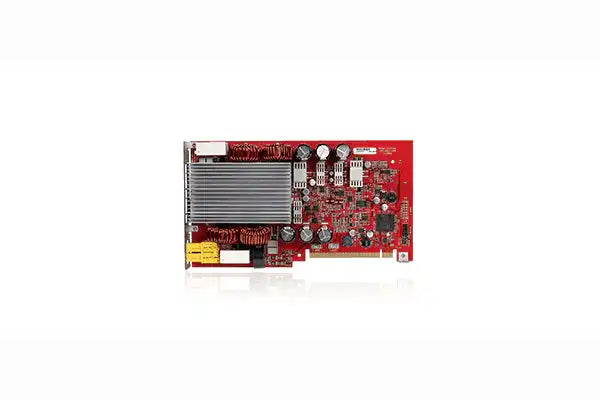

The Biamp Vocia AM-600c CK is an amplifier module with standards-compliant ground fault detection for the Vocia VA-8600c networked amplifier. It adds a monitored amplifier channel to life-safety and paging systems. Relevant searches include Vocia amplifier module, EN 54-16 amplifier card, and voice-evacuation amplifier module.
Product Description
The AM-600c provides 100 to 600 watts per module with low-impedance (4, 6, 8 ohm), 70-Volt, or 100-Volt line direct drive, and power levels and load options are software configurable. It reports a fault upon detecting a short to ground on the speaker line where that short would compromise the amplifier's ability to deliver emergency messages. Front-panel LEDs indicate module fault, activity, and signal presence. The module is EN 54-16 certified, EN 60849 and AS 60849 verified, RoHS compliant, and covered by the Biamp five-year warranty.
Key Features
- Up to 600W per module — Provides 100 to 600 watts per module for the VA-8600c amplifier.
- Flexible load options — Drives low-impedance (4, 6, 8 ohm), 70V, or 100V lines directly, with software-configurable power levels.
- Ground fault detection — Reports a fault on detecting a speaker-line short to ground that would compromise emergency message delivery.
- Status indication — Front-panel LEDs indicate module fault, activity, and signal presence.
- Life-safety certified — EN 54-16 certified and EN 60849 and AS 60849 verified for voice-evacuation systems.
Typical Applications
- Government space
- Commercial meeting space
- Auditorium
- House of worship
Technical Specifications
| Function | Amplifier module with ground fault detection for VA-8600c |
| Power per Module | 100 to 600 watts |
| Drive Options | Low impedance (4, 6, 8 ohm), 70V, or 100V line direct |
| Configuration | Software-configurable power levels and load options |
| Indication | Front-panel LEDs for module fault, activity, signal presence |
| Fault Detection | Reports speaker-line short-to-ground faults |
| Certifications | EN 54-16 certified, EN 60849 / AS 60849 verified, RoHS |
| Warranty | Biamp Systems 5-year warranty |
Frequently Asked Questions
Which amplifier does the AM-600c CK install into?
It is the amplifier module with ground fault detection for the Vocia VA-8600c networked amplifier.
How much power does each module provide?
Each module provides 100 to 600 watts, software configurable across low-impedance, 70V, and 100V drive.
Is it certified for life-safety use?
Yes. It is EN 54-16 certified and EN 60849 and AS 60849 verified.
Explore the full Biamp lineup at Creation Networks.
