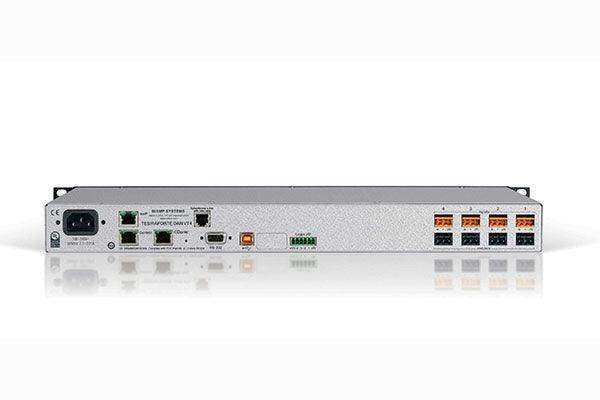

Biamp TesiraFORTÉ DAN VT4 Fixed I/O DSP - 911.0453.900

TesiraFORTÉ® DAN VT4 is a fixed I/O DSP with 32 bi-directional channels of Dante™ digital audio, 4 analog inputs, 4 channels of Acoustic Echo Cancellation (AEC) technology, and 4 analog outputs. It also includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface and a standard FXO telephone interface. USB audio allows TesiraFORTÉ to interface directly with USB audio hosts, as well as to take full advantage of today’s most sophisticated conferencing solutions. TesiraFORTÉ DAN VT4 also provides extensive audio processing, including but not limited to: AEC technology, signal routing
and mixing, equalization, filtering, dynamics, and delay, as well as control, monitoring, and diagnostic tools; all configured through the Tesira configuration software. TesiraFORTÉ DAN VT4 is best-suited for smaller rooms that require high-quality audio solutions using VoIP, voice lift, mix-minus, and AEC, such as conference rooms or distance learning environments.

Linking multiple TesiraFORTÉ DAN units together

• 32 x 32 channels of Dante
• AES67-enabled Dante endpoint
• 4 mic/line level inputs with AEC, 4 mic/line level outputs
• Gigabit Ethernet port
• RS-232 serial port
• 4-pin GPIO
• 2-line OLED display with capacitive-touch navigation
• Rack mountable (1RU)
• System configuration and control via Ethernet
• Internal universal power supply
• SIP VoIP interface via RJ-45 connector
• Standard FXO telephone interface via RJ-11 connector
• Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, and delay
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
