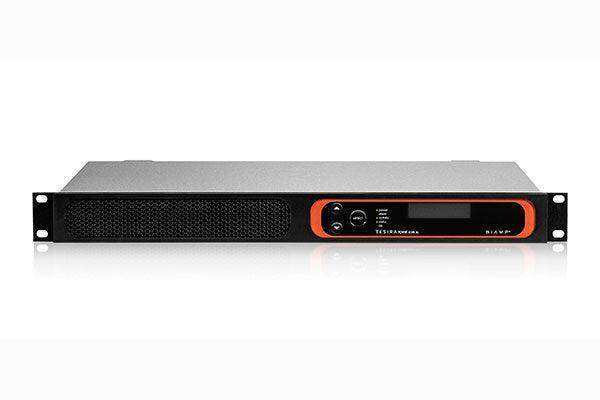

Biamp TesiraFORTÉ DAN VT Fixed I/O DSP - 911.0451.900

The TesiraFORTÉ DAN VT is a powerful fixed I/O DSP designed for high-quality audio in conference rooms, distance learning environments, and other spaces that require advanced audio solutions. With 32 bi-directional channels of Dante digital audio, 12 analog inputs featuring Acoustic Echo Cancellation technology, and 8 analog outputs, this device offers exceptional flexibility and versatility. Additionally, it includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface, and a standard FXO telephone interface, making it easy to interface with a wide range of audio hosts and conferencing solutions. The TesiraFORTÉ DAN VT also features a variety of audio processing tools, such as signal routing and mixing, equalization, filtering, dynamics, and delay, as well as control, monitoring, and diagnostic tools, all of which are easily configured using the Tesira configuration software. Whether you need high-quality audio for voice lift, mix-minus, or AEC, the TesiraFORTÉ DAN VT is the perfect solution.

 Features

• 32 x 32 channels of Dante
• AES67-enabled Dante endpoint
• 12 mic/line level inputs with AEC, 8 mic/line level outputs
• Gigabit Ethernet port
• RS-232 serial port
• 4-pin GPIO
• 2-line OLED display with capacitive-touch navigation
• Rack mountable (1RU)
• System configuration and control via Ethernet
• Internal universal power supply
• SIP VoIP interface via RJ-45 connector
• Standard FXO telephone interface via RJ-11 connector
• Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, and delay
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
