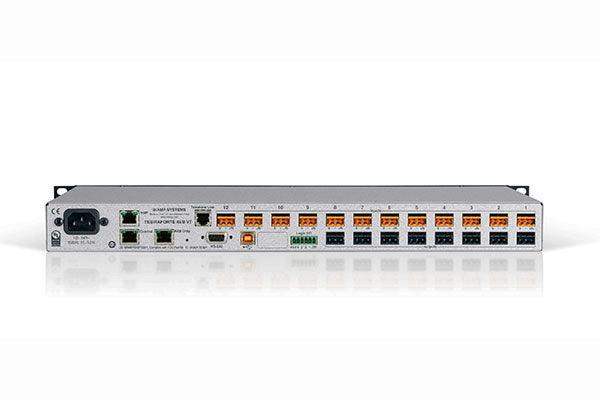

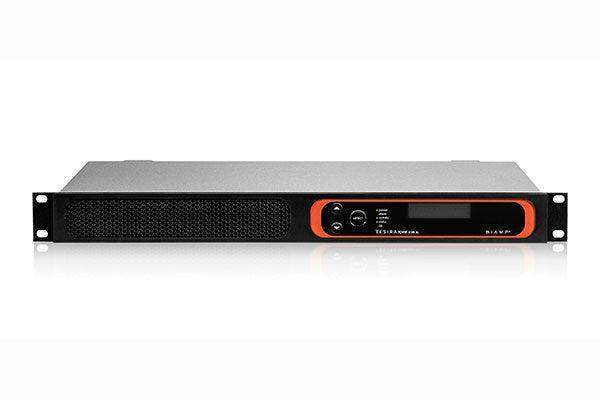

Biamp TesiraFORTÉ AVB VT Fixed I/O DSP - 911.0450.900

The TesiraFORTÉ® AVB VT is a Digital Signal Processor (DSP) that comes with 12 analog inputs and 8 analog outputs. It is equipped with Acoustic Echo Cancellation (AEC) technology, which is present in all 12 inputs. The device also has up to 8 channels of configurable USB audio, a 2-channel VoIP interface, and a standard FXO telephone interface. With its USB audio, TesiraFORTÉ can interface with USB audio hosts and can be used with advanced conferencing solutions available today. The TesiraFORTÉ AVB VT is designed to facilitate digital audio networking using Audio Video Bridging (AVB). It can function independently or work in conjunction with other TesiraFORTÉ AVB devices, Tesira DSPs, amplifiers, expanders, and controllers. The TesiraFORTÉ AVB VT offers a wide range of audio processing features, including AEC technology, signal routing and mixing, equalization, filtering, dynamics, and delay. Additionally, it provides control, monitoring, and diagnostic tools, which can all be configured using the Tesira configuration software. This audio solution is ideal for rooms that require high-quality audio, which includes VoIP, voice lift, mix-minus, and AEC, like conference rooms or distance learning environments.

• 128 x 128 channels of AVB
• 12 mic/line level inputs with AEC, 8 mic/line level outputs
• Gigabit Ethernet port
• RS-232 serial port
• 4-pin GPIO
• 2-line OLED display with capacitive-touch navigation
• Rack mountable (1RU)
• System configuration and control via Ethernet
• Internal universal power supply
• SIP VoIP interface via RJ-45 connector
• Standard FXO telephone interface via RJ-11 connector
• Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, and delay
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

Conference Room Designer

Data Sheet
