Biamp TesiraCONNECT TC-5D Room Connection Device with Dante - 911.0087.900
Biamp TesiraCONNECT TC-5D Room Connection Device with Dante - 911.0087.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp TesiraCONNECT TC-5D Room Connection Device with Dante - 911.0...
Product Overview
The Biamp TesiraCONNECT TC-5D is a 5-port AVB-capable PoE+ network device that bridges AVB and Dante media networks in Tesira systems. As a room connection device and media bridge for conference rooms and combinable rooms, it simplifies integration of Dante and AVB devices in boardrooms and meeting spaces.
Product Description
The TesiraCONNECT TC-5D is a 5-port AVB-capable PoE+ network device that can be configured as a Dante or AVB interface to a Tesira system. While it retains all the features of the original TesiraCONNECT, the TC-5D also provides the ability to bridge AVB and Dante media networks, enabling easy integration of Dante devices into a Tesira AVB-only system, or Tesira AVB devices into a Tesira Dante-only system. In Tesira software it appears as an infrastructure device; as a network switch it works out of the box, and as a media bridge it is included in the Tesira layout and assigned a Unit ID. It is primarily intended for limited-scope systems such as conference rooms and combinable rooms, with up to four TC-5 and/or TC-5D devices per media network cluster.
Key Features

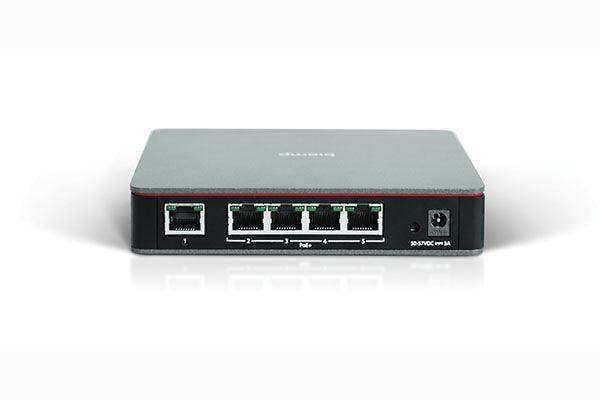

- Five gigabit ports — Five 1 Gbps RJ-45 ports provide network connectivity.
- PoE+ power — Four ports support PoE+ power (IEEE 802.3at Class 4, 30W).
- AVB and Dante bridging — The device can bridge AVB and Dante media networks for mixed-protocol integration.
- Plug-and-play switching — It works out of the box as an AVB network switch with no configuration required.

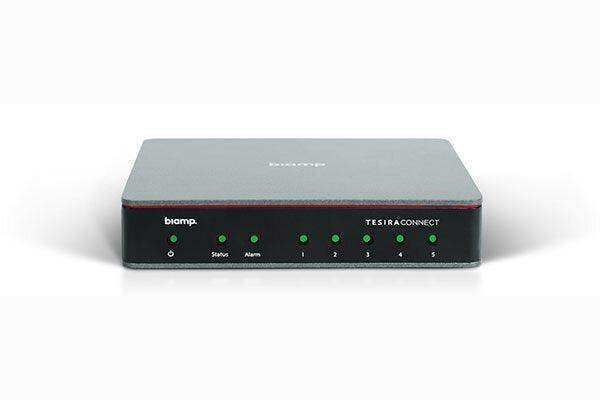

- Status indication — Front-panel LEDs indicate port connections, device status, and fault conditions.
- SageVue monitoring — Fault reporting and device monitoring are supported in SageVue.
- Daisy-chaining — Up to four TesiraCONNECT devices can be used per media network cluster.
Typical Applications
- Conference room
- Boardroom
- Multi-purpose room
- Commercial meeting space
Technical Specifications
| Type | 5-port AVB-capable PoE+ network device with AVB/Dante bridging |
| Ports | Five 1 Gbps RJ-45 |
| PoE | Four ports PoE+ (IEEE 802.3at Class 4, 30W) |
| Bridging | AVB and Dante media networks |
| Max Devices per Cluster | Four TC-5 and/or TC-5D |
| Monitoring | SageVue fault reporting and device monitoring |
| Power | External universal power supply |
| Compliance | CE marked, UL listed, RoHS compliant |
| Warranty | Biamp 5-year warranty |
Frequently Asked Questions
What does the TC-5D add over the TC-5?
It retains all TC-5 features and adds the ability to bridge AVB and Dante media networks.
Does it require configuration?
As a network switch it works out of the box; as a media bridge it must be included in the Tesira layout and assigned a Unit ID.
How many can be used together?
Up to four TesiraCONNECT TC-5 and/or TC-5D devices can be used within a single media network cluster.
Is it covered by warranty?
Yes. It is covered by Biamp's five-year warranty.
