Biamp Tesira SERVER-IO Configurable I/O DSP - 911.0278.900
Product Overview
The Tesira SERVER-IO is a rack-mount, configurable I/O digital signal processor for large-scale commercial audio systems and networked AV integration. It is factory configured with one DSP-2 card and scales to a high channel count for conference room, auditorium, and multi-room deployments. As a networked DSP it serves as a central processing core or works with Tesira expanders to build a scalable audio network.
Product Description

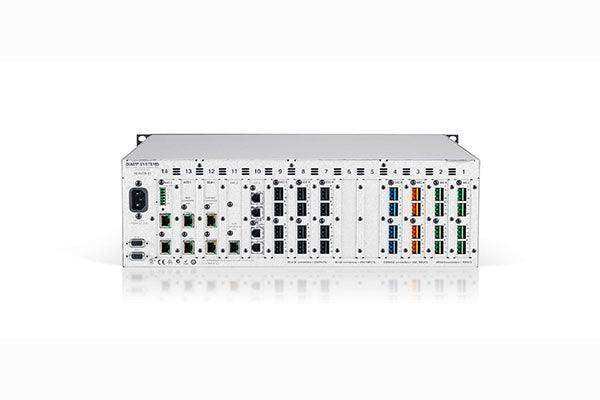

The SERVER-IO accepts up to three DSP-2 processing cards and up to three audio networking cards, in any combination of one AVB-1, up to two SCM-1 CobraNet, and up to two DAN-1 Dante cards. It supports up to 12 standard Tesira I/O cards for up to 48 channels of analog audio, including mic/line, VoIP, and FXO telephone interfaces, and delivers up to 420 x 420 channels of digital I/O over AVB. SpeechSense and AmbientSense algorithms support advanced paging and ambient-aware processing, and configuration and control are handled over Ethernet or serial through Tesira software. The 3RU chassis includes a front-panel OLED display and is UL listed, CE marked, and RoHS compliant.
Key Features
- Scalable DSP — Supports up to three DSP-2 cards to grow processing capacity as system demands increase.
- High channel count — Handles up to 12 I/O cards for up to 48 channels of analog audio in a single chassis.
- AVB networking — Provides up to 420 x 420 channels of digital I/O over AVB for large networked systems.
- Dante and CobraNet options — Optional 64 x 64 Dante and 32 x 32 CobraNet networking integrate the core into existing infrastructure.
- Advanced algorithms — SpeechSense and AmbientSense processing support intelligent paging and ambient-aware audio.

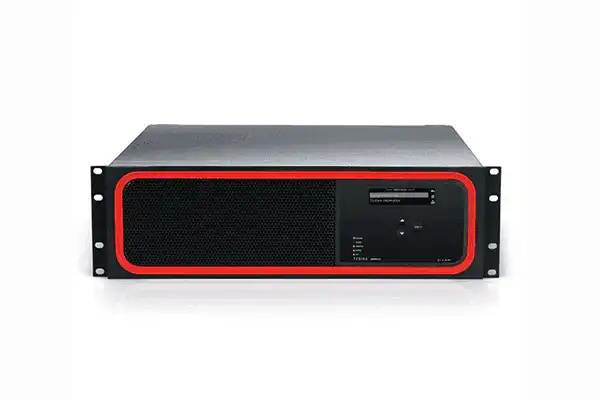

- Rack-mount chassis — The 3RU chassis with front-panel OLED display fits standard equipment racks for clean integration.
- Standards compliance — CE marked, UL listed, and RoHS compliant for commercial installation.
- Warranty — Covered by the Biamp 5-year warranty.
Typical Applications
- Auditorium
- Multi-purpose room
- Government space
- Conference room
- Commercial meeting space
Technical Specifications
| DSP cards | Up to 3 DSP-2 cards (1 factory-installed) |
| Analog I/O | Up to 12 I/O cards, up to 48 channels |
| AVB I/O | Up to 420 x 420 channels |
| Dante | Optional 64 x 64 |
| CobraNet | Optional 32 x 32 |
| Control | Ethernet or serial; front-panel OLED |
| Form factor | Rack mountable (3RU) |
| Compliance | CE marked, UL listed, RoHS compliant |
| Warranty | Biamp 5-year warranty |
Competitor Comparison
| Criteria | Biamp | QSC Q-SYS Core | Symetrix Radius NX |
|---|---|---|---|
| Audio networking | Native AVB plus Dante/AES67 endpoints on the same platform. | Q-SYS Core families center on a Dante/Q-LAN ecosystem. | Radius NX builds on Dante/AES67 routing. |
| Acoustic echo cancellation | Per-channel AEC assignable to any input for conferencing. | AEC available through software feature licensing. | AEC offered on AEC-specific Radius models. |
| Conferencing deployment | Biamp Launch automates room tuning for fast, repeatable setup. | Setup handled in Q-SYS Designer with manual tuning. | Configured in Composer with manual DSP design. |
| USB / UC interface | Built-in USB audio for direct soft-codec connection. | USB bridging via add-on or networked endpoints. | USB handled through xIO or partner endpoints. |
| VoIP / telephony | Integrated SIP VoIP and FXO options on select models. | SIP available through software upgrade. | SIP/VoIP via dedicated interface cards. |
| Warranty | Biamp 5-year warranty. | QSC warranty terms vary by product line. | Symetrix offers its own limited warranty. |
Frequently Asked Questions
How many channels can the SERVER-IO support?
It supports up to 12 I/O cards for up to 48 channels of analog audio, plus up to 420 x 420 channels of digital I/O over AVB.
Which networking protocols are supported?
AVB is supported natively, with optional Dante (64 x 64) and CobraNet (32 x 32) cards.
How is it configured?
Configuration and control are performed over Ethernet or serial using Tesira software.
How much rack space does it need?
The chassis occupies 3RU in a standard equipment rack.
What is the warranty?
It is covered by the Biamp 5-year warranty.
Explore the full range in the Biamp collection at Creation Networks.
