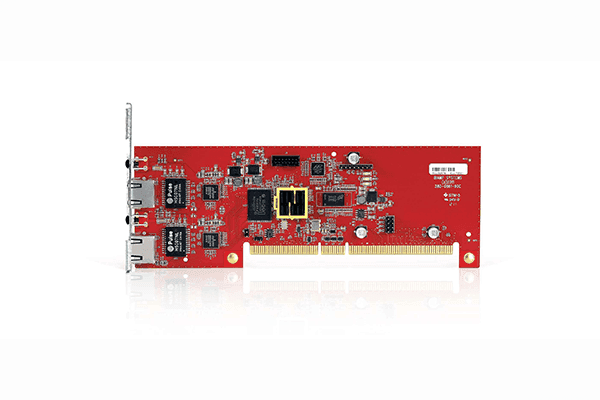

Biamp Tesira SCM-1 CK Digital Audio Networking Card - 909.0326.900
Biamp Tesira SCM-1 CK Digital Audio Networking Card - 909.0326.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Tesira SCM-1 CK Digital Audio Networking Card - 909.0326.900
Product Overview
The Biamp Tesira SCM-1 is a modular digital audio networking card for use with Tesira SERVER and SERVER-IO devices. It allows a Tesira system to send and receive digital audio using the CobraNet networking standard. This makes it a strong fit as a CobraNet networking card, a Tesira audio transport card, and a legacy system integration card. Each SCM-1 card supports 32 x 32 channels of digital audio interconnectivity.
Product Description
The SCM-1 CobraNet card allows a Tesira system to share audio with Biamp Audia and Vocia systems as well as other devices operating on a CobraNet network, providing 32 x 32 channels of digital audio interconnectivity. Explicit CobraNet input and output blocks are provided in Tesira software for straightforward signal routing. Dual RJ-45 connections support primary and secondary networks, and the SCM-1 can be installed in conjunction with DAN-1 and AVB-1 cards. System configuration and control are handled via Ethernet. The card is RoHS compliant and AES grounded, and is covered by Biamp Systems' five-year warranty.
Key Features
- CobraNet Networking — The card provides 32 x 32 channels of digital audio over CobraNet.
- Legacy Integration — It shares audio with Biamp Audia and Vocia systems and other CobraNet devices.
- Redundant Connections — Dual RJ-45 connections support primary and secondary networks.
- Software Routing — Explicit CobraNet input and output blocks appear in Tesira software.
- Co-Installable — It can be installed alongside DAN-1 and AVB-1 cards.
- Ethernet Control — System configuration and control are handled via Ethernet.
Typical Applications
- Commercial Meeting Space — Bridges Tesira to existing CobraNet audio systems.
- Auditorium — Shares audio across Audia and Vocia systems in large venues.
- Government Space — Integrates Tesira with established CobraNet infrastructure.
Technical Specifications
| Channel Capacity | 32 x 32 channels over CobraNet |
| Interoperability | Shares audio with Audia, Vocia, and other CobraNet devices |
| Connections | Dual RJ-45 for primary and secondary |
| Software | Explicit CobraNet input and output blocks in Tesira software |
| Compatibility | Tesira SERVER and SERVER-IO; co-installable with DAN-1 and AVB-1 |
| Compliance | RoHS compliant; AES grounded |
| Warranty | Biamp Systems five-year warranty |
Frequently Asked Questions
How many channels does the SCM-1 support?
It supports 32 x 32 channels of digital audio interconnectivity over CobraNet.
What systems can it share audio with?
It shares audio with Biamp Audia and Vocia systems and other CobraNet network devices.
Which devices is it compatible with?
It is for use with Tesira SERVER and SERVER-IO devices.
Can it be installed with other networking cards?
Yes. It can be installed in conjunction with DAN-1 and AVB-1 cards.
