Biamp Tesira AVB-1 CK Digital Audio Networking Card - 909.0334.900
Product Overview

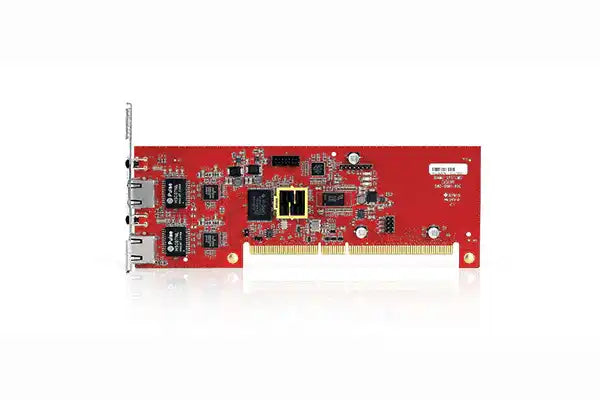

The Biamp Tesira AVB-1 is a modular digital audio networking card for use with Tesira SERVER and SERVER-IO devices. It allows a Tesira system to send and receive digital audio over an Ethernet network using AVB-enabled switches. This makes it a strong fit as an AVB networking card, a Tesira audio transport card, and a digital audio interconnect card. AVB/TSN is an open standard protocol compliant with IEEE standards.
Product Description
The AVB-1 enables up to 420 x 420 channels of interconnectivity over AVB from any other compliant device, and Tesira uses AVB/TSN as the interconnect between server devices and remote expander devices. The card is IEEE standards based, supporting 802.1AS, 802.1Q, 1722, and 1722.1. Explicit AVB input and output blocks are provided in Tesira software for straightforward signal routing. Dual RJ-45 connections support primary and secondary redundant networks. The AVB-1 can be installed in conjunction with DAN-1 and SCM-1 cards, and system configuration and control are handled via Ethernet. The card is RoHS compliant and AES grounded, and is covered by Biamp Systems' five-year warranty.
Key Features
- High Channel Count — The card supports up to 420 x 420 channels of digital I/O over AVB/TSN.
- IEEE Standards Based — It supports 802.1AS, 802.1Q, 1722, and 1722.1.
- Redundant Networking — Dual RJ-45 connections support primary and secondary redundant networks.
- Software Routing — Explicit AVB input and output blocks appear in Tesira software.
- Co-Installable — It can be installed alongside DAN-1 and SCM-1 cards.
- Ethernet Control — System configuration and control are handled via Ethernet.
Typical Applications
- Commercial Meeting Space — Networks Tesira audio across distributed AV systems.
- Auditorium — High channel counts support large venue audio transport.
- Broadcast Studio — Redundant AVB networking supports reliable audio routing.
Technical Specifications
| Channel Capacity | Up to 420 x 420 channels over AVB/TSN |
| Standards | IEEE 802.1AS, 802.1Q, 1722, 1722.1 |
| Connections | Dual RJ-45 for primary and secondary redundant networks |
| Software | Explicit AVB input and output blocks in Tesira software |
| Compatibility | Tesira SERVER and SERVER-IO; co-installable with DAN-1 and SCM-1 |
| Compliance | RoHS compliant; AES grounded |
| Warranty | Biamp Systems five-year warranty |
Frequently Asked Questions
How many channels does the AVB-1 support?
It supports up to 420 x 420 channels of digital I/O over AVB/TSN.
Which devices is it compatible with?
It is for use with Tesira SERVER and SERVER-IO devices.
Does it support redundant networks?
Yes. Dual RJ-45 connections support primary and secondary redundant networks.
Can it be installed with other networking cards?
Yes. It can be installed in conjunction with DAN-1 and SCM-1 cards.
