Biamp Tesira EEC-4 CK 4-Channel Expander Input Card with AEC - 909.0340.900
Biamp Tesira EEC-4 CK 4-Channel Expander Input Card with AEC - 909.0340.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Tesira EEC-4 CK 4-Channel Expander Input Card with AEC - 909....
Product Overview

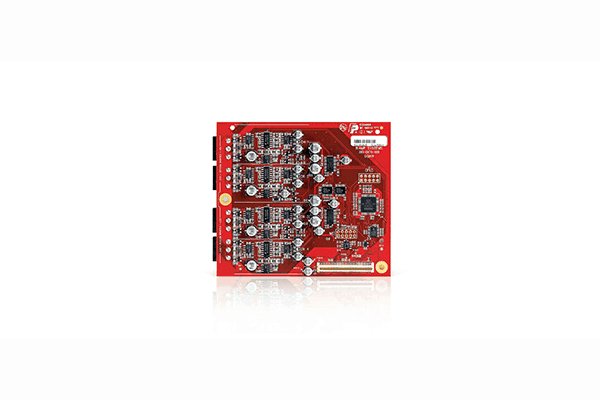

The Biamp Tesira EEC-4 is an optional expander card that installs in the Tesira EX-MOD modular expander. Each EEC-4 provides four channels of mic or line level audio input with Acoustic Echo Cancellation (AEC). The inputs are electrically balanced and provided on plug-in barrier strip connectors. The card extends the input capacity of a Tesira system for conferencing and installed audio.
Product Description
The EEC-4 adds four balanced mic or line level inputs with AEC to an EX-MOD chassis, with software control of each input that includes gain with a clip indicator, 48V phantom power, mute, level, and signal invert. Input gain ranges from 0 to 66 dB and is adjustable in 6 dB increments, while the fader range spans -100 dB to +12 dB. A signal-invert option supports reverse polarity. The card is RoHS compliant and AES grounded. It is covered by Biamp's five-year warranty.
Key Features
- Four AEC Inputs — The card provides four channels of balanced mic or line level input with Acoustic Echo Cancellation.
- Barrier Strip Connectors — Inputs are provided on plug-in barrier strip connectors.
- Adjustable Gain — Gain ranges from 0 to 66 dB, adjustable in 6 dB increments, with a clip indicator.
- Phantom Power — Each input offers 48V phantom power, mute, level, and signal invert.
- EX-MOD Compatible — The card installs in the Tesira EX-MOD modular expander.
- Five-Year Warranty — The card is covered by Biamp's five-year warranty.
Typical Applications
- Conference room
- Boardroom
- Commercial meeting space
- Training room
Technical Specifications
| Card Type | 4-channel expander input card with AEC for Tesira EX-MOD |
| Channels | 4 balanced mic or line level inputs |
| Echo Cancellation | Acoustic Echo Cancellation (AEC) |
| Gain Range | 0 - 66 dB, adjustable in 6 dB increments |
| Phantom Power | 48V |
| Fader Range | -100 dB to +12 dB |
| Connectors | Plug-in barrier strip |
| Compliance | RoHS compliant, AES grounded |
| Warranty | Biamp five-year warranty |
Frequently Asked Questions
Where does the EEC-4 install?
It installs in the Tesira EX-MOD modular expander.
Does it include echo cancellation?
Yes. Each of the four channels includes Acoustic Echo Cancellation.
Does it provide phantom power?
Yes. Each input offers 48V phantom power.
