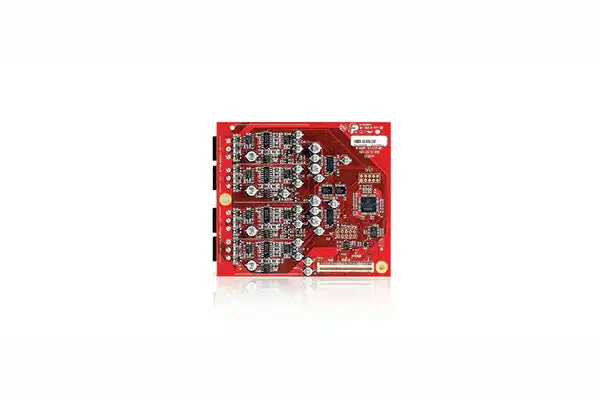

Biamp Tesira EIOC-4 CK 4-Channel Expander Input/Output Card - 909.0332.900
Biamp Tesira EIOC-4 CK 4-Channel Expander Input/Output Card - 909.0332.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Tesira EIOC-4 CK 4-Channel Expander Input/Output Card - 909.0...
Product Overview
The Biamp Tesira EIOC-4 is a 4-channel expander input/output card that installs in the Tesira EX-MOD and all Tesira amplifiers. Each card provides two channels of mic or line level audio input and two channels of mic or line level audio output. Inputs and outputs are electrically balanced on plug-in barrier strip connectors. It adds analog I/O capacity to a Tesira system.
Product Description
The EIOC-4 is an optional expander card for the Tesira EX-MOD and Tesira amplifiers. Software control of each input includes gain with clip indicator, +48 V phantom power, mute, level, and signal invert; control of each output includes mute, level, signal invert, and full-scale output reference. Input gain is adjustable from 0 to 66 dB in 6 dB increments, and a selectable full-scale output reference level optimizes interfacing and performance. The card is RoHS compliant and AES grounded. Backed by Biamp's five-year warranty.
Key Features
- Two balanced inputs — Provides two channels of balanced mic or line level input with +48 V phantom power.
- Two balanced outputs — Provides two channels of balanced mic or line level output on plug-in barrier strip connectors.
- Adjustable input gain — Offers 0 to 66 dB of gain in 6 dB increments with a clip indicator.
- Selectable output reference — Full-scale output reference level is selectable (24, 18, 12, 6, 0, and -31 dBu).
- Five-year warranty — Covered by Biamp's five-year warranty.
Technical Specifications
| Type | 4-channel expander input/output card |
| Compatibility | Tesira EX-MOD and all Tesira amplifiers |
| Inputs | 2 channels balanced mic/line, +48 V phantom power, 0-66 dB gain in 6 dB steps |
| Outputs | 2 channels balanced mic/line |
| Output Reference | Selectable 24, 18, 12, 6, 0, -31 dBu |
| Connectors | Plug-in barrier strip |
| Compliance | RoHS compliant, AES grounded |
| Warranty | Biamp five-year warranty |
