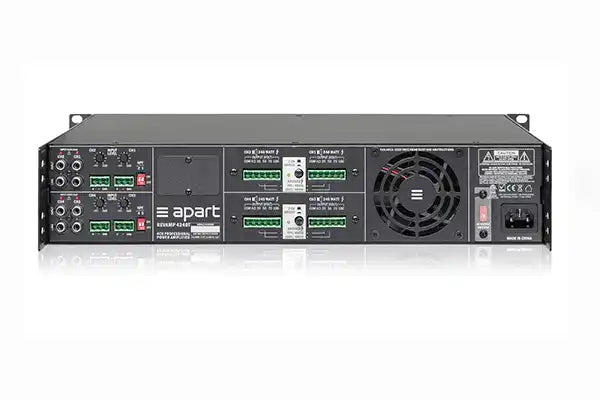

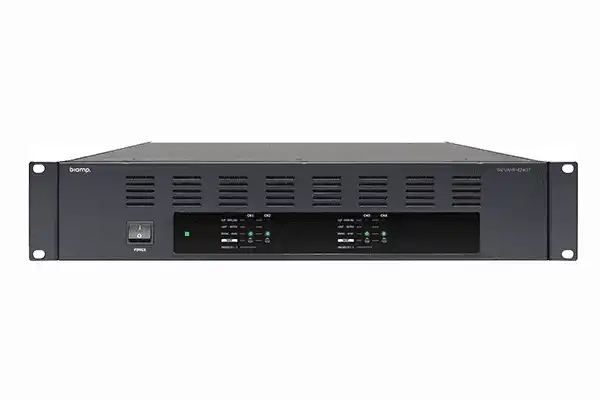

Biamp Commercial REVAMP4240T 4-channel 100V bridgeable digital power amplifier, 4 x 240W - 911.0657.900

Biamp SKU: 911.0657.900
No reviews
Price:
$1,816.00

Description

The new all-purpose REVAMP2150 is a professional 2-channel digital power amplifier with 2 x 165 watts dynamic output power @ 4 ohms, that can easily be bridged into a powerful 330 watts @ 8 ohms single amplifier. This class-D amplifier is convection cooled without built-in fans which implies that the amplifier is completely noiseless and dust-free. The unit has multiple speaker and amp protection circuits built inside for DC protect, over current protect, over temperature protect and protection against input overload. During the configuration of the input gain, the rear clip LED indicator is very useful and handy for a fast and easy installation. Versatile connectivity due to balanced and unbalanced inputs on euroblock or cinch, pass-through outputs on cinch and loudspeaker outputs on euroblock. Housed in a straightforward 1U slim and lightweight design without front control our REVAMP2150 is an amplifier unlike any other in the small and mid-sized fixed install audio market.

Additional Information

dynamic output power 4 ohms in watts 4 x 240
dynamic output power 8 ohms in watts 4 x 120
dynamic output power bridged 8 ohms in watts 2 x 480
output power RMS 100 volts in watts 4 x 240
minimum impedance load per channel in ohms 4
power consumption (max) in watts 1050
height- rack units (1U=44 mm) in U 2
depth (incl front) in mm 338
power supply technology 2 x switching mode power supply
output channels 4
line input unbalanced 4
power amp topology class-D
cooling system fan
applicable low impedance yes
RMS output power 4 ohms in watts 4 x 240
RMS output power 8 ohms in watts 4 x 120
output power RMS bridged 8 ohms in watts 2 x 480
output power RMS bridged 100 volts in watts 2 x 480
minimum impedance load bridged per channel in ohms 8
rack mounting 19" (483 mm wide)
depth (build in) in mm 330
power supply 115 - 230 VAC
output voltage tappings 100 - 70 - 50 - 35 volts - 4 ohms
line input balanced 4
channel separation > 68 dB @ 1 kHz
frequency response (in Hz) 50 - 20 k
applicable in 100V yes
Net weight product (kg) 16.70
