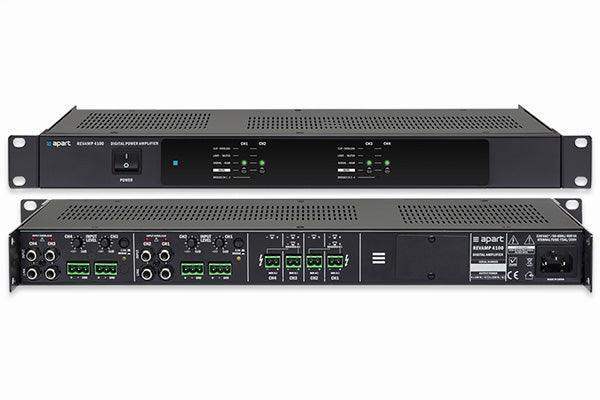

Biamp Commercial REVAMP4100 Quad Digital amplifier, convection cooled - 911.0655.900
Biamp Commercial REVAMP4100 Quad Digital amplifier, convection cooled - 911.0655.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Commercial REVAMP4100 Quad Digital amplifier, convection cool...
Product Overview
The Biamp Commercial REVAMP4100 is a professional 4-channel digital amplifier built with high-power Class-D amplifier modules. It includes extended speaker and amplifier protection circuits for DC protection, over-current protection, over-temperature protection, and protection against input overload. The four individual amplifier channels can be bridged into two stereo channels.
Product Description
Designed for fixed installations, the REVAMP4100 delivers 4 x 100 watts RMS at 4 ohms, with each pair of channels bridgeable for higher power. It is convection-cooled and housed in a 19-inch rack-mountable chassis. The amplifier accepts balanced and unbalanced line inputs and uses a switching-mode power supply with a wide 100-254 VAC operating range. This is a low-impedance amplifier and is not rated for 70V operation.
Key Features
- 4-channel output — The REVAMP4100 provides four individual amplifier channels of 100 watts RMS at 4 ohms.
- Bridgeable — The four channels can be bridged into two stereo channels for higher power.
- Class-D modules — High-power Class-D amplifier modules provide efficient operation.
- Protection circuits — DC, over-current, over-temperature, and input-overload protection safeguard the system.
- Convection cooling — A convection-cooled design supports reliable operation.
- Wide-range supply — A switching-mode power supply operates from 100 to 254 VAC.
Typical Applications
The REVAMP4100 suits commercial meeting spaces, multi-purpose rooms, and broadcast studios requiring multi-channel low-impedance amplification.
Technical Specifications
| Output channels | 4 (bridgeable to 2 stereo) |
| RMS output power (4 ohms) | 4 x 100 watts |
| RMS output power (8 ohms) | 4 x 50 watts |
| Dynamic output power (4 ohms) | 4 x 110 watts |
| RMS output bridged (8 ohms) | 2 x 200 watts |
| Minimum impedance per channel | 4 ohms |
| Minimum impedance bridged | 8 ohms |
| Power amp topology | Class-D |
| Line inputs | 4 balanced, 4 unbalanced |
| Channel separation | > 65 dB @ 1 kHz |
| Frequency response | 20 Hz - 22 kHz |
| 70V operation | No (low impedance) |
| Power supply | 100 - 254 VAC, switching mode |
| Power consumption (max) | 500 watts |
| Cooling | Convection |
| Mounting | 19-inch rack, 1U (1.73 in high) |
| Weight | 7.72 lbs |
Frequently Asked Questions
How many channels does the REVAMP4100 have?
It has four individual amplifier channels that can be bridged into two stereo channels.
How much power does it deliver?
It delivers 4 x 100 watts RMS at 4 ohms.
Does it support 70V systems?
No. The REVAMP4100 is a low-impedance amplifier and is not rated for 70V operation.
