Biamp Commercial REVAMP2120T 2-channel 100V bridgeable digital power amplifier, 2 x 120W - 911.0653.900
Biamp Commercial REVAMP2120T 2-channel 100V bridgeable digital power amplifier, 2 x 120W - 911.0653.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Commercial REVAMP2120T 2-channel 100V bridgeable digital powe...
Product Overview

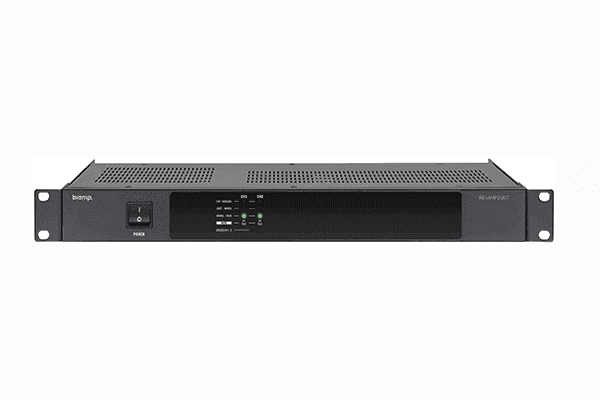

The Biamp Commercial REVAMP2120T is a professional 2-channel digital power amplifier delivering 2 x 120 watts at 100V or at 4 ohms, and it can be bridged into a single 240-watt amplifier at 100V or 8 ohms. This Class-D amplifier has a galvanically separated toroidal output transformer to guard against external influences and disturbances. The convection-cooled design has no internal fan, keeping the amplifier silent and dust-free.
Product Description
The REVAMP2120T is built into a slim 1U chassis without front controls, making it a versatile all-round amplifier for fixed installations. A rear clip LED indicator assists with input-gain configuration during setup, and multiple input and link connection options ease installation. It supports both 70V/100V constant-voltage operation and low-impedance loads down to 4 ohms, with output voltage tappings of 100, 70, 50, and 35 volts. The maintenance-free, fanless design is intended to be the installer's preferred choice.
Key Features
- 2 x 120W output — The amplifier delivers 2 x 120 watts at 100V or 4 ohms and bridges to 240W at 100V or 8 ohms.
- Class-D topology — A Class-D design provides efficient amplification in a slim 1U chassis.
- Toroidal output transformer — A galvanically separated toroidal transformer guards against external disturbances.
- Convection cooling — The fanless, convection-cooled design keeps the amplifier silent and dust-free.
- Flexible connectivity — Multiple input and link connection options simplify installation.
- Clip LED indicator — A rear clip LED indicator aids input-gain configuration during setup.
- Five-year warranty — The REVAMP2120T is covered by Biamp Systems' five-year warranty.
Typical Applications
The REVAMP2120T suits commercial meeting spaces, multi-purpose rooms, and government spaces using 70V/100V or low-impedance distributed audio.
Technical Specifications
| Output channels | 2 |
| RMS output power (4 ohms) | 2 x 120 watts |
| RMS output power (8 ohms) | 2 x 60 watts |
| RMS output bridged (8 ohms) | 240 watts |
| RMS output 70V | 2 x 120 watts |
| Output voltage tappings | 100 / 70 / 50 / 35 volts - 4 ohms |
| Minimum impedance per channel | 4 ohms |
| Minimum impedance bridged | 8 ohms |
| Power amp topology | Class-D |
| Line inputs | 2 balanced, 2 unbalanced |
| Channel separation | > 65 dB @ 1 kHz |
| Frequency response | 50 Hz - 20 kHz |
| Power supply | 115 - 230 VAC, switching mode |
| Power consumption (max) | 300 watts |
| Cooling | Convection |
| Mounting | 19-inch rack, 1U (1.73 in high) |
| Weight | 13.45 lbs |
| Warranty | Biamp Systems five-year warranty |
Frequently Asked Questions
How much power does the REVAMP2120T deliver?
It delivers 2 x 120 watts at 100V or 4 ohms, and can be bridged to 240 watts at 100V or 8 ohms.
Does it support 70V/100V systems?
Yes. It supports 70V/100V operation with output voltage tappings of 100, 70, 50, and 35 volts, as well as low-impedance loads down to 4 ohms.
Does the amplifier use a cooling fan?
No. It is convection-cooled with no internal fan, keeping it silent and dust-free.
