Biamp Commercial REVAMP1120T 1-channel 100V digital power amplifier, 1 x 120W - 911.0651.900
Biamp Commercial REVAMP1120T 1-channel 100V digital power amplifier, 1 x 120W - 911.0651.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Commercial REVAMP1120T 1-channel 100V digital power amplifier...
Product Overview
The Biamp Commercial REVAMP1120T is a single-channel professional power amplifier delivering 1 x 120 watts at 100 volts or at 4 ohms. This Class-D amplifier has a built-in galvanically separated toroidal output transformer that keeps it free of external influences and disturbances. It is convection-cooled with no cooling fan, making it reliable, maintenance-free, silent, and dust-free.
Product Description

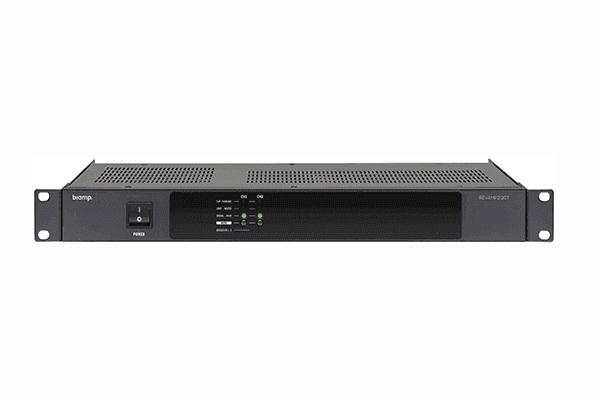

Housed entirely in a 1U chassis without front controls, the REVAMP1120T is suited to the small and mid-sized fixed-install audio market. A rear clip LED indicator on the input gain, together with multiple input and link connection options, makes installation straightforward. The amplifier supports 70V/100V constant-voltage operation as well as low-impedance loads down to 4 ohms, with output voltage tappings of 100, 70, 50, and 35 volts.
Key Features
- 1 x 120W output — The amplifier delivers a single channel of 120 watts at 100V or 4 ohms.
- Class-D topology — A Class-D design provides efficient amplification in a compact 1U chassis.
- Toroidal output transformer — A galvanically separated toroidal transformer keeps the amplifier free of disturbances.
- Convection cooling — The fanless design is silent, dust-free, and maintenance-free.

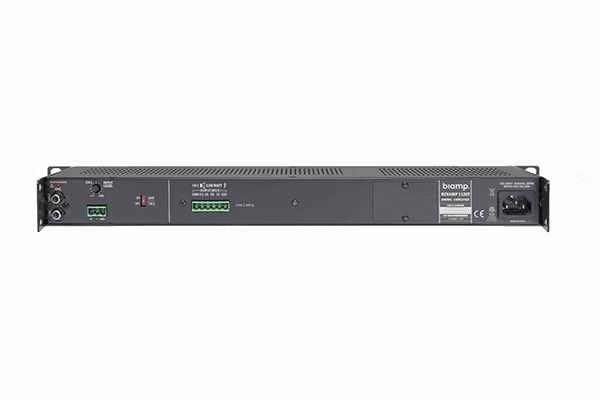

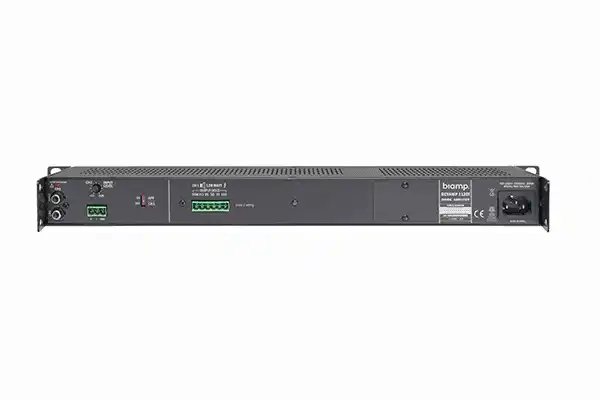

- Flexible connectivity — Multiple input and link connection options simplify installation.
- Clip LED indicator — A rear clip LED on the input gain assists with setup.
- Five-year warranty — The REVAMP1120T is covered by Biamp Systems' five-year warranty.
Typical Applications
The REVAMP1120T suits commercial meeting spaces, multi-purpose rooms, and government spaces requiring a single-channel 70V/100V or low-impedance amplifier.
Technical Specifications
| Output channels | 1 |
| RMS output power (4 ohms) | 120 watts |
| RMS output power (8 ohms) | 60 watts |
| RMS output 70V | 120 watts |
| Output voltage tappings | 100 / 70 / 50 / 35 volts - 4 ohms |
| Minimum impedance per channel | 4 ohms |
| Power amp topology | Class-D |
| Channel separation | > 65 dB @ 1 kHz |
| Frequency response | 50 Hz - 20 kHz |
| Power supply | 115 - 230 VAC, switching mode |
| Power consumption (max) | 200 watts |
| Cooling | Convection |
| Mounting | 19-inch rack, 1U (1.73 in high) |
| Weight | 10.14 lbs |
| Warranty | Biamp Systems five-year warranty |
Frequently Asked Questions
How much power does the REVAMP1120T deliver?
It delivers a single channel of 120 watts at 100 volts or 4 ohms.
Does it support 70V/100V systems?
Yes. It supports 70V/100V operation with output voltage tappings of 100, 70, 50, and 35 volts, plus low-impedance loads down to 4 ohms.
Is it fan-cooled?
No. It is convection-cooled with no fan, so it operates silently and stays dust-free.
Order the Commercial REVAMP1120T and the full Biamp lineup at Creation Networks.
