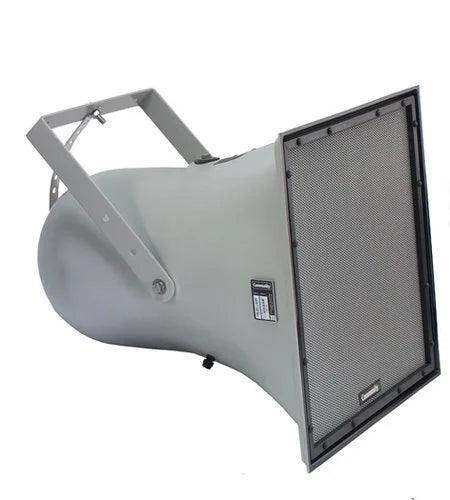

Biamp R1-66Z 12" 2-Way Horn-Loaded Speaker with 60x60 Dispersion, Weather Resistant, Gray

The Community R1-66Z two-way full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensures both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R1 loudspeakers are available in two versions. The standard version is weather-ready, with a WeatherStop™ grille and light grey finish. The BNG version, with black exterior and no grille, is more suitable for indoor applications. A weather-resistant mounting yoke is included.

Community R1-66Z Features:

• Weather-resistant, all-fiberglass enclosure
• Weather-treated drivers and crossovers
• Corrosion-resistant zinc-rich epoxy dual-layer powdercoated steel grille and yoke
• Pattern control to below 500 Hz
• High efficiency
• Integral mounting points
• High power passive crossover
• High-fidelity, full-range reproduction of music andspeech
• Application-specific coverage pattern
• Optional “indoor” version available with a blackenclosure and no grille (model R1-64BNG)
• Five-year product warranty / Fifteen-year enclosure warranty

Community R1-66Z Specifications:

• Loudspeaker Type: 2-way horn loaded coaxial,weather-resistant
• Operating Range:
  • 90 Hz to 16 kHz
  • 110 Hz to 10 kHz (+/- 4 dB)
• Max Input Ratings: 200W continuous, 500W program, 40volts RMS, 89 volts momentary peak
• Recommended Power Amplifier: 420W to 600W @ 8Ohms
• Sensitivity (1W/1m):
  • 105 dB SPL (100 Hz to 16 kHz 1/3 octave bands)
  • 106 dB SPL (250 Hz to 4 kHz speech range)
• Maximum Output: 128 dB SPL / 135 dB SPL (peak)
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 5.7 Ohms @ 230 Hz
• Nominal –6dB Beamwidth:
  • 60° H (+18° / -20°, 1 kHz to 16 kHz)
  • 60° V (+13° / -16°, 1 kHz to 16 kHz)
  • 100° H x 100° V (400 Hz)
• Axial Q / DI: 20.3 / 13.1, 1 kHz to 16 kHz
• Crossover Frequency: 1.2 kHz
• Recommended Signal Processing: 90 Hz high passfilter
• Drivers:
  • LF: 1x 12” weather-treated, Ferrofluid-cooled
  • HF: 1x 1” exit, titanium diaphragm
• Driver Protection: PowerSense™ DDP
• Input Connection: 12 foot (4 m) SJOW #16 gauge
• Controls: None
• Enclosure: Hand-laminated fiberglass, lightgrey gelcoat
• Mounting/Rigging Provisions: (5) 1/2-13 riggingpoints
• Grille: 3-layer WeatherStop™, light grey(Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, wovenpoly mesh)
• Environmental Performance: IEC529 IP55W ratingwith a minimum 5-degree downward aiming angle
• Required Accessories: 90 Hz high pass filter
• Supplied Accessories: SSYR1 yoke bracket, lightgrey
• Optional Accessories: TRC400 400-watt70/100/140-volt transformer
• Dimensions:
  • Height: 24.75 inches (629 mm)
  • Width: 24.75 inches (629 mm)
  • Depth: 29.75 inches (756 mm)
• Weight (without yoke): 47.5 lbs (21.5 kg)
• Weight (with yoke): 55.5 lbs (25.2 kg)
