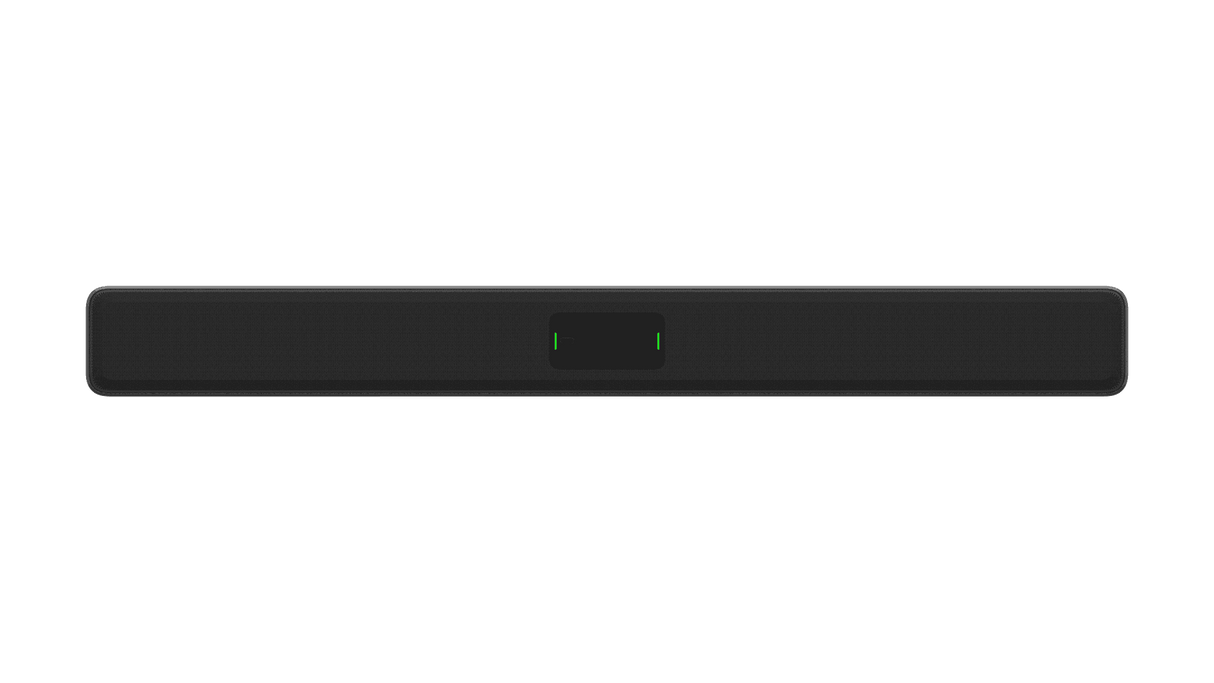

Biamp Parlé VBC 2500a Conferencing Video Bar - 911.1967.900
Biamp Parlé VBC 2500a Conferencing Video Bar - 911.1967.900 is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*

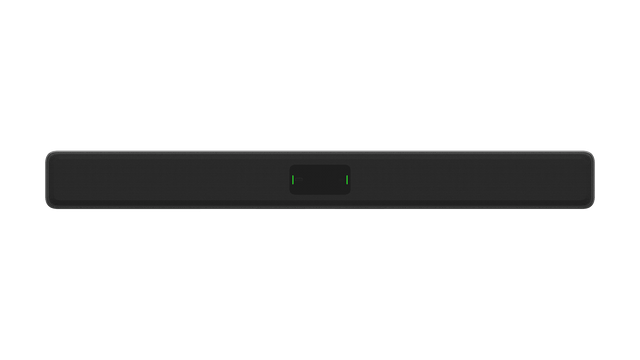

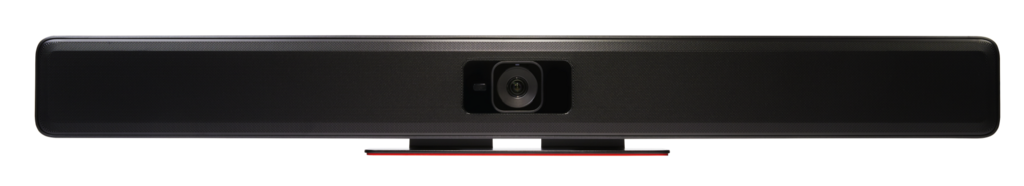

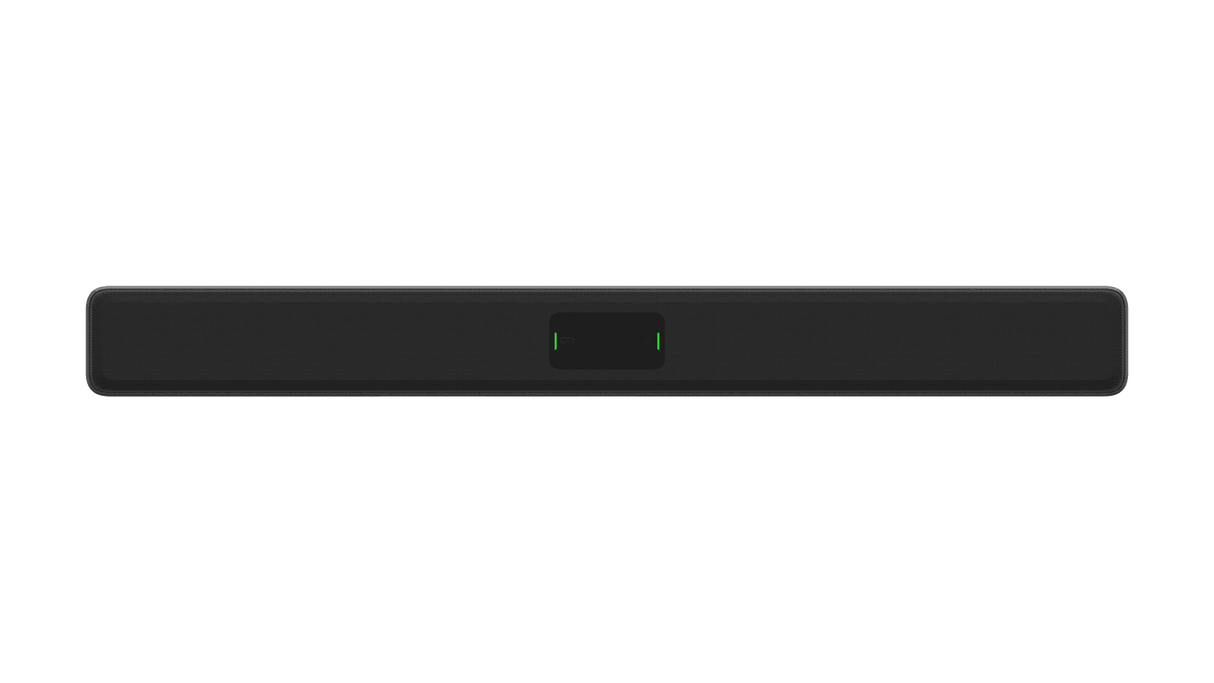

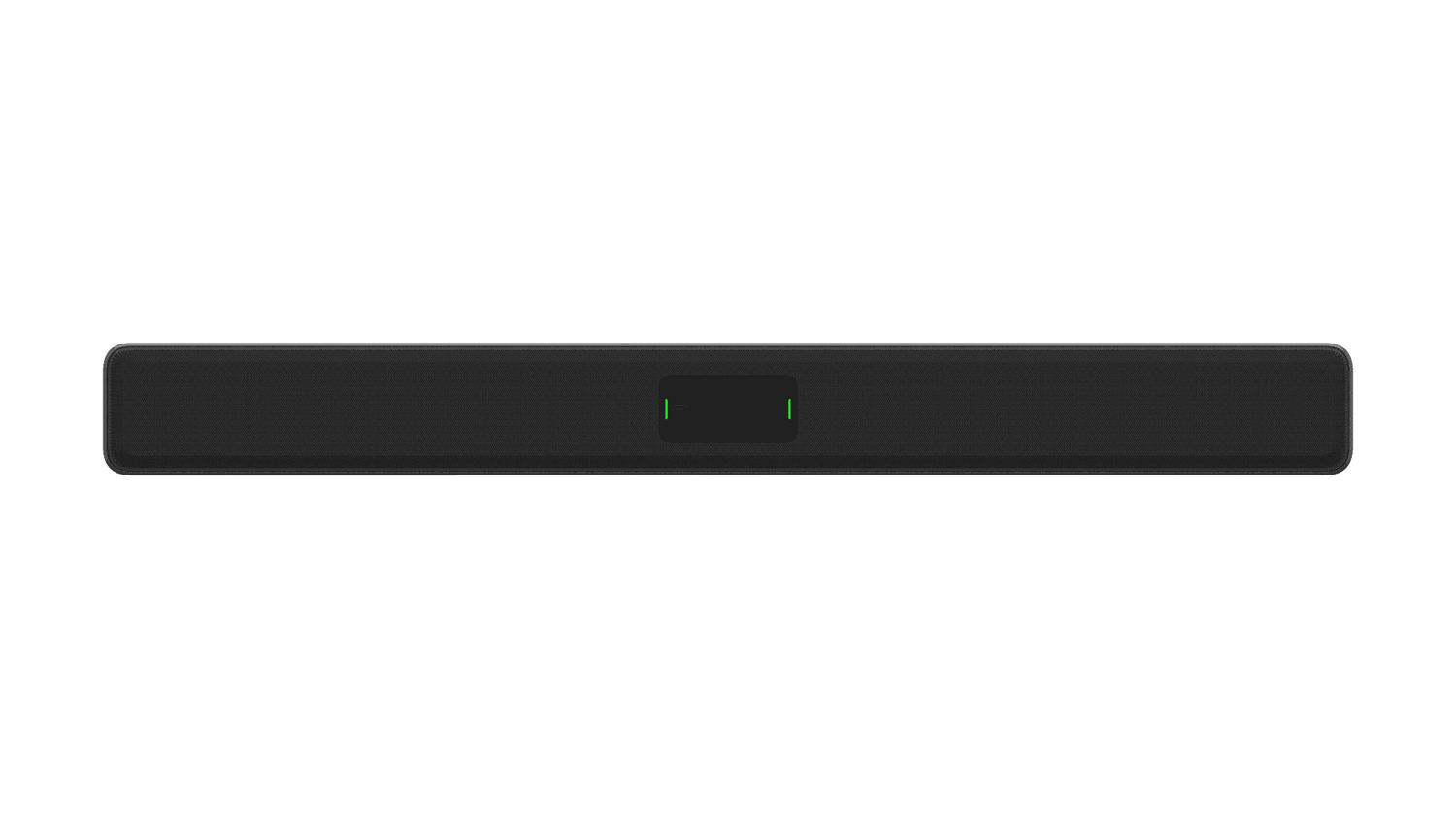

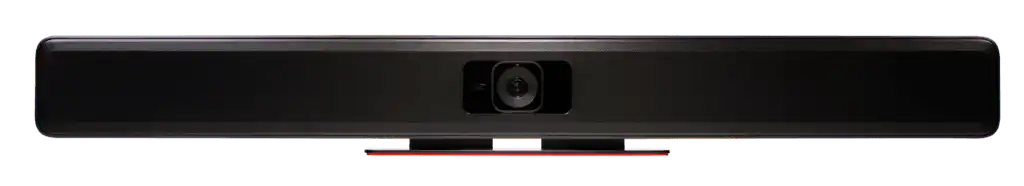

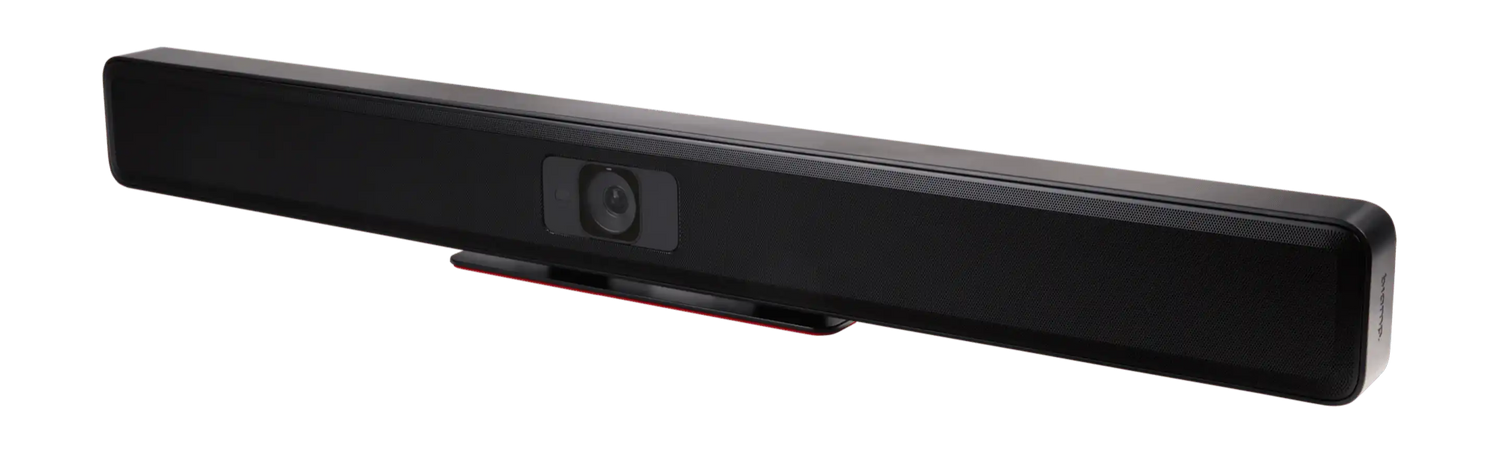

Biamp Parlé VBC 2500a Conferencing Video Bar - 911.1967.900
The Parlé VBC 2500a includes a wide angle 4K camera designed for conference room environments. The camera incorporates high quality optics to enable streaming crystal clear video at 2160p @ 30fps. The VBC 2500a uses auto framing technology to identify meeting participants and to adjust the focus and zoom to keep participants in view.
The VBC 2500a is also equipped with Biamp’s groundbreaking Launch feature. With Launch, the acoustic performance of the room is analyzed and optimized at the touch of a button, making it easy to deliver extraordinary experiences consistently across your organization.
Parlé VBC 2500a can be plugged directly into a UC System with a single USB connection or can be paired with a Devio SCR-10 for a BYOD system.
Features
- Beamtracking technology actively tracks and intelligently mixes conversations
- AI noise reduction algorithm for clear voice reproduction
- Low distortion smart speakers
- Biamp Launch for one touch automatic tuning
- LED indications for mute status and camera activity
- Wide angle 4K camera that can stream 2160p @ 30fps
- Electronic Pan/Tilt/Zoom with 5x zoom
- Auto framing technology to keep participants in frame
- Automatic privacy shutter
- Discrete output for Assistive Listening Systems
- Table, wall, and display mount options available
Specs
MICROPHONES
Microphone Technology: 27-Element Digital Array
Frequency Response (100 Hz - 8 kHz): -10dB
Polar Pattern: Active Beamformed
Pickup Range (25dBA noise floor): > 23 feet (7 m)
SNR (@ 1kHz, 94dB SPL, A-Weighted): 69 dB
Maximum SPL (@ 1kHz, THD < 10%): 130 dB
Indicators: Mute Indicator
(Green/Red/Off LEDs)
Sensitivity (@ 1Pa): > -37dBFS ± 1dB
Microphone Data Rate Output: 48 kHz
Audio Processing: AEC (Acoustic Echo Cancellation)
Noise Reduction: AI Filter
CAMERA
Diagonal Field of View: 120 Degrees
Image Sensor: 12 Megapixel
Focus Distance: 100 cm
Digital Zoom: 5x
Lens Cap: Automated Privacy Shutter
Positioning: Autoframing capability
Electronic Pan/Tilt/Zoom
UVC controlled
Indicators: Camera Active Indicator
(White/Off LED)
Supported Video Resolutions: 720p @ 30fps
1080p @ 30fps
2160p @ 30fps
LOUDSPEAKERS
Frequency Response (57 Hz - 20 kHz): -10 dB
Nominal Beamwidth (H x V): 180° x 180°
Transducers: 2x 2.5 in (60 mm) full range
Rated Maximum SPL (@ 1m): 90 dB (continuous)
96 dB (peak)
Sensitivity (@ 1m, 2.83V): 84 dB
THD (@ 1kHz): < 0.2%
Nominal Impedance: 4Ω
Continuous Rated Power
(6 dB crest factor, HPF @ 60 Hz): 20W
Sampling Rate: 48 kHz
Interfaces
USB 3.0: 1x Type C
Assistive Listening Feed: 1x 3.5mm mono balanced
Power Sources
USB-C: 60W
External Power Supply: 100-240VAC 50/60Hz
(12VDC, 4.74A)
Overall Dimensions
Height: 3.9 inches (100 mm)
Width: 37 inches (940 mm)
Depth: 2.5 inches (64 mm)
Weight: 9.6 lbs (4.4 kg)
Environmental
Operating Temperature: 32 - 104° F (0 - 40° C)
Humidity: 0-90% (non-condensing)
Altitude: 0-10,000 ft (0-3000m) MSL
Compliance:
FCC Part 15B (USA)
CE Marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Specs
| GENERAL | |
| Height | 3.9 inches (100 mm) |
| Width | 37 inches (940 mm) |
| Depth | 2.5 inches (64 mm) |
| Weight | 9.6 lbs (4.4 kg) |
| ENVIRONMENTAL | |
| Ambient Operating Temperature Range | 32 - 104° F (0 - 40° C) |
| Humidity | 0-90% (non-condensing) |
| Altitude | 0-10,000 ft (0-3000m) MSL |
| POWER | |
| Power | Power Sources USB-C: 60W External Power Supply: 100-240VAC 50/60Hz (12VDC, 4.74A) |
| CONTROLS & INDICATORS | |
| Control | Interfaces USB 3.0: 1x Type C Assistive Listening Feed: 1x 3.5mm mono balanced |
| LOUDSPEAKER | |
| Beamwidth | Nominal Beamwidth (H x V): 180° x 180° |
| Transducers | 2x 2.5 in (60 mm) full range |
| Sensitivity | Microphone: Sensitivity (@ 1Pa): > -37dBFS ± 1dB Loudspeakers: (@ 1m, 2.83V): 84 dB |
| VIDEO | |
| CAMERA | |
| Diagonal Field of View | 120 Degrees |
| Horizontal Filed of View | 109 Degrees |
| Verticle Field of View | 75 Degrees |
| Image Sensor | 12 Megapixel |
| Focus Distance | 100 cm |
| Digital Zoom | 5x |
| Lens Cap | Automated Privacy Shutter |
| Positioning | Autoframing capability Electronic Pan/Tilt/Zoom UVC controlled |
| Indicators | Camera Active Indicator (White/Off LED) |
| Supported Resolutions | 720p @ 30fps 1080p @ 30fps 2160p @ 30fps |
| AUDIO | |
| Audio | Interfaces USB 3.0: 1x Type C Assistive Listening Feed: 1x 3.5mm mono balanced |
| Microphone | Microphone Technology: 27-Element Digital Array Polar Pattern: Active Beamformed SNR (@ 1kHz, 94dB SPL, A-Weighted): 69 dB Microphone Data Rate Output: 48 kHz Audio Processing: AEC (Acoustic Echo Cancellation) Noise Reduction: AI Filter
|
| Impedance | Nominal Impedance: 4Ω Continuous Rated Power (6 dB crest factor, HPF @ 60 Hz): 20W |
| THD+N | THD (@ 1kHz): < 0.2% |
| Frequency Response | Microphone: (100 Hz - 8 kHz): -10dB Loudspeaker: (57 Hz - 20 kHz): -10 dB |
| Dynamic Range | Pickup Range (25dBA noise floor): > 23 feet (7 m) |
| SPL | Microphone: Maximum SPL (@ 1kHz, THD < 10%): 130 dB Loudspeakers: Rated Maximum SPL (@ 1m): 90 dB (continuous), 96 dB (peak) |
| Sampling Rate | 48 kHz |
| CERTIFIED SOLUTIONS | |
| Microsoft Teams | Microsoft Teams Certified |
| Zoom | Zoom Certified |
| Barco | Barco Certified |
| COMPLIANCE | |
| Certifications | FCC Part 15B (USA) CE Marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) |
