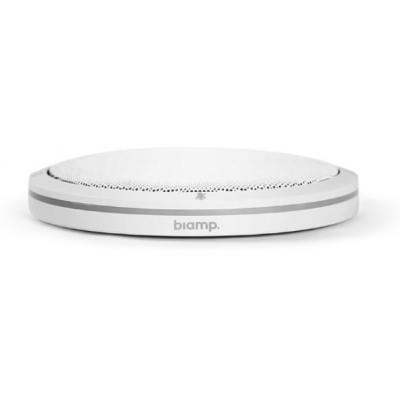

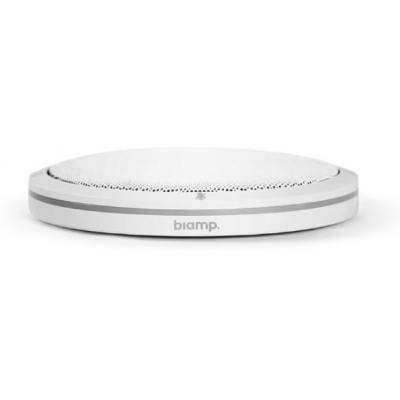

Biamp Parlé TTM-X AVB Beamtracking Tabletop Microphone (White) - 911.0501.900

Biamp SKU: 911.0501.900
No reviews
Price:
$1,982.00

Description

This white Parlé TTM-X is an AVB low profile tabletop microphone for use in Tesira systems. Comprising a network box and a tabletop microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TTM-XEX. A maximum of two microphones are permitted (one TTM-X with TTM-XEX).

Data Sheet

  • Measures 4.7 inches (110 mm) in diameter
  • Sits directly on a table top to virtually disappear in room
  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Four 90-degree zones for full 360-degree room coverage
  • Network box which includes DSP for Beamtracking
  • Uses only one channel of AEC per mic
  • Single cable connection via CAT cable
  • Beamtracking technology works out-of-box without any lobe aiming or room mapping
  • LED mute status indicator
  • Available in either black or white
  • Additional RJ-45 connection for TTM-XEX
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty
  • Polar/Pickup Pattern - Other
  • ROHS Compliant - Yes
  • Warranty - Yes
  • Spec Sheet available - Yes
  • Sensitivity: 70 dB
  • Maximum SPL (Sound Pressure Level): 106 dB
  • Warranty (Length/Type): 5 Years
  • Certifications: FCC, CE, UL, C-UL
  • Minimum Frequency Response (Bandwidth): 150 Hz
  • Minimum Frequency Response (Bandwidth): 0.15 kHz
  • Maximum Frequency Response (Bandwidth): 16000 Hz
  • Maximum Frequency Response (Bandwidth): 16 kHz
  • Dynamic Range: 92 dB
  • Operating Temperature (Maximum): 104 F
  • Operating Temperature (Minimum): 32 F
  • NETWORK BOX:
    •Connectors: Three RJ-45: one between TCM-X network box and switch, one between the network box and microphone, the other between TCM-X network box and TCM-XEX
    •Power: PoE (IEEE 802.3at Class 3, 15.4W)
    •Indicators: Power Indicator (Green/Yellow/Red LED)
    •Digital Interface: Custom/Proprietary
    •Max Distance Between Devices: 330 feet (100 meters) from switch to TCM-X network box; 33 feet (10 meters) between TCM-X network box and TCM-XEX
    •Overall Dimensions: Height: 2 inches (51 mm), Width: 7 inches (178 mm), Depth: 7.125 inches (181 mm)
    •Weight: 2.4 lbs (1.1 kg)
    •Humidity: 0-95% relative humidity (non-condensing)
    •Altitude: 0-10,000 ft (0-3000m) MSL
  • Tabletop Microphone:
    •Microphone Technology: 16-Element Digital Array
    •Indicators- Mute Indicator (Green/Red LED)
    •Digital Interface-Custom/Proprietary
    •Connector- RJ-45
    •Overall Dimensions-Height: 0.6inches (15mm), Diameter: 4.7inches (146mm)
