Product Overview
The Biamp Parle TTM-X is an AVB low-profile tabletop microphone with Beamtracking technology for Tesira conferencing systems. As an unobtrusive table-mounted beamforming microphone for conference rooms and boardrooms, it provides full 360-degree coverage for clear far-end meeting audio.
Product Description

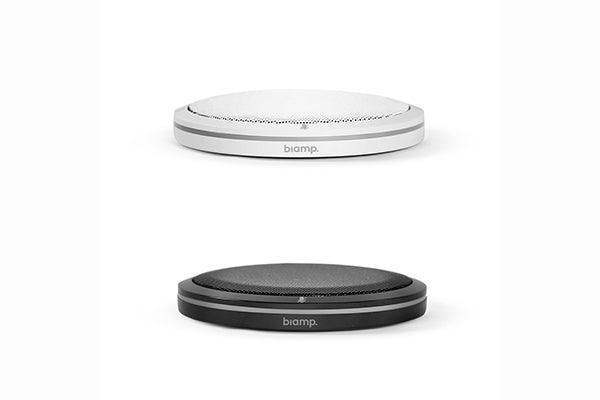

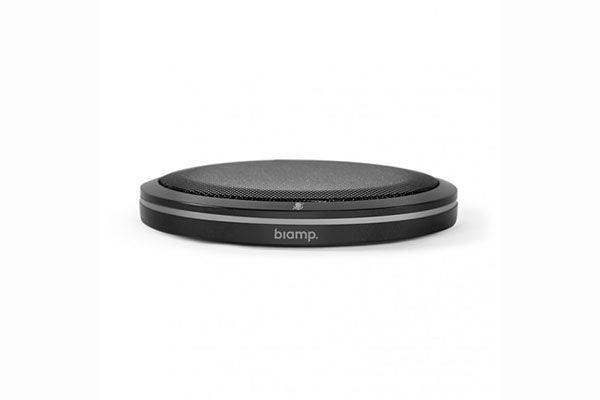

The Parle TTM-X is an AVB low-profile tabletop microphone for use in Tesira systems, comprising a network box and a tabletop microphone. Each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own DSP module and an additional RJ-45 connector to add an optional TTM-XEX, with a maximum of two microphones permitted (one TTM-X with TTM-XEX). It sits directly on the table to virtually disappear in the room and is supplied in black.
Key Features
- Low-profile tabletop design — Measuring 4.7 inches (110 mm) in diameter, the microphone sits on the table to virtually disappear in the room.
- Beamtracking technology — Beamtracking actively tracks and intelligently mixes conversations without lobe aiming or room mapping.
- 360-degree coverage — Four 90-degree zones provide full 360-degree room coverage.
- On-board DSP — The network box includes a DSP module for Beamtracking, using only one AEC channel per microphone.
- Single-cable connection — A single CAT cable connects the microphone, with an additional RJ-45 for an optional TTM-XEX.
- Mute indication — An LED mute status indicator is provided.
Typical Applications
- Conference room
- Boardroom
- Huddle room
- Commercial meeting space
Technical Specifications
| Type | AVB low-profile tabletop Beamtracking microphone |
| Diameter | 4.7 in (110 mm) |
| Beamtracking Zones | Four 90-degree zones (360-degree coverage) |
| AEC | One channel per microphone |
| Connection | Single CAT cable; additional RJ-45 for TTM-XEX |
| Max Mics per Network Box | Two (one TTM-X with TTM-XEX) |
| Compliance | CE marked, UL listed, RoHS compliant |
| Warranty | Biamp 5-year warranty |
Competitor Comparison
| Capability | Biamp Parle TTM-X | Shure / Sennheiser |
|---|---|---|
| Form factor | Low-profile tabletop Beamtracking microphone | Shure MXA920 and Sennheiser TeamConnect Ceiling 2 are ceiling-mounted arrays |
| Pickup | Beamtracking, four 90-degree zones, 360-degree | MXA920 steerable lobes; TCC2 adaptive beamforming |
| Setup | Works out of the box without aiming or mapping | Typically configured in software |
| DSP integration | Network box DSP; native Tesira AVB | IntelliMix (Shure) or TeamConnect/external DSP (Sennheiser) |
| AEC usage | One AEC channel per microphone | Channel/AEC usage varies by platform |
| Placement | On-table, 4.7 in low profile | Ceiling mounted |
Frequently Asked Questions
How does the TTM-X pick up the room?
Beamtracking technology uses four 90-degree zones for full 360-degree coverage and works out of the box without aiming or mapping.
What system does it work with?
It is an AVB microphone for use in Biamp Tesira systems.
Can a second microphone be added?
Yes. An optional TTM-XEX can be added via the additional RJ-45 connection, up to two microphones per network box.
Is it covered by warranty?
Yes. It is covered by Biamp's five-year warranty.
