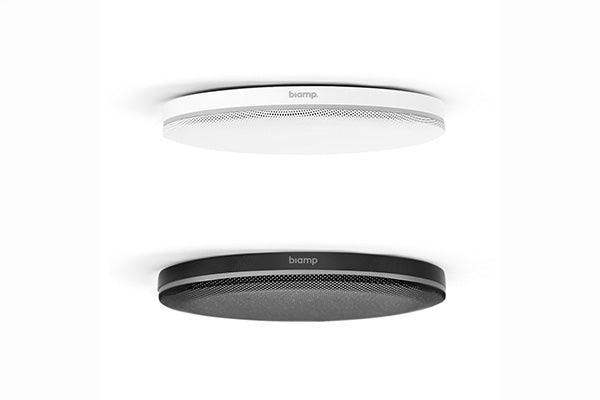

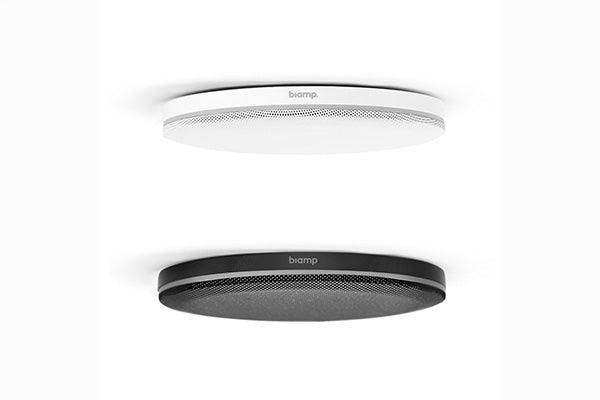

The Parlé TCM-XEX is a low-profile ceiling microphone that utilizes Beamtracking technology to provide full 360 degree coverage of the meeting space. The TCM-XEX actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting.
- Measures 5.90 inches (150 mm) in diameter
- Mounts directly to the ceiling to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- Uses only one channel of AEC per mic
- Single cable connection via category cable
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ two-year warranty
Data Sheet
| Microphone Technology |
16-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) |
± 3dB |
| Polar Pattern |
Active Beamformed |
| SNR (at 1kHz, 94dBSPL A-Weighted) |
> 76dB |
| Maximum SPL (at < 1% THD) |
109dB |
| Dynamic Range (THD+N < 1%) |
92dB, A-Weighted |
| Indicators |
Mute Indicator
(Green/Red LED) |
| Digital Interface |
Custom/Proprietary |
| Connector |
RJ-45 |
| Overall Dimensions |
Height (excluding ceiling mount): 0.6 inches (15 mm)
Diameter: 5.9 inches (150 mm) |
| Weight |
0.7 lbs (340 g) |
| Power |
Custom/Proprietary |
| Max Distance Between Devices |
33 feet (10 meters) between TCM-XEX and DSP host device |
| Ambient Operating Temperature Range |
32 - 104° F (0 - 40° C) |
| Humidity |
0-95% relative humidity (non-condensing) |
| Altitude |
0-10,000 ft (0-3000m) MSL |
| Compliance |
FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements
of UL 2043 and is suitable for
use in air handling spaces |
