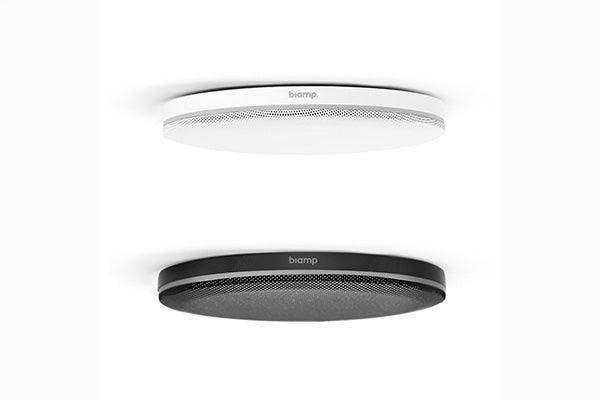

Biamp Parlé TCM-XEX AVB Low-profile Ceiling Microphone (White) - 911.0500.900
Biamp Parlé TCM-XEX AVB Low-profile Ceiling Microphone (White) - 911.0500.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Parlé TCM-XEX AVB Low-profile Ceiling Microphone (White) - 91...
Product Overview
The Biamp Parle TCM-XEX is a low-profile expansion ceiling microphone that uses Beamtracking technology to provide full 360-degree coverage of a meeting space. It actively tracks and intelligently mixes conversation so far-end participants experience a natural, face-to-face feel. Relevant searches include Beamtracking ceiling microphone, low-profile conference room mic, and 360-degree ceiling array microphone.
Product Description
Measuring just 5.9 inches in diameter and mounting flush to the ceiling, the TCM-XEX virtually disappears in the room. It uses a 16-element digital array divided into four 90-degree zones for full 360-degree coverage, with Beamtracking that works out of the box without lobe aiming or room mapping. Each microphone uses only one channel of AEC and connects via a single category cable. An LED mute status indicator is built in, and the microphone is evaluated to UL 2043 for use in air-handling spaces.
Key Features
- Beamtracking coverage — A 16-element digital array with four 90-degree zones provides full 360-degree room coverage that tracks and mixes conversation automatically.
- Zero-configuration setup — Beamtracking works out of the box with no lobe aiming or room mapping required.
- Low-profile design — At 5.9 inches in diameter and 0.6 inches tall, it mounts flush to the ceiling to blend into the room.
- Efficient AEC use — Each microphone uses only one channel of acoustic echo cancellation per device.
- Single-cable connection — A single category cable carries audio and power to the DSP host device.
- Plenum-rated — Evaluated to UL 2043 and suitable for use in air-handling spaces.
Typical Applications
- Boardroom
- Conference room
- Huddle room
- Training room
Technical Specifications
| Microphone Technology | 16-element digital array |
| Frequency Response | 150 Hz - 16 kHz, +/- 3 dB |
| Polar Pattern | Active beamformed, four 90-degree zones |
| SNR (1 kHz, 94 dB SPL, A-weighted) | > 76 dB |
| Maximum SPL (< 1% THD) | 109 dB |
| Dynamic Range | 92 dB, A-weighted |
| Connector | RJ-45 |
| Max Distance to DSP Host | 33 feet (10 meters) |
| Dimensions | 0.6 in (15 mm) high, 5.9 in (150 mm) diameter |
| Weight | 0.7 lbs (340 g) |
| Compliance | FCC Part 15B, CE, UL/C-UL, RoHS, UL 2043 plenum |
Frequently Asked Questions
Does the TCM-XEX require room mapping or lobe aiming?
No. Beamtracking works out of the box, automatically tracking and mixing conversation across four 90-degree zones.
How is the microphone connected?
It uses a single category cable to a Biamp DSP host device, up to 33 feet (10 meters) away.
Can it be installed in a plenum ceiling?
Yes. It is evaluated to UL 2043 and suitable for use in air-handling spaces.
