Biamp Parlé TCM-XA Ceiling AVB low-profile ceiling microphone (White) - 911.0499.900

Product Overview

The Biamp Parlé TCM-XA is an AVB low-profile ceiling microphone with an integrated PoE+ amplifier for use in Biamp Tesira systems, combining a white ceiling microphone and a network box. Its Beamtracking technology uses four 90-degree zones for full 360-degree room coverage, making it a strong fit for conferencing and collaboration spaces. It suits boardrooms, conference rooms, huddle rooms, and training rooms that need discreet, intelligible audio capture. Primary keyword: AVB ceiling conferencing microphone; long-tail: Beamtracking ceiling microphone, PoE+ ceiling mic for Tesira, 360-degree conference room microphone.

Product Description

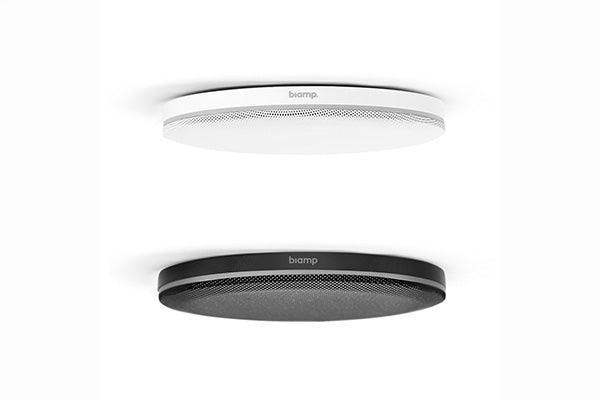

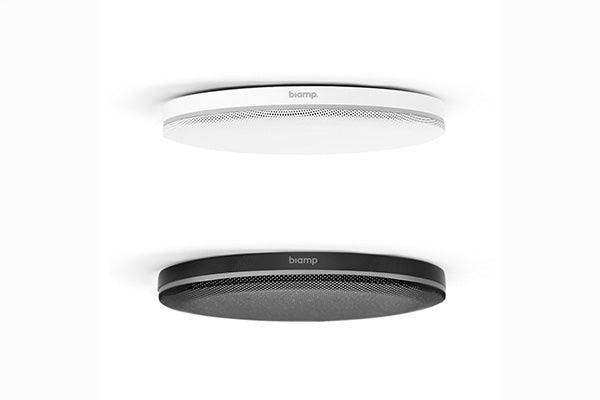

The TCM-XA comprises a low-profile circular ceiling microphone measuring 5.9 inches (150 mm) in diameter and a network box that includes the DSP for Beamtracking plus a 2-channel PoE+ Class D amplifier. Beamtracking technology actively tracks and intelligently mixes conversations across four 90-degree zones, and works out of the box without lobe aiming or room mapping. The microphone uses only one channel of AEC per unit and connects to the network box over a single category cable. The amplifier offers software-selectable power versus channel count, an internal limiter, and a burst mode that handles peak signals per ANSI/CTA-2006-B (up to 40W at 4 ohms or 30W at 8 ohms per channel). The network box adds an RJ-45 to connect an optional TCM-XEX expansion microphone. The unit is evaluated to UL 2043 for use in air-handling spaces and is finished in white. It is covered by Biamp Systems' five-year warranty.

Key Features

• Beamtracking coverage — Four 90-degree zones provide full 360-degree coverage and intelligently mix conversations without lobe aiming or room mapping.
• Integrated PoE+ amplifier — The network box includes a 2-channel Class D PoE+ amplifier with software-selectable power, an internal limiter, and burst mode for peak signals.
• Low-profile design — A 5.9-inch (150 mm) circular ceiling microphone mounts directly to the ceiling to stay discreet in the room.
• Single-cable connection — The microphone connects to its network box over a single category cable.
• Plenum rated — The microphone is evaluated to UL 2043 for use in air-handling spaces.
• Expandable — An additional RJ-45 on the network box supports an optional TCM-XEX expansion microphone.
• Five-year warranty — Covered by Biamp Systems' five-year warranty.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Training room
• Multi-purpose room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What system does the TCM-XA work with?
It is an AVB device designed for Biamp Tesira systems and connects over a single category cable to its network box.

Does it need a separate amplifier?
No. The network box includes a 2-channel PoE+ Class D amplifier, so loudspeakers can be driven directly.

How is coverage configured?
Beamtracking works out of the box with four 90-degree zones for 360-degree coverage, with no lobe aiming or room mapping required.

Can it be installed in a plenum ceiling?
Yes. The microphone is evaluated to UL 2043 for use in air-handling spaces.
