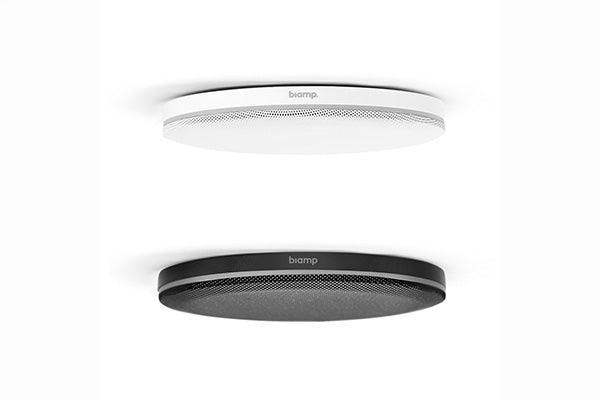

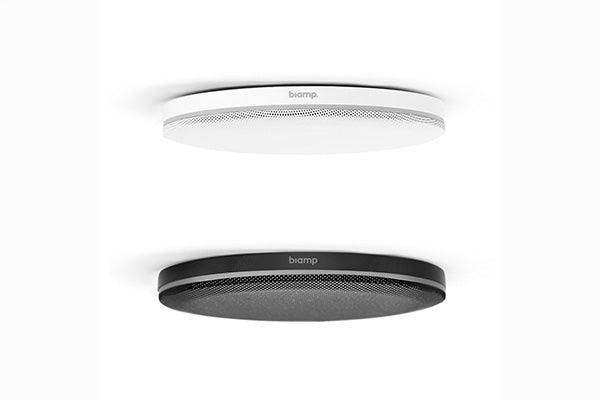

The Parlé TCM-XA is an AVB low-profile ceiling microphone and PoE+ (IEEE 802.3at Class 4, 30W) amplifier for use in Tesira systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.
FEATURES
• Low profile circular ceiling microphone that measures 5.90
inches (150 mm) in diameter
• Mounts directly to the ceiling to virtually disappear in room
• Beamtracking technology actively tracks and intelligently
mixes conversations
• Four 90-degree zones for full 360-degree room coverage
• Network box includes DSP for Beamtracking and a
PoE+ amplifier
• Two channels
• Burst mode to handle peak signals in accordance with
ANSI/CTA-2006-B; supports up to 40 watts (4Ω load) or
30 watts (8Ω load) per channel
• Software-selectable power vs. channel count
• Includes internal limiter function
• Uses only one channel of AEC per microphone
• Single cable connection via category cable
• Beamtracking technology works out-of-box without any
lobe aiming or room mapping
• LED mute status indicator
• Available in either black or white
• Evaluated to the requirements of UL 2043 and is suitable
for use in air handling spaces
• Additional RJ-45 on network box for connection to a
TCM-XEX microphone
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
Data Sheet
| CEILING MOUNT MICROPHONE |
| Microphone Technology |
16-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) |
± 3dB |
| Polar Pattern |
Active Beamformed |
| SNR (at 1kHz, 94dBSPL A-Weighted) |
> 76dB |
| Maximum SPL (at < 1% THD) |
109dB |
| Dynamic Range (THD+N < 1%) |
92dB, A-Weighted |
| Indicators |
Mute Indicator (Green/Red LED) |
| Digital Interface |
Custom/Proprietary |
| Connector |
RJ-45 (cable length 6.6 feet [2 meters]) |
| Overall Dimensions |
Height (excluding ceiling mount): 0.7 inches (17 mm)
Diameter: 5.9 inches (150 mm) |
| Weight |
0.7 lbs (340 g) |
| NETWORK BOX |
| Connectors |
Three RJ-45: one between TCM-X network box and switch, one between the network box and microphone, the other between TCM-X network box and TCM-XEX |
| Power |
PoE+ (IEEE 802.3at Class 4, 30W) |
| Indicators |
Power Indicator (Green/Yellow/Red LED) |
| Digital Interface |
Custom/Proprietary |
| Max Distance Between Devices |
330 feet (100 meters) from switch to TCM-X network box
33 feet (10 meters) between TCM-X network box and TCM-XEX |
| Overall Dimensions |
Height: 1.2 inches (30 mm)
Width: 6.8 inches (172 mm)
Depth: 5.2 inches (132 mm) |
| Weight |
1.5 lbs (680 g) |
| Ambient Operating Temperature Range |
32 - 104° F (0 - 40° C) |
| Humidity |
0-95% relative humidity (non-condensing) |
| Altitude |
0-10,000 ft (0-3000m) MSL |
| Compliance |
FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
| AMPLIFIER |
| Number of Channels |
2 |
| Connectors |
RJ-45 |
| Amplifier Topology |
Class D |
| Burst Power Output (per ANSI/CTA-2006-B @ 1kHz) |
4Ω (per channel): 40W
8Ω (per channel): 30W |
| Continuous Power Output |
Single Channel Driven, (4Ω, 8Ω): 8W
Dual Channel Driven (4Ω, 8Ω): 4W |
| THD+N (20Hz-20kHz, at continuous power) |
< 0.3% |
| Frequency Response (20Hz-20kHz) |
± 1dB |
| Dynamic Range (20Hz-20kHz BW) |
> 85dB |
| Minimum Operational Load |
4Ω |
| Intermodulation distortion (SMPTE) |
< 0.3% |
| Cross Talk (channel to channel @ 1kHz) |
< -90dB |
