Biamp Parle TCM-X-FM Flush Mount Kit - 909.0116.900

Regular price $187.00
Shipping calculated at checkout.
✓ Ships from Stock
Biamp  |  SKU: 920-10116-20000

Ships in 24–48 hours on most in-stock orders

Best price or expert advice? Call 1-888-230-3661 or use Live Chat. Buying 1 or 100, you may qualify for greater savings.

Secure checkout We never store your card details.

Ach Direct DebitAmerican Express Apple Pay DiscoverGoogle Pay Mastercard USDC Visa

Product Overview

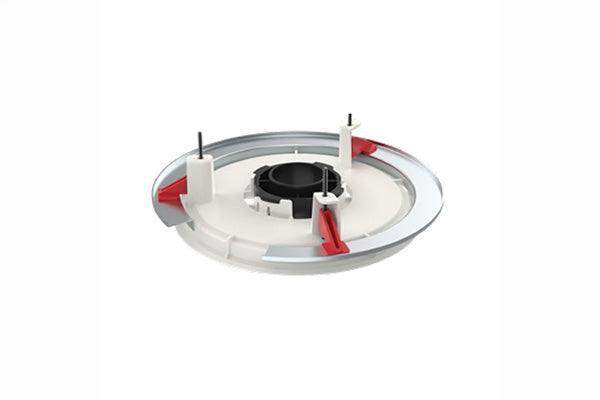

The Biamp Parle TCM-X-FM is a flush mount kit that provides flush and recessed mounting options for the Parle TCM-X microphone, available in white or black.

Product Description

The TCM-X-FM mounts the TCM-X in flush or recessed positions and supports two LED viewing angles: 130 degrees in flush mount and 170 degrees in recessed mount. It can install in drop tile ceilings or finished drywall ceilings with at least 64 mm (2.5") clearance, and fits ceilings 13-24 mm (0.5"-0.95") thick using the C-Ring, or 16-25 mm (0.625"-1") with an optional tile bridge. It meets UL 2043 requirements for installation in plenum and air-handling spaces.

Key Features

  • Flush and recessed mounting — Provides both flush and recessed mounting positions for the Parle TCM-X microphone.
  • Dual LED viewing angles — Supports a 130-degree LED viewing angle in flush mount and 170 degrees in recessed mount.
  • Ceiling compatibility — Installs in drop tile or finished drywall ceilings with at least 64 mm (2.5") clearance.
  • Thickness range — Fits ceilings 13-24 mm (0.5"-0.95") with the C-Ring, or 16-25 mm (0.625"-1") with an optional tile bridge.
  • Plenum rated — Meets UL 2043 requirements for installation in plenum and air-handling spaces.

Technical Specifications

Product Type Microphone flush mount kit
Compatible Device Parle TCM-X
Mounting Flush or recessed
LED Viewing Angle Flush 130 deg; Recessed 170 deg
Minimum Clearance 64 mm (2.5")
Ceiling Thickness 13-24 mm (C-Ring); 16-25 mm (optional tile bridge)
Certification UL 2043 (plenum/air-handling)
Color White or black

Explore the full Biamp range at Creation Networks.
