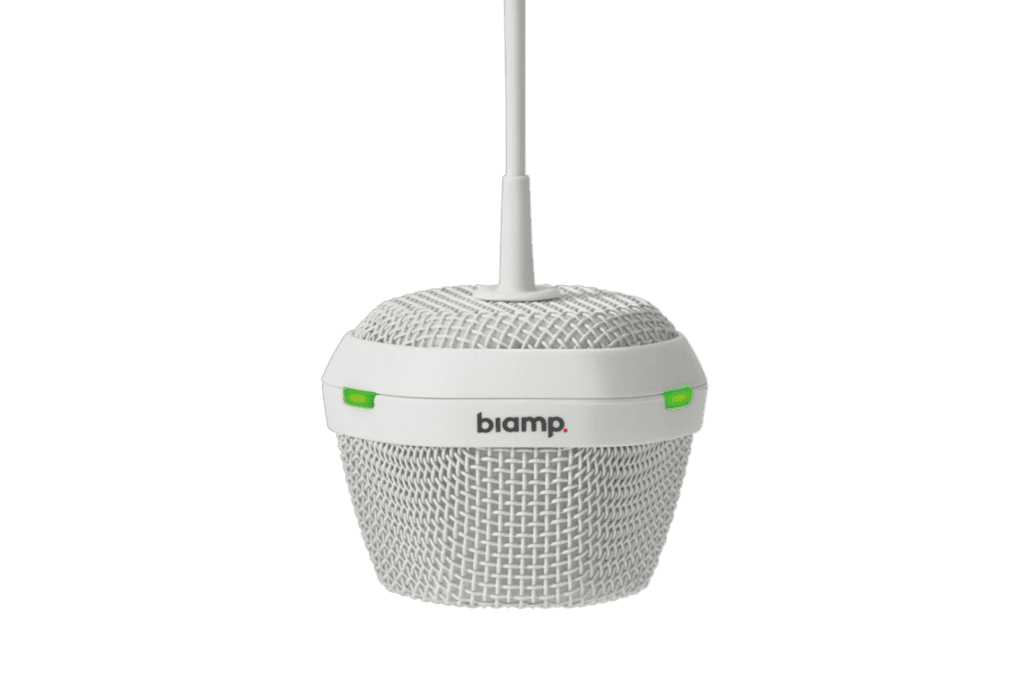

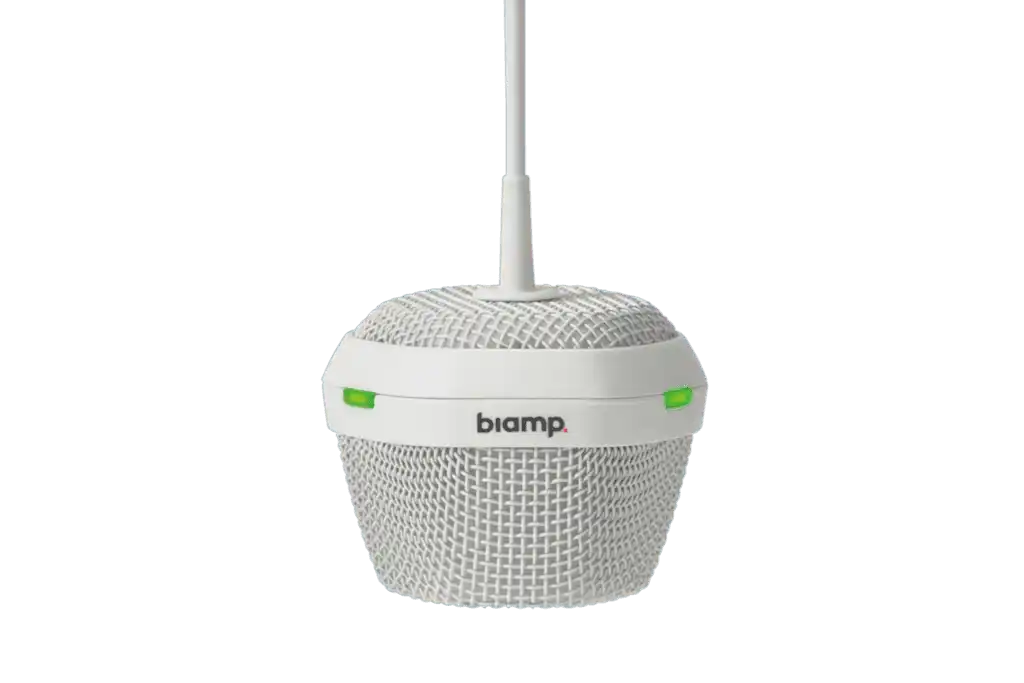

Biamp Parlé TCM-1 AVB Beamtracking ceiling microphone, white- 911.0485.900

Biamp SKU: 911.0485.900
No reviews

Price:
Sale price$1,982.00

Description

The Parlé TCM-1 is an AVB pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).

  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Three 120-degree zones for 360-degree coverage
  • Plenum box includes DSP for Beamtracking
  • LED mute status indicator
  • User-adjustable microphone height
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • Pendant microphone available in either white or black
  • Optional tile bridge mounting accessory available
  • Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three microphones per daisy chain)
  • CE marked, UL listed, and RoHS compliant
  • 5-year warranty
  • Compliant with the US Trade Agreement Act (TAA)
Parle TCM-1 Pendant Microphone Data Sheet
GENERAL
Height Microphone: 2 inches (51 mm)
Plenum Box: 2 inches (51 mm)
Width Microphone: 2.5 inches (63 mm)
Plenum Box: 7 inches (178 mm)
Depth Microphone: 2.5 inches (63 mm)
Plenum Box: 7.125 inches (181 mm)
Weight Microphone: 0.4 lbs (0.2 kg)
Plenum Box: 2.4 lbs (1.1 kg)
Accessories Plenum Box (included):
Connectors: Two RJ-45: one between TCM-1 plenum box and switch, the other between TCM-1 plenum box and additional TCM-1EX plenum box; 2-pin 3.5 mm Phoenix connector to TCM-1 microphone
Digital Interface: Custom/Proprietary
Max Distance Between Devices: 330 feet (100 meters) from switch to TCM-1 plenum box; 33 feet (10 meters) for daisy-chained connections between TCM plenum boxes
POWER
Power Plenum Box Power: PoE (IEEE 802.3at Class 3, 15.4W)
Power Indicator(s) Plenum Box: (Green/Yellow/Red LED)
Microphone: Mute Indicator (Green/Red LED)
AUDIO
Microphone Pendant:
Microphone Technology: 8-Element Digital Array
Polar Pattern: Beamformed
Sensitivity (94dB SPL, 1kHz): > 70dB
Dynamic Range (THD+N < 10%): 92dB, A-Weighted
Digital Interface: Custom/Proprietary
Connector: Custom 2-pin (cable length 10 feet [3 meters])
Frequency Response (150 Hz - 16 kHz): ± 3dB
SPL (at 0.5% THD): 106dB
CERTIFIED SOLUTIONS
TAA Compliant TAA Compliant
COMPLIANCE
Certifications FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
