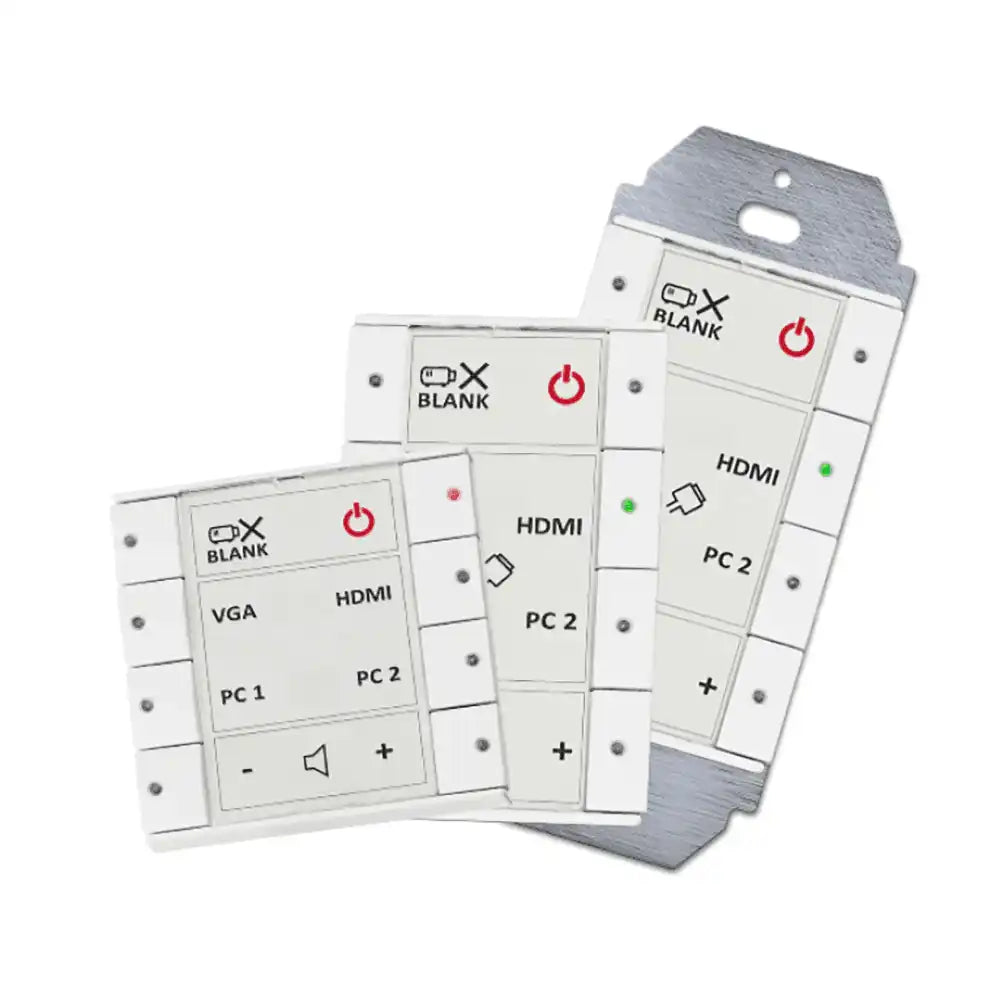

Biamp Impera Echo Plus 8USW 8-button control pad with Ethernet, 1 bidirectional RS-232 port, 1 unidirectional RS-232 port, 3 GPIO; US, white - 911.1884.900
Biamp Impera Echo Plus 8USW 8-button control pad with Ethernet, 1 bidirectional RS-232 port, 1 unidirectional RS-232 port, 3 GPIO; US, white - 911.1884.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Impera Echo Plus 8USW 8-button control pad with Ethernet, 1 b...
Product Overview
The Biamp Impera Echo Plus 8USW is a compact, customizable, wall-mounted AV control pad with LAN-based control, configured for US installation in white. It provides a simple, intuitive interface for presentation spaces, learning environments, and conference rooms, and can support a wide range of equipment. The Echo Plus is quickly configured within Biamp Project Designer software for a flexible, cost-effective control solution.
Product Description
The Echo Plus 8USW supports up to eight software-configurable buttons and includes an on-board controller, so no external processor is required. It controls up to two third-party devices over Ethernet and includes one bidirectional RS-232/IR port for control with feedback, one unidirectional RS-232/IR port, and three GPIO ports. A mini USB connection supports configuration and maintenance, and the unit supports email notifications for lamp/filter hours and warnings. An expansion bus supports up to two additional devices such as keypads and port expanders, and more ports can be added with the Connect-X MP6.
Key Features
- Eight configurable buttons — The Echo Plus supports up to eight software-configurable buttons.
- On-board controller — An on-board controller eliminates the need for an external processor.
- Ethernet device control — It controls up to two third-party devices over Ethernet.
- RS-232/IR and GPIO — One bidirectional and one unidirectional RS-232/IR port plus three GPIO ports support third-party control.
- Project Designer — The pad is quickly configured within Biamp Project Designer software.
- Expansion bus — An expansion bus supports up to two additional keypads or port expanders.
- Five-year warranty — The Echo Plus is covered by Biamp Systems' five-year warranty.
Typical Applications
The Echo Plus 8USW suits conference rooms, training rooms, and multi-purpose rooms, as well as learning environments requiring wall-mounted AV control.
Technical Specifications
| Buttons | Up to 8, software-configurable |
| Controller | On-board, no external processor required |
| Ethernet control | Up to 2 third-party devices |
| RS-232/IR | 1 bidirectional, 1 unidirectional |
| GPIO | 3 ports |
| Configuration | Mini USB; Biamp Project Designer software |
| Notifications | Email notifications for lamp/filter hours and warnings |
| Expansion | Expansion bus for up to 2 additional devices; Connect-X MP6 compatible |
| Region / finish | US, white |
| Warranty | Biamp Systems five-year warranty |
Frequently Asked Questions
Does the Echo Plus need an external processor?
No. It includes an on-board controller, so no external processor is required.
How many buttons and devices does it support?
It supports up to eight software-configurable buttons and controls up to two third-party devices over Ethernet.
How is it configured?
It is configured within Biamp Project Designer software, with a mini USB connection for setup and maintenance.
