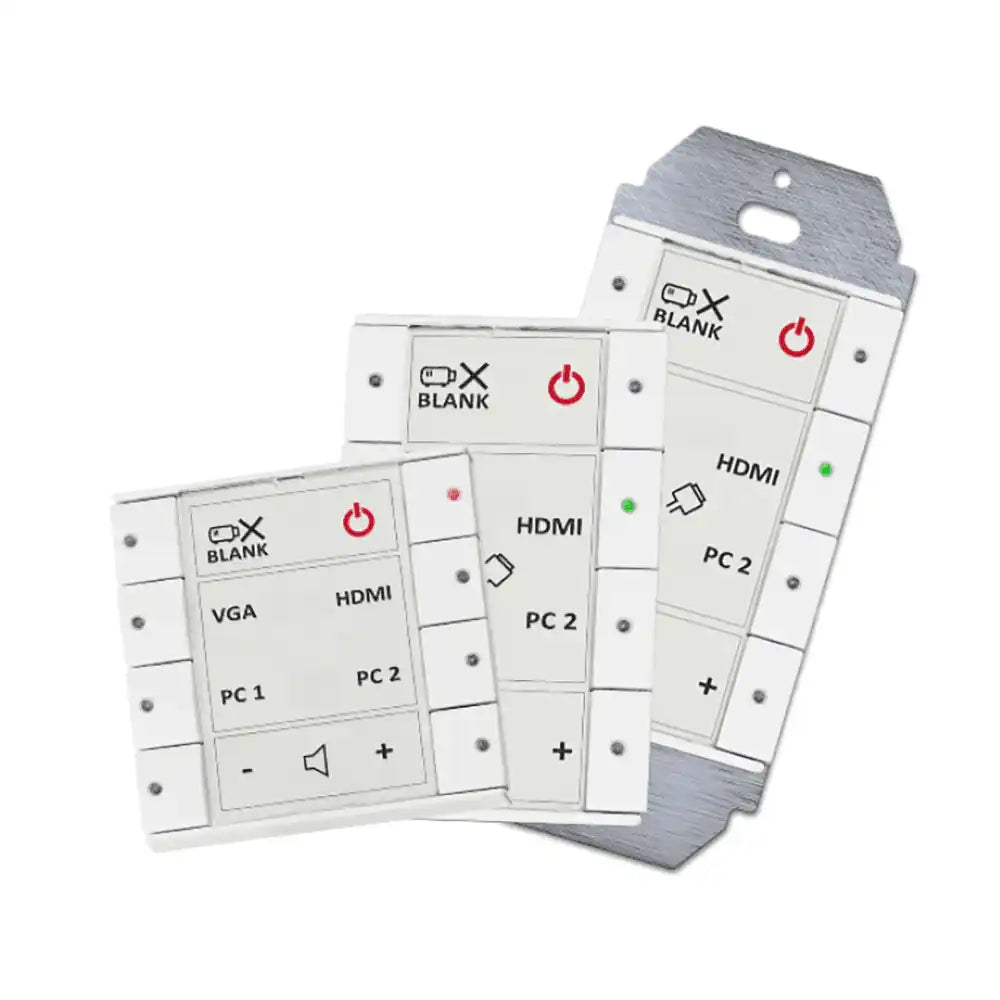

Biamp Impera Echo 8USW 8-button control pad with 1 bidirectional RS-232 port, 1 unidirectional RS-232 port, 3 GPIO; US, white - 911.1885.900
Biamp Impera Echo 8USW 8-button control pad with 1 bidirectional RS-232 port, 1 unidirectional RS-232 port, 3 GPIO; US, white - 911.1885.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Impera Echo 8USW 8-button control pad with 1 bidirectional RS...
Product Overview
The Biamp Impera Echo 8USW is a compact, customizable, wall-mounted AV control pad in white with US configuration. It provides a simple, intuitive interface for presentation spaces, learning environments and conference rooms, and can support a wide range of equipment. The Echo includes an on-board controller, so no external processor is required.
Product Description
The Echo can be quickly configured within Project Designer software, making it easy to adapt the system as room needs evolve for a flexible, cost-effective control solution. This 8USW model offers up to eight software-configurable buttons, one bidirectional RS-232/IR port for third-party control with feedback, one unidirectional RS-232/IR port, and three GPIO ports. A mini-USB connection supports configuration and maintenance, and the device can send email notifications for lamp/filter hours and warnings. An expansion bus supports up to two additional devices such as keypads and port expanders. Supplied in white with a US power configuration.
Key Features
- Eight Configurable Buttons — Supports up to eight software-configurable buttons via Project Designer.
- On-Board Controller — Includes an integrated controller; no external processor required.
- Bidirectional RS-232/IR — One bidirectional RS-232/IR port for third-party control with feedback.
- Unidirectional RS-232/IR — One unidirectional RS-232/IR port for additional third-party control.
- GPIO Ports — Three GPIO ports for integration with room equipment.
- Expansion Bus — Supports up to two additional keypads or port expanders.
Typical Applications
- Conference room
- Training room
- Boardroom
- Multi-purpose room
Technical Specifications
| Type | Wall-mounted AV control pad |
| Buttons | Up to 8 software-configurable |
| Controller | On-board; no external processor required |
| Serial Ports | 1 bidirectional RS-232/IR; 1 unidirectional RS-232/IR |
| GPIO | 3 ports |
| Configuration Port | Mini USB |
| Expansion | Expansion bus for up to 2 additional devices |
| Configuration | US, white |
| Biamp 5-Year Warranty | Covered by Biamp Systems’ five-year warranty. |
Frequently Asked Questions
Does the Echo 8USW require an external control processor?
No. The Echo 8USW includes an on-board controller, so no separate processor is needed for room control.
How is the control pad programmed?
It is configured within Biamp Project Designer software, allowing buttons and behavior to be changed as the room evolves.
Can additional keypads be connected?
Yes. The expansion bus supports up to two additional devices such as keypads and port expanders.
