Biamp Devio SCR-20TX Tabletop Microphone Solution (0513.900 & 0504.900) - Creation Networks
Roll over image to zoom in Click on image to zoom
Biamp Devio SCR-20TX Tabletop Microphone Solution (0513.900 & 0504.900) - Creation Networks
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

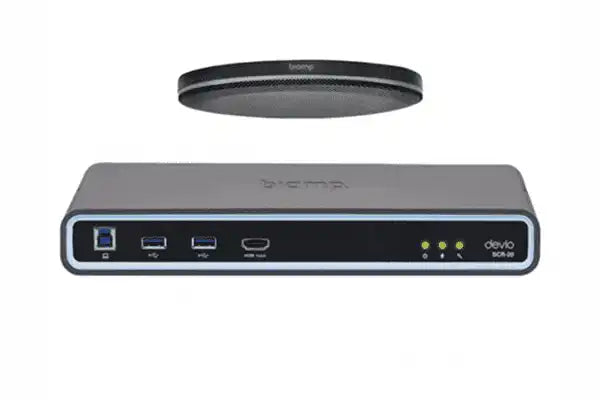

Biamp Devio SCR-20TX Tabletop Microphone Solution (Black mic) - 911.0513.900

Biamp SKU: 911.0513.900
No reviews
Price:
$3,742.00

Description

HUDDLE ROOM SOLUTIONS

The Biamp Devio SCR-20TX is a conferencing hub with a Parlé TTM-XEX tabletop microphone that provides users with exceptional AV experiences when using web-based conferencing systems.

Intended for huddle rooms or small conference rooms, the SCR-20 hub uses Beamtracking™ microphones and professional-grade DSP to optimize the audio quality, allowing far-end conference participants to experience the conversation naturally. The hub supports a variety of room designs for computer-based conferencing including a BYOD approach or connection via a dedicated in-room PC.

Devio works in concert with PCs running a variety of web-based conferencing solutions including Microsoft Skype for Business / Microsoft Teams, Zoom, BlueJeans, Google Hangouts™ / Google Meet, and many more. For ease of network and device management, Devio can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU) software, and firmware updates can be scheduled and deployed to multiple Devio units as needed.

  • Works in concert with PCs running web-based conferencing solutions, including Microsoft Skype for Business/Microsoft Teams, Zoom, BlueJeans, Google Hangouts™/Google Meet, and many more
  • Supports both Windows and Mac PCs, and uses standard audio drivers
  • Supports driverless, pass-through HDMI connectivity to a single in-room display, or to two monitors with USB video using DisplayLink USB graphics technology (requires installation of DisplayLink driver on laptop; supports Windows 7, 8, 8.1, and 10)
  • Auto Setup validates device connections, adjusts room levels, and sets speaker EQ to optimize audio quality
  • Can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU)
  • Firmware updates can be scheduled and deployed to multiple Devio units via the SAU
  • Speaker connectivity options include HDMI audio, a built-in 20W amplifier, or RCA line out
  • Includes a mounting bracket for under–the–table installation
  • Ships with one tabletop or ceiling Beamtracking microphone with 360-degree coverage
  • Covered by Biamp Systems’ two-year warranty

SCR-20 Data Sheet

Parle TTM-XEX Data Sheet

Devio SCR-20
Network Connection RJ-45 with Ethernet cable (Cat 5e and above)
Power 24V DC 60W
Ambient Operating Temperature Range 32-104° F (0-40° C)
Compliance FCC Part 15B (USA)
UL and C-UL listed (USA and Canada)
CE Marked (Europe)
RoHS Directive (Europe)
Dimensions (H x W x D) 1.8" (46 mm) x 11.2" (284 mm) x 6.9" (175 mm)
Weight 2 lbs (0.9 kg)
Parlé TTM-XEX Microphone
Frequency Response (150 Hz - 16 kHz) ± 3dB
Microphone Technology 16-Element Digital Array
Polar Pattern Beamformed
Maximum SPL (at < 1% THD) 109dB
Dynamic Range (THD+N < 1%) 92dB, A-Weighted
Connector RJ-45
Power Custom/Proprietary
Compliance FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Dimensions (H x Dia) 0.6" (15 mm) x 4.3" (110 mm)
Weight 0.5 lbs (231 g)
