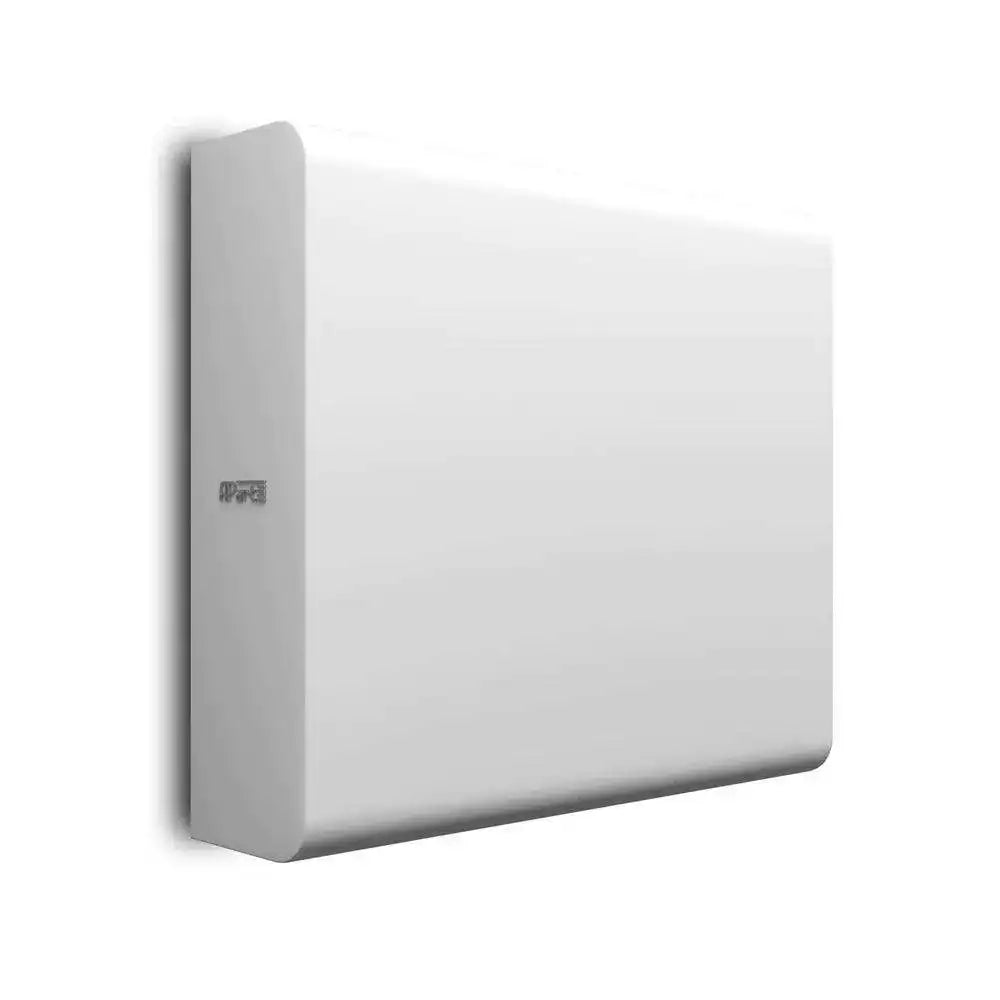

Biamp Desono SUBLIME Ultra compact 6.5" dual coil passive subwoofer, 2 x 8 ohms / 2 x 80 watts, full range loudspeaker level output to satelites, wall bracket included (White) - 911.0646.900
Roll over image to zoom in Click on image to zoom
Biamp Desono SUBLIME Ultra compact 6.5" dual coil passive subwoofer, 2 x 8 ohms / 2 x 80 watts, full range loudspeaker level output to satelites, wall bracket included (White) - 911.0646.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono SUBLIME Ultra compact 6.5" dual coil passive subwoofer, 2 x 8 ohms / 2 x 80 watts, full range loudspeaker level output to satelites, wall bracket included (White) - 911.0646.900

Biamp SKU: 911.0646.900
No reviews
Price:
$464.00

Description

The SUBLIME is an ultra-compact passive 6.5-inch dual coil subwoofer that offers the ultimate blend of a compact size and deep, fat basses. Thanks to the built-in X-over, this subwoofer is the ideal partner for the MASK2 top speakers.

This thinnest subwoofer on the market (only 12 cm deep) allows for easy integration into any interior: on the wall (mounted with the included wall mounting brackets), behind curtains or even under furniture. Speaker and connection terminals are invisible when mounted on the wall using the included mounting brackets. It may look like a small heating radiator, but instead of heat, it will radiate musical vibes in your room.

The SUBLIME subwoofer has a built-in stereo X-over filter, thus eliminating the need for external filters. The X-over filter separates the high frequencies and sends them directly to the top speakers. Optionally, you can use the SUBLIME speaker in an active speaker setup, using an active filter and separate power amplifier. You can use the SUBLIME up to 200 Hz.

Available in black (-BL) or white (-W).

  • Small footprint (only 4.7" [120 mm] wide)
  • Clean, clear bass response
  • Dual coil woofer for stereo operation
  • Wall mountable (brackets included)
  • Integrated crossover outputs for stereo satellite speakers
  • Overload protection for 24/7 failsafe operation

Product Specs

Operating Mode Passive
Operating Environment Indoor
Operating Range (-3dB) 50 Hz to 200 Hz
Nominal Beamwidth (H x V) Omnidirectional
Transducers 1 x 6.5" (165 mm) dual voice coil (treated paper cone)
Continuous Power Handling @ Nominal Impedance 18V 2 x 40W @ 8Ω (160W peak)
Nominal Sensitivity @ 1m @ 1W 85 dB
@ 2.83V 85 dB
Nominal Maximum SPL @ 1m Peak 107 dB
Continuous 101 dB
Protection 3-step self-resetting protection
Recommended Amplifiers 40W - 80W @ 8Ω (19V - 27V) per input
Input Connection (4x) 5-way binding posts
Output Connection (4x) 5-way binding posts
Mounting Provisions Wall mount bracket
Environmental IP20 per IEC 60529
Dimensions H x W x D 16.5" x 4.7" x 18.5" (420 mm x 120 mm x 470 mm)
Weight 17.6 lbs (8 kg)
Finish MDF, matte finish, White or Black
Grille Cloth, White (RAL 9003) or Black (RAL 9011)
Accessories (included) Wall mount bracket; installation template
