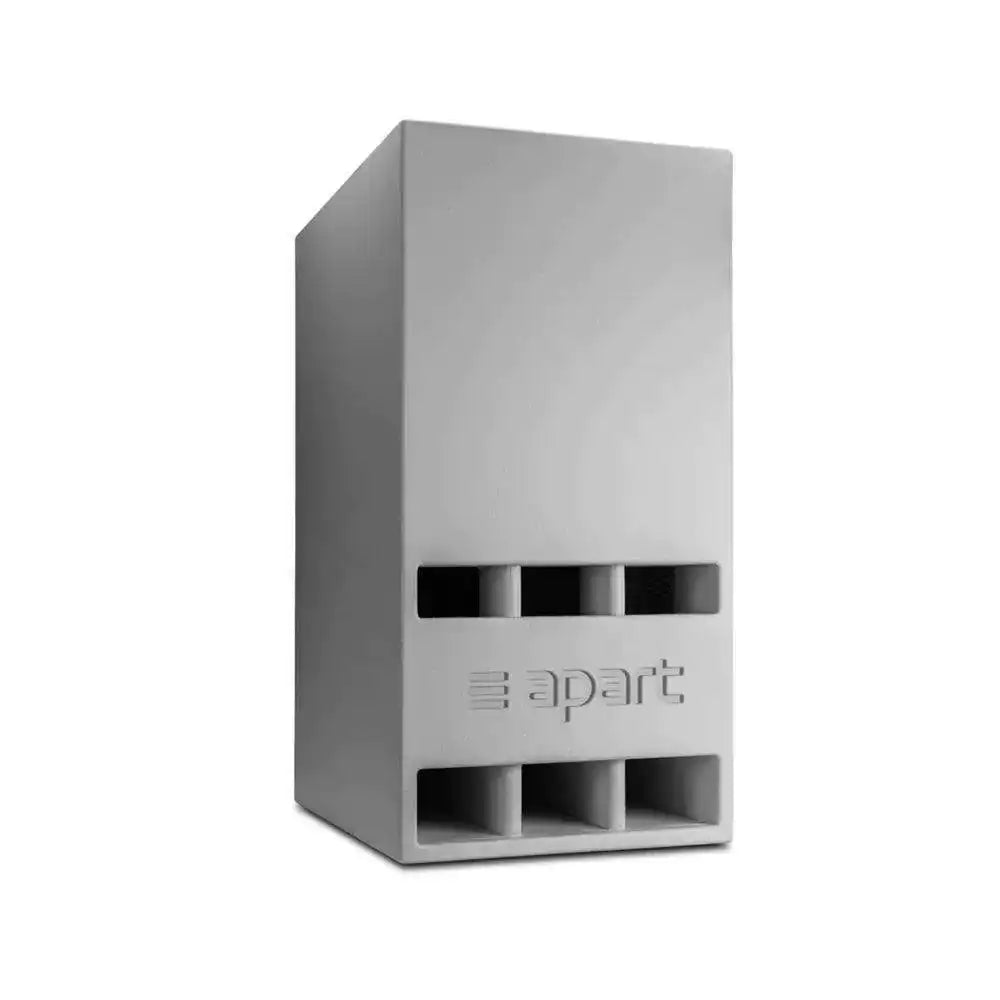

Biamp Desono SUB2400 Passive 2 x 10" subwoofer, 4 ohms or 16 ohms / 600 watts, plywood construction with structured paint, pole mount adaptor (White) - 911.1494.900
Roll over image to zoom in Click on image to zoom
Biamp Desono SUB2400 Passive 2 x 10" subwoofer, 4 ohms or 16 ohms / 600 watts, plywood construction with structured paint, pole mount adaptor (White) - 911.1494.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono SUB2400 Passive 2 x 10" subwoofer, 4 ohms or 16 ohms / 600 watts, plywood construction with structured paint, pole mount adaptor (White) - 911.1494.900

Biamp SKU: 911.1494.900
No reviews
Price:
$882.00

Description

The SUB2400 is a powerful passive dual 10” subwoofer that will deliver an incredible punchy bass that makes your trousers vibrate. Together with the MASK6 or MASK8 cabinet loudspeakers and the 3-channel digital amplifier (CHAMP-3D) you get a perfect and fail-safe sound system that is suitable for bars, pubs, clubs, restaurants, taverns... where often 'dance level' music is required.

This subwoofer has two band pass chambers where each chamber is equipped with a 10” dual coil woofer. Together with the push-pull technology this results in a relatively small cabinet with a huge output and very low distortion. Thanks to the small size of the woofers, less mass has to be moved. The bass reproduction is a lot more “punchy” and “faster” compared to 15” or 18” cabinets. The SUB2400 has been compared with a single 15” and 18” sub-woofers and the results were astonishing in favor of the SUB2400!

SUB2400 can be driven in 4 ohms or 16 ohms mode. Selection is done by the big switch at the back of the subwoofer. Especially with long cable runs, the 16 ohms mode is advised. Less power is lost and the bass response will be a lot better. The 16 ohms mode also allows you to use multiple cabinets.

  • Smooth, strong bass response
  • Dual coil 10” subwoofers in push-pull configuration
  • Low frequency boost for distributed applications
  • 600W power handling
  • Switchable 4Ω or 16Ω impedance
  • Suitable for in-wall, under-seating, under-stage and other 'hidden' LF applications

Product Specs

Operating Mode Passive
Operating Environment Indoor
Operating Range (-3dB) 45 Hz to 150 Hz
Nominal Beamwidth (H x V) Omnidirectional
Transducers LF 2 x 10" (254 mm) treated paper cones
Continuous Power Handling @ Nominal Impedance 49V 600W @ 4Ω (2400W peak)
Nominal Sensitivity @ 1m @ 1W 99 dB
@ 2.83V 99 dB
Nominal Maximum SPL @ 1m Peak 133 dB
Continuous 127 dB
Recommended Amplifiers 250W - 750W @ 4Ω (49V - 69V)
Input Connection 2 Speakon™ connectors wired in parallel
Controls Rocker switch for 4Ω or 16Ω operation
Mounting Provisions None
Environmental IP20 per IEC 60529
Dimensions H x W x D 27.6" x 13.8" x 17.7" (700 mm x 350 mm x 450 mm)
Weight 64.4 lbs (29.2 kg)
Finish Plywood, matte finish, Black
Accessories (included) None
