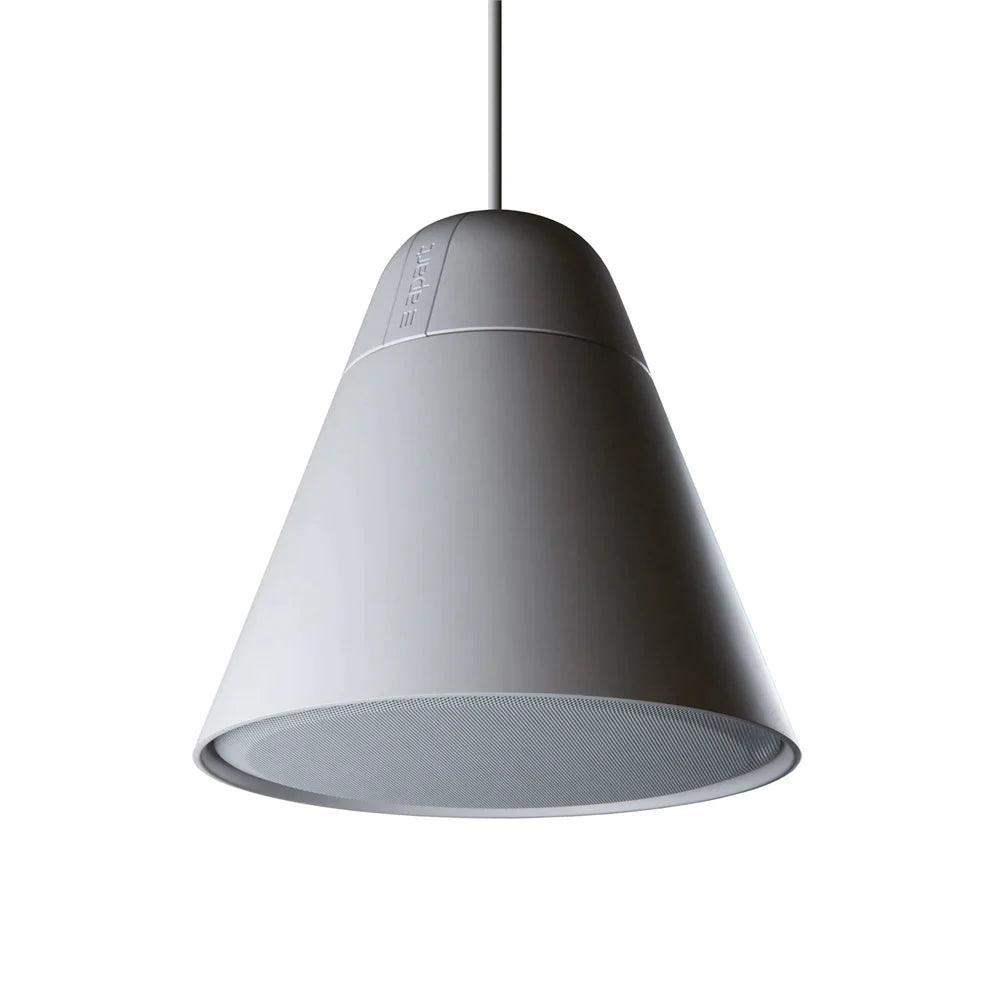

Biamp Desono P60DT 6.5" two-way, pendant loudspeaker 70-100 volt / 60 watts, 16 ohms / 120 watts (White) - 911.0648.900
Roll over image to zoom in Click on image to zoom
Biamp Desono P60DT 6.5" two-way, pendant loudspeaker 70-100 volt / 60 watts, 16 ohms / 120 watts (White) - 911.0648.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono P60DT 6.5" two-way, pendant loudspeaker 70-100 volt / 60 watts, 16 ohms / 120 watts (White) - 911.0648.900

Biamp SKU: 911.0648.900
No reviews
Price:
$360.00

Description

The P60DT 6.5" two-way, pendant loudspeaker brings an exceptional dispersion to areas and rooms with high-ceilings or large open spaces, while offering a clear speech and musical purity. Available in black and white, P60DT is suitable for a wide range of background and foreground sound applications. The dual Gripple™ wire suspension system, euroblock in/out connector, loudspeaker cables and 70/100-volt power rotary with 16 ohm connectivity can be hidden after installation by the innovatively designed end-cap. The attractive aesthetics and ease-of-installation make this speaker a great choice.

  • Installer-friendly end cap with cut-out slot and integrated magnetic closure; hides the tap selector and all cable connections
  • Two tooless Gripple® cable fasteners are provided for a safe, secure, and fast installation
  • Euroblock connector with permanent pass-through
  • Tap switch allows for 70V/100V or 16Ω low impedance operation
  • Tuned bass reflex port for optimized low frequency performance
  • Loudspeaker overload protection for 24/7 failsafe operation
  • ETL listed to conform with UL Std 1480; Certified to CSA C22.2#62368-1

Product Specs

Operating Mode Passive
Operating Environment Indoor
Operating Range (-10dB) 75 Hz to 22 kHz
Nominal Beamwidth (H x V) 120° conical
Transducers LF 1 x 6.5" (165 mm) coated paper cone
HF 1 x 1" (25 mm) soft dome
Continuous Power Handling @ Nominal Impedance 31V 60W @ 16Ω (240W peak)
Nominal Sensitivity @ 1m @ 1W 89 dB
@ 2.83V 86 dB
Nominal Maximum SPL @ 1m Peak 113 dB
Continuous 107 dB
Transformer 70V: 60W, 30W, 15W, 7.5W, 3.75W
100V: 60W, 30W, 15W, 7.5W
Protection Self-resetting loudspeaker protection
Recommended Accessories 75 Hz, 12dB/Oct High Pass
Recommended Amplifiers 60W - 120W @ 16Ω (31V - 44V)
Input Connection 4-way Euroblock connector with permanent pass-through
Controls Power tap / low impedance selector switch
Mounting Provisions Two 5m (16 ft) wire suspension cables (one as primary support, one as a safety cable), of high tensile galvanized steel wire rope with integrated spring clips for attaching the cable to the bracket and Gripple cable fasteners.
Compliance ETL listed to comply with UL Std 1480, Certified to CSA C22.2#62368-1
Suspension system and Gripple cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81
Dimensions H x Dia. 10.4" x 10.9" (264 mm x 276 mm)
Weight 8.5 lbs (3.9 kg)
Finish ABS plastic, matte finish, White or Black
Grille Powder-coated perforated steel, White (RAL 9011) or Black (RAL 9010) finish
Accessories (included) Two wire suspension cables; Two Gripple cable fasteners; End cap and cable cover
Accessories MC-PHK16-12PK: Pendant Hang Kit with (12) 5m (16 ft) lengths of Magic Cable and connectors to suspend snaphook-mounted pendant loudspeakers, black or white
