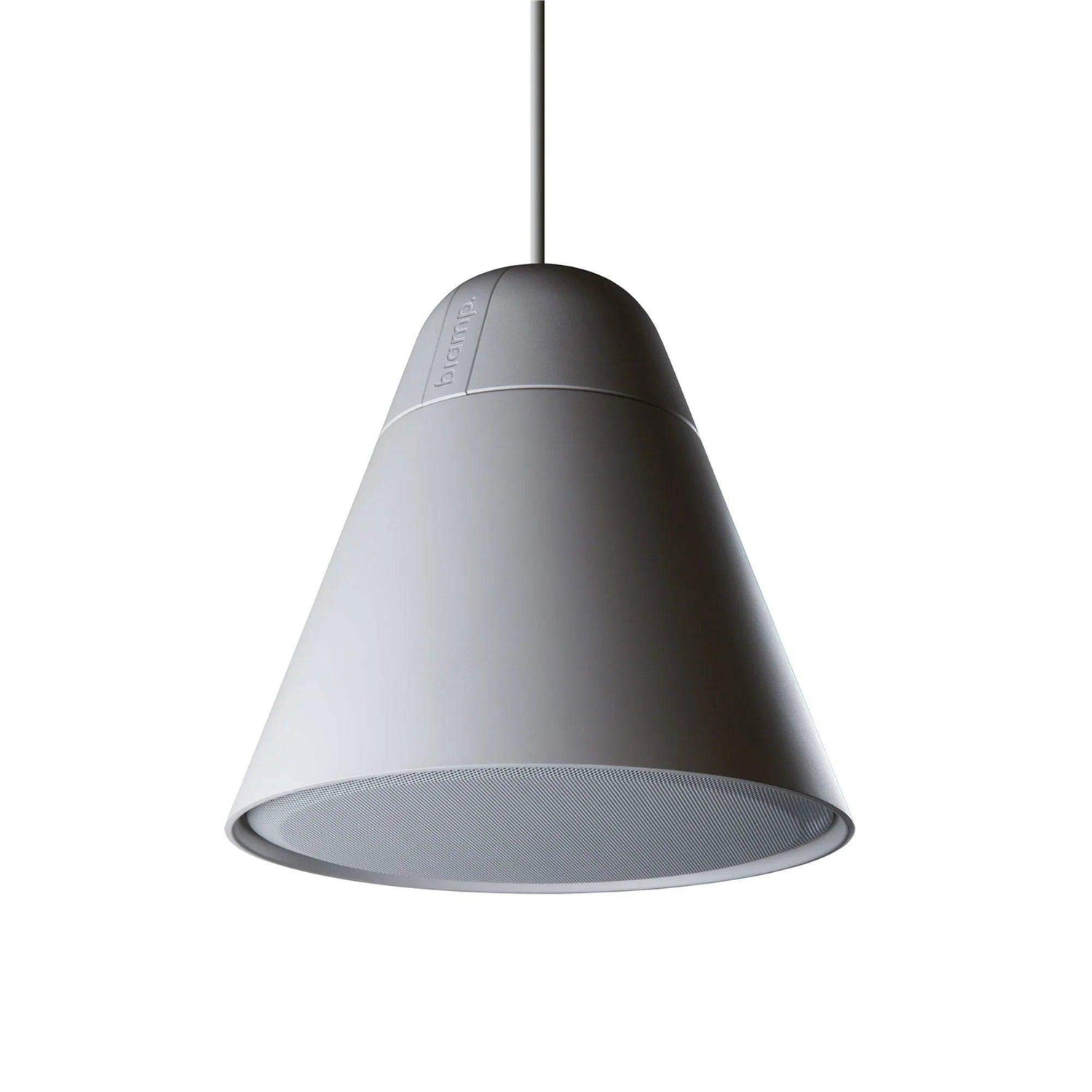

The P30DT two-way, 4.25-inch pendant loudspeaker brings exceptional dispersion to areas with open ceilings, while offering clear speech and musical purity. Available in black or white, the P30DT is suitable for a wide range of background and foreground audio applications.
The Gripple cable fasteners, Euroblock connector, and 70V/100V tap switch can be hidden after installation by the innovatively designed end cap. The attractive aesthetics and ease-of-installation make this product an industry standard.
- Installer-friendly end cap with cut-out slot and integrated magnetic closure; hides the tap selector and all cable connections
- Two tooless Gripple® cable fasteners are provided for a safe, secure, and fast installation
- Euroblock connector with permanent pass-through
- Tap switch allows for 70V/100V or 16 ohm low impedance operation
- Tuned bass reflex port for optimized low frequency performance
- Loudspeaker overload protection for 24/7 failsafe operation
- ETL listed to conform with UL Std 1480A; Certified to CSA C22.2#62368-1
|Operating Range (-10dB)||75 Hz to 20 kHz|
|Nominal Beamwidth (H x V)||120°, conical|
|Transducers||LF 1 x 4.25" (108 mm) coated paper cone
HF 1 x 1" (25 mm) soft dome
|Continuous Power Handling @ Nominal Impedance||28V 50W @ 16 ohms (200W peak)|
|Nominal Sensitivity @ 1m||@ 1W 87 dB
@ 2.83V 84 dB
|Nominal Maximum SPL @ 1m||Peak 110 dB
Continuous 104 dB
|Transformer||70V: 30W, 15W, 7.5W, 3.75W, 1.75W
100V: 30W, 15W, 7.5W, 3.75W
|Protection||Self-resetting loudspeaker protection|
|Recommended Accessories||75 Hz, 12dB/Oct High Pass|
|Recommended Amplifiers||50W - 100W @ 16 ohms, (28V - 40V)|
|Input Connection||4-way Euroblock connector with permanent pass-through|
|Controls||Power tap / low impedance selector switch|
|Mounting Provisions||Two 5m (16.4 ft) wire suspension cables (one as primary support, one as a safety cable), of high tensile galvanized steel wire rope with integrated spring clips for attaching the cable to the bracket and Gripple cable fasteners.|
|Compliance||ETL listed to comply with UL Std 1480A, Certified to CSA C22.2#62368-1
Suspension system and Gripple cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81.
|Dimensions H x W||223 mm x 233 mm (8.78" x 9.17")|
|Weight||2.6 kg (5.7 lbs)|
|Finish||ABS plastic, matte finish, White or Black|
|Grille||Powder-coated perforated steel, White (RAL 9011) or Black (RAL 9010) finish|
|Accessories (included)||Two wire suspension cables; Two Gripple cable fasteners; End cap and cable cover|
|Accessory (optional)||MC-PHK16-12PK: Pendant Hanging Kit with twelve (12) 5m (16ft) lengths of Magic Cable and the connectors to suspend snap-hook-mounted pendant loudspeakers. Available in White or Black.|
