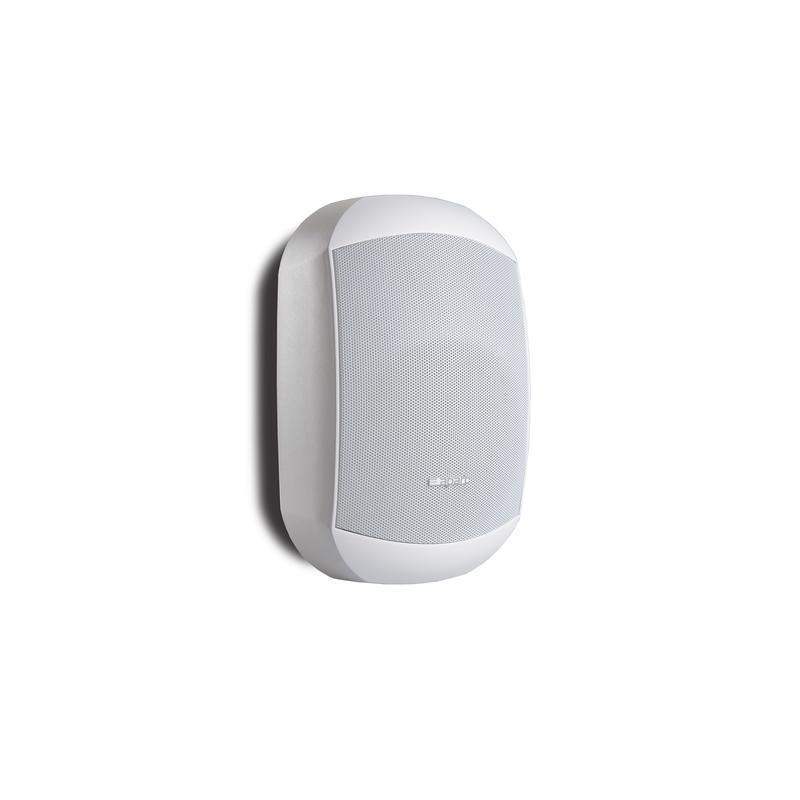

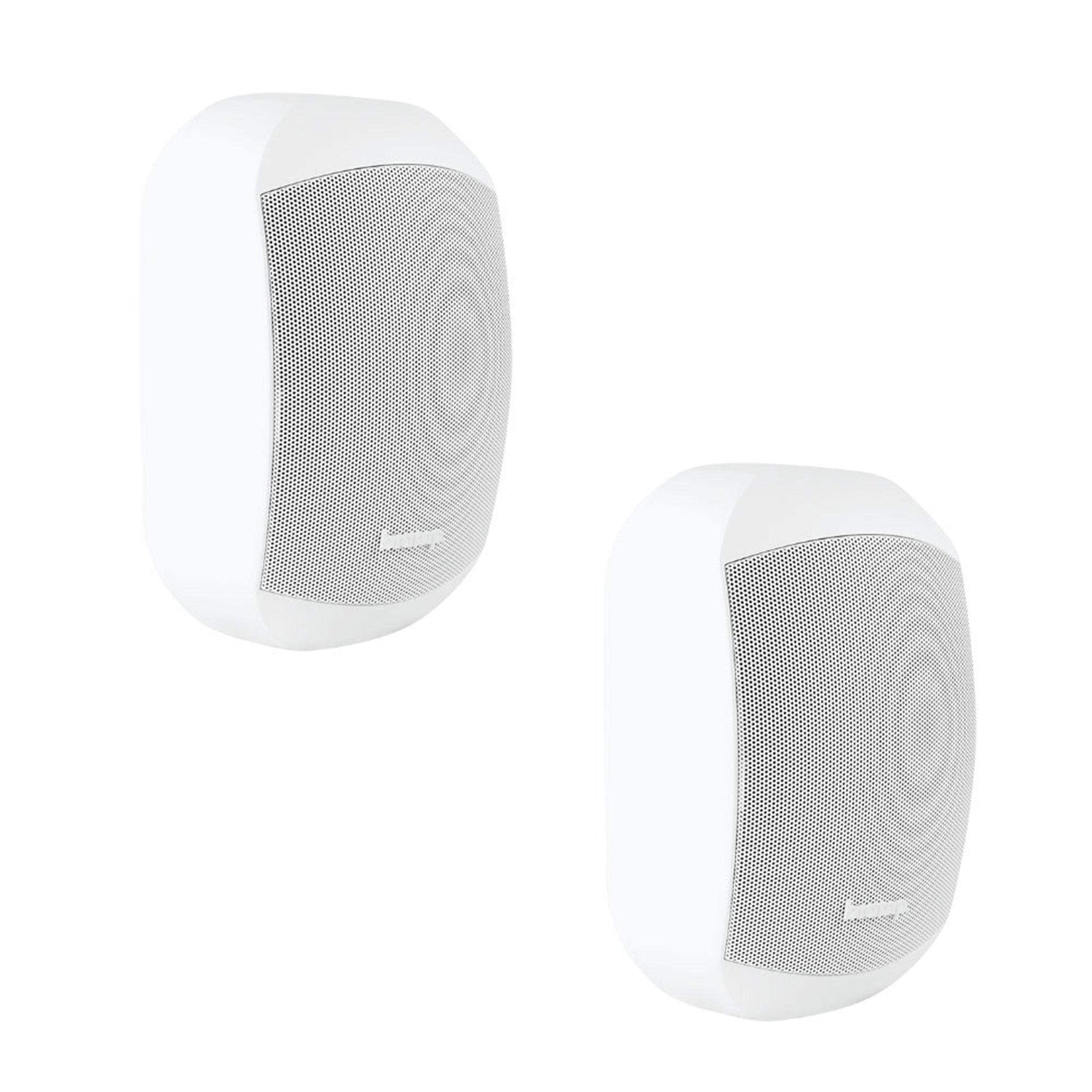

Biamp Desono MASK4CT 4.25" small design two-way surface mount loudspeaker, 70 - 100 volt / 20 watts or 16 ohms / 70 watts, CLICKMOUNT bracket and safety cable included (Pair, White) - 911.0640.900
Biamp Desono MASK4CT 4.25" small design two-way surface mount loudspeaker, 70 - 100 volt / 20 watts or 16 ohms / 70 watts, CLICKMOUNT bracket and safety cable included (Pair, White) - 911.0640.900
Roll over image to zoom in Click on image to zoom
Biamp Desono MASK4CT 4.25" small design two-way surface mount loudspeaker, 70 - 100 volt / 20 watts or 16 ohms / 70 watts, CLICKMOUNT bracket and safety cable included (Pair, White) - 911.0640.900
Biamp Desono MASK4CT 4.25" small design two-way surface mount loudspeaker, 70 - 100 volt / 20 watts or 16 ohms / 70 watts, CLICKMOUNT bracket and safety cable included (Pair, White) - 911.0640.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono MASK4CT 4.25" small design two-way surface mount loudspeaker, 70 - 100 volt / 20 watts or 16 ohms / 70 watts, CLICKMOUNT bracket and safety cable included (Pair, White) - 911.0640.900

Biamp SKU: 911.0640.900
No reviews
Price:
$280.00

Description

Sold as a pair, the MASK4CT has a unique design and delivers a crystal-clear sound for all music applications. The MASK4CT can be used as a 70V/100V speaker with power tapping on 20 - 10 - 5 - 2.5 watts in 100V or as a low impedance 16 ohm speaker. This results in a versatile speaker that can be used in any location and any application. The cabinet is made of high quality enforced PP4 ABS, with an aluminum grill. The design of the MASK4CT ensures high quality and long-lasting performance in indoor and outdoor use, even under extreme weather conditions.

The MASK4CT has a powerful 4.25” coated paper cone woofer and a 1” silk dome tweeter which results in a high SPL and extremely low distortion. This ensures an unprecedented clarity over the whole frequency spectrum. The built-in 3-step protection and the high-quality components make the MASK4CT an ultra- reliable, fail safe loudspeaker even at high power loads. Thanks to the revolutionary design of the ClickMount bracket, the MASK4CT is fast and easy to install. The pre-defined clicks on the Clickmount ensure a perfect alignment for every loudspeaker. With the discrete cable management system, integrated spirit level and in/out connectors, the full cabling is done on the bracket.

Available in black or white.

  • IP64 rated for outdoor applications such as patios or concourses
  • Waterproof connector sealing for outdoor applications
  • Innovative ClickMount™ bracket allows all audio connections to be made at the bracket
  • Integrated spirit level for fast, hassle-free positioning and mounting
  • Tap switch allows for 70V/100V or 16 ohm low impedance operation
  • Loudspeaker overload protection for 24/7 failsafe operation

Product Specs

Operating Mode Passive
Operating Environment Indoor/Outdoor
Operating Range (-10dB) 70 Hz to 22 kHz
Nominal Beamwidth (H x V) 100 x 70
Transducers LF 1 x 4.25" (108 mm) coated paper cone
HF 1 x 1" (25 mm) soft dome
Continuous Power Handling @ Nominal Impedance 28V 50W @ 16Ω (200W peak)
Nominal Sensitivity @ 1m @ 1W 88 dB
@ 2.83V 85 dB
Nominal Maximum SPL @ 1m Peak 111 dB
Continuous 105 dB
Transformer 70V: 20W, 10W, 5W, 2.5W, 1.25W
100V: 20W, 10W, 5W, 2.5W
Protection 3-step self-resetting protection
Recommended Amplifiers 50W - 100W @ 16Ω (28V - 40V)
Input Connection Audio connections made at the ClickMount bracket; lever-action input and output terminals accept up to 16 AWG conductors
Controls Power tap / low impedance selector switch
Mounting Provisions ClickMount bracket
Environmental IP64 per IEC 60529
Dimensions H x W x D 238 mm x 144 mm x 144 mm (9.4" x 5.7" x 5.7")
Weight 2.3 kg (5 lbs)
Finish ABS plastic, matte finish, White or Black
Grille Aluminum, White (RAL 9016) or Black (RAL 9011) finish
Accessories (included) ClickMount bracket; safety cable
Accessory (optional) MASKCL(-BL/-W): 90° mounting bracket, available in black or white
MASKCV(-BL/-W): 2-cluster mounting bracket, available in black or white
MASKCW(-BL/-W): 4-cluster mounting bracket, available in black or white
