Product Overview

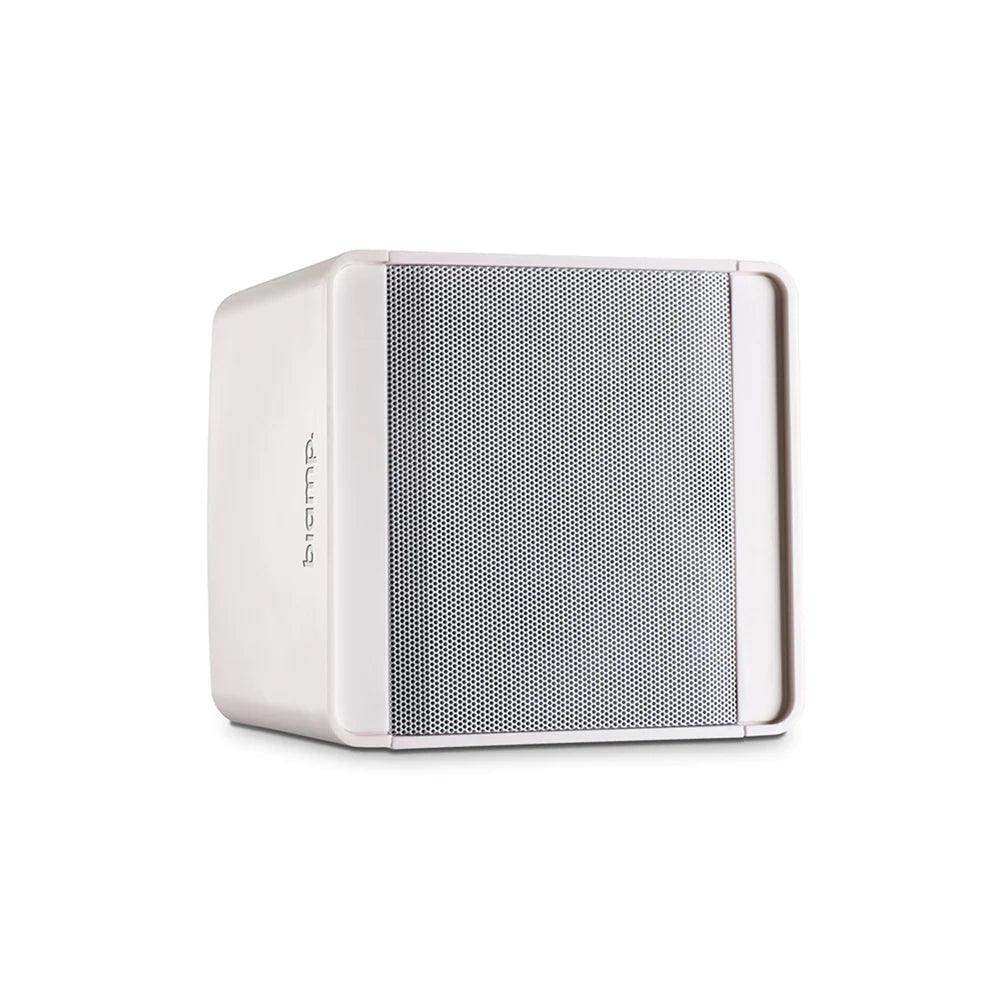

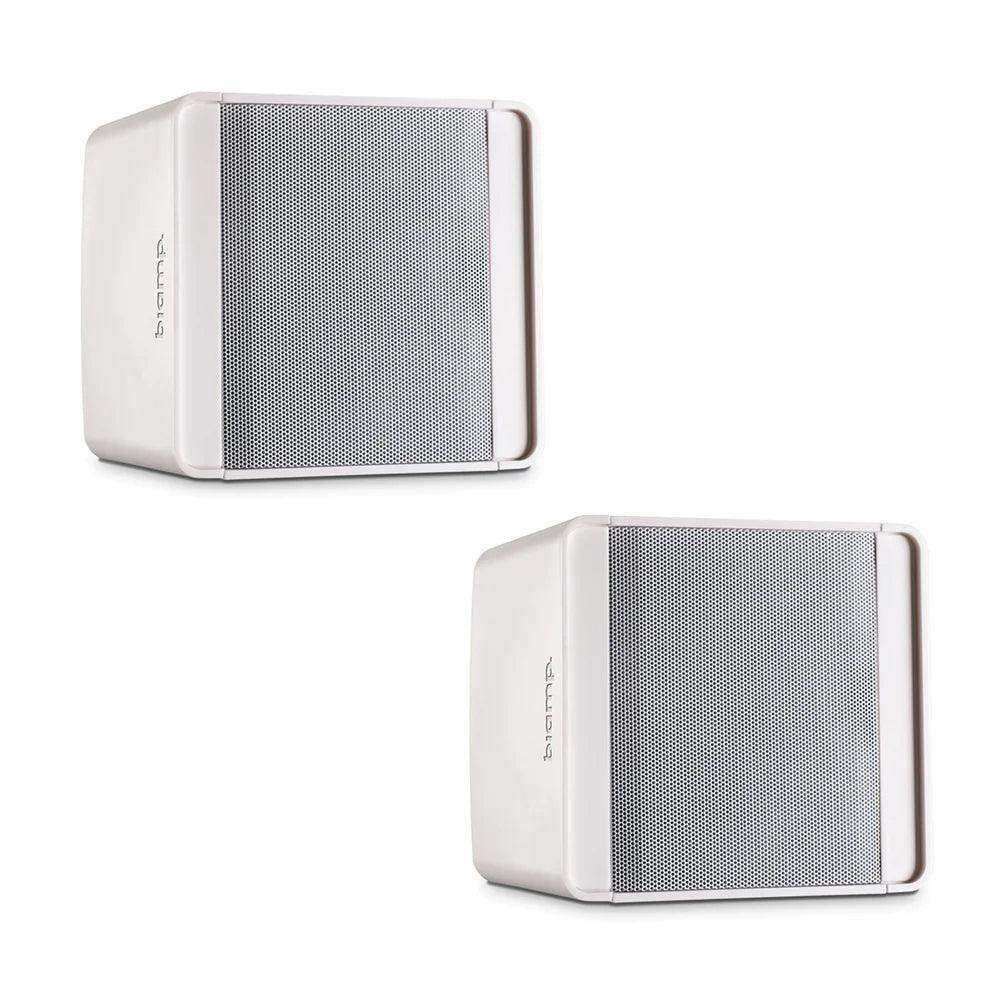

The Biamp Desono KUBO5T is a 5.25-inch two-way compact surface-mount loudspeaker, sold as a pair in White. It operates on 70V/100V distribution lines or as a 16-ohm low-impedance loudspeaker producing up to 80 watts dynamic power, and ships with a U-bracket and safety cable.
Product Description
Featuring a cube-shaped cabinet with a bass reflex port, the KUBO5T combines a 5.25-inch coated paper LF cone with a 1-inch soft dome HF driver for high speech intelligibility and full-range music reproduction. A tap switch selects 70V/100V transformer operation or 16-ohm low-impedance mode. The K-Mount bracket provides cable management and 140-degree vertical or horizontal mounting flexibility, while euroblock in/link connectors allow daisy-chaining of multiple units. Installer-friendly endcaps held by 14 integrated neodymium magnets conceal connections and bracket hardware on both sides. The loudspeaker is IP40 rated and includes 3-step self-resetting overload protection for 24/7 operation.
Key Features
- Two-way compact design — Pairs a 5.25-inch coated paper LF cone with a 1-inch soft dome HF driver for clear speech and full-range music.
- Selectable operation — A tap switch allows 70V/100V transformer or 16-ohm low-impedance operation up to 80 watts dynamic power.
- K-Mount bracket — Provides cable management and 140-degree vertical or horizontal mounting flexibility on wall or ceiling.
- Daisy-chain wiring — Two 2-way euroblock connectors enable easy in/link daisy-chaining of multiple KUBO loudspeakers.
- Concealed connections — Magnetically attached endcaps held by 14 neodymium magnets hide audio connections and bracket hardware.
- Overload protection — 3-step self-resetting protection supports 24/7 failsafe operation.
Technical Specifications
| Operating Mode | Passive |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 94 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 80 deg x 80 deg |
| Transducers | LF 1 x 5.25" (133 mm) coated paper cone; HF 1 x 1" (25 mm) soft dome |
| Continuous Power Handling | 28V 50W @ 16 ohm (200W peak) |
| Nominal Sensitivity @ 1m | 87 dB @ 1W; 84 dB @ 2.83V |
| Nominal Maximum SPL @ 1m | Peak 110 dB; Continuous 104 dB |
| Transformer | 70V: 30W, 15W, 7.5W, 3W, 1.5W; 100V: 30W, 15W, 6W, 3W |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 50W - 100W @ 16 ohm (28V - 40V) |
| Input Connection | (2x) 2-way Euroblock connectors, up to 12 AWG (2.5 mm2) |
| Controls | Power tap / low impedance selector switch |
| Environmental | IP40 per IEC 60529 |
| Dimensions (H x W x D) | 155 mm x 164 mm x 136 mm (6.1" x 6.4" x 5.3") |
| Weight | 2 kg (4.4 lbs) |
| Finish | ABS plastic, matte, White |
| Accessories (included) | U-bracket; safety cable |
