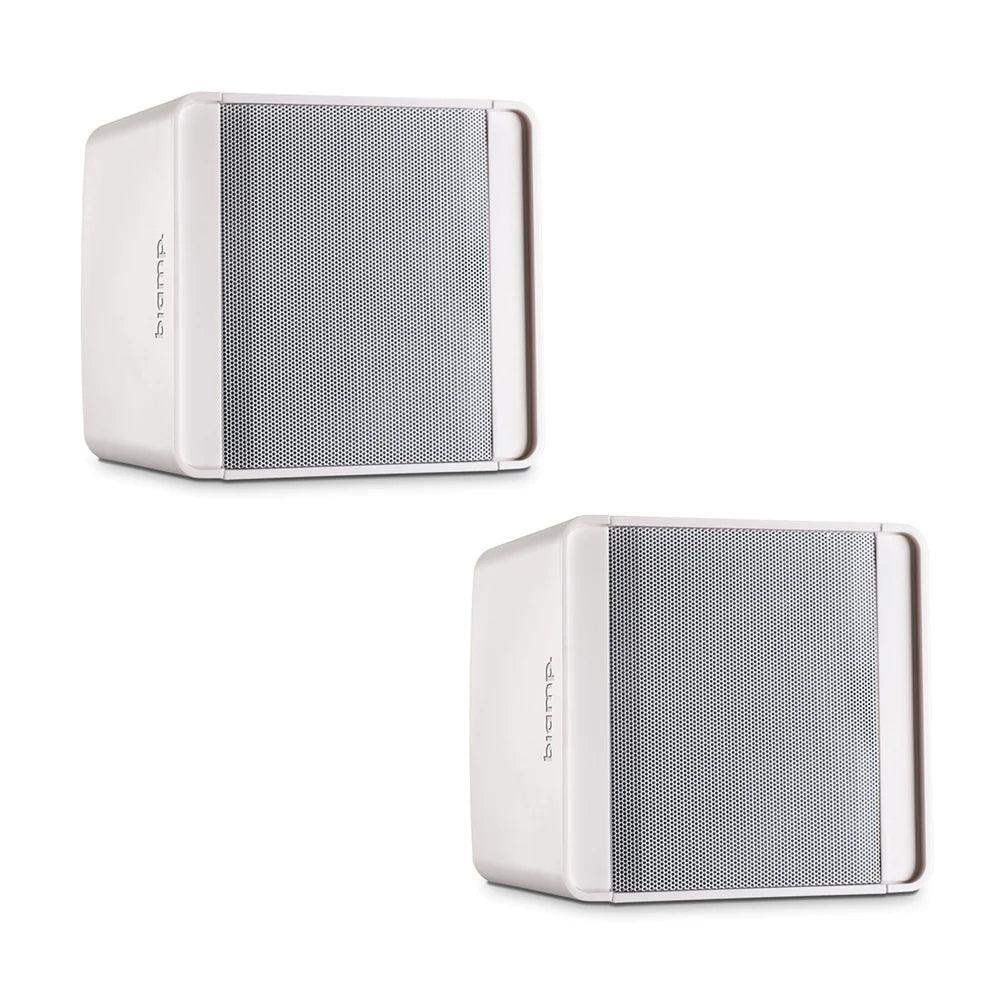

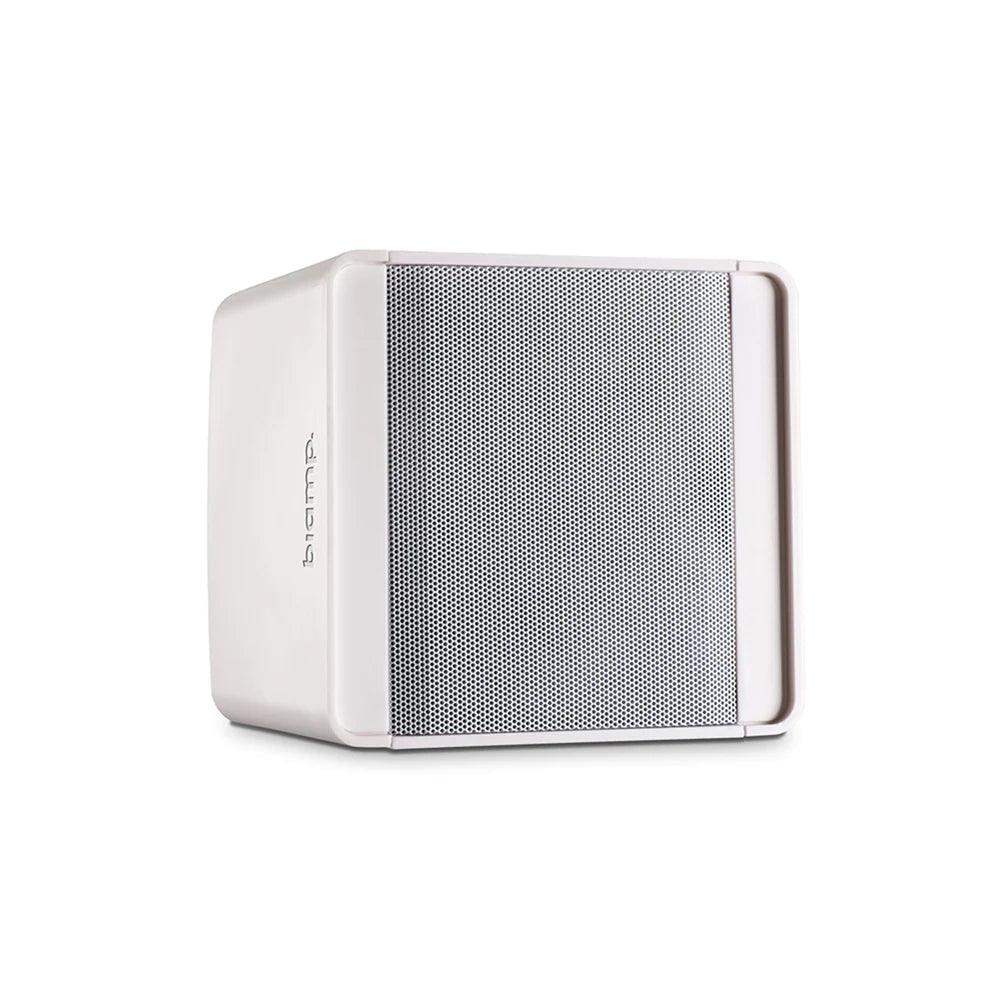

Biamp Desono KUBO3T 3" compact design full range surface mount loudspeaker, 70 - 100 volt / 10 watts or 16 ohms / 40 watts, mounting bracket and safety cable included (Pair, White) - 911.0686.900
Biamp Desono KUBO3T 3" compact design full range surface mount loudspeaker, 70 - 100 volt / 10 watts or 16 ohms / 40 watts, mounting bracket and safety cable included (Pair, White) - 911.0686.900 is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping over $250.00
The symmetrical cube-shaped designed KUBO3T comes with a 3” full-range driver unit and bass reflex port. It can be used as a 70/100 volt or low impedance 16 ohms loudspeaker producing up to 40 watts dynamic power. The K-Mount bracket offers easy cable management and 140° vertical or horizontal mounting flexibility. Combined with the special designed fixing K-bolts you can install the loudspeaker in a safe and comfortable way on any type of wall or ceiling. Easy daisy chaining of multiple KUBO loudspeakers can be done via the in / link connection with euroblock connectors. The installer friendly endcaps, held in place by 14 integrated strong neodymium magnets, hide all connections and bracket hardware on both sides. This top-notch product offers amazing sound quality and performance in a discrete and neutral housing fitting any kind of interior.
Available in black or white.
Features
- High speech intelligibility coupled with full-range music reproduction
- Stylish yet subtle design; blends well in many environments
- Can be mounted to track lighting rails through innovative optional accessories
- IP40 rated
- Tap switch allows for 70V/100V or 16Ω low impedance operation
- Loudspeaker overload protection for 24/7 failsafe operation
Specifications
Operating Mode | Passive |
Operating Environment | Indoor |
Operating Range (-10dB) | 115 Hz to 20 kHz |
Nominal Beamwidth (H x V) | 100° x 100° |
Transducers | 1 x 3" (76 mm) polypropylene cone |
Continuous Power Handling @ Nominal Impedance | 20V 25W @ 16Ω (100W peak) |
Nominal Sensitivity @ 1m | @ 1W 86 dB @ 2.83V 83 dB |
Nominal Maximum SPL @ 1m | Peak 106 dB Continuous 100 dB |
Transformer | 70V: 10W, 5W, 2.5W, 1.25W 100V: 10W, 5W, 2.5W |
Protection | 3-step self-resetting protection |
Recommended Amplifiers | 25W - 50W @ 16Ω (20V - 28V) |
Input Connection | (2x) 2-way Euroblock connectors for daisy-chaining; connectors accept up to 12 AWG (2.5 mm²)conductors |
Controls | Power tap / low impedance selector switch |
Mounting Provisions | U-bracket |
Environmental | IP40 per IEC 60529 |
Dimensions H x W x D | 125 mm x 131 mm x 109 mm (4.9" x 5.2" x 4.3") |
Weight | 1.2 kg (2.6 lbs) |
Finish | ABS plastic, matte finish, White or Black |
Grille | Steel, White (RAL 9016) or Black (RAL 9011) finish |
Accessories (included) | U-bracket; safety cable |
Accessories (optional) | LRABAS(-BL/-W): Basic light rail adaptor, black or white LRAPRE(-BL/-W): Premium light rail adaptor, black or white |
