Biamp Desono EX-S8-UB 8” Coaxial Surface Mount Indoor/Outdoor Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation, included indexing u-bracket and weather cover (Black) - 911.1816.900

Biamp SKU: 911.1816.900
No reviews

Sale price$782.00


The Desono EX-S8 is an 8” two-way surface mount loudspeaker that provides detailed voicing with projection. It is an excellent fill or distributed loudspeaker for systems where pristine voice clarity, higher output and more bass is desired.

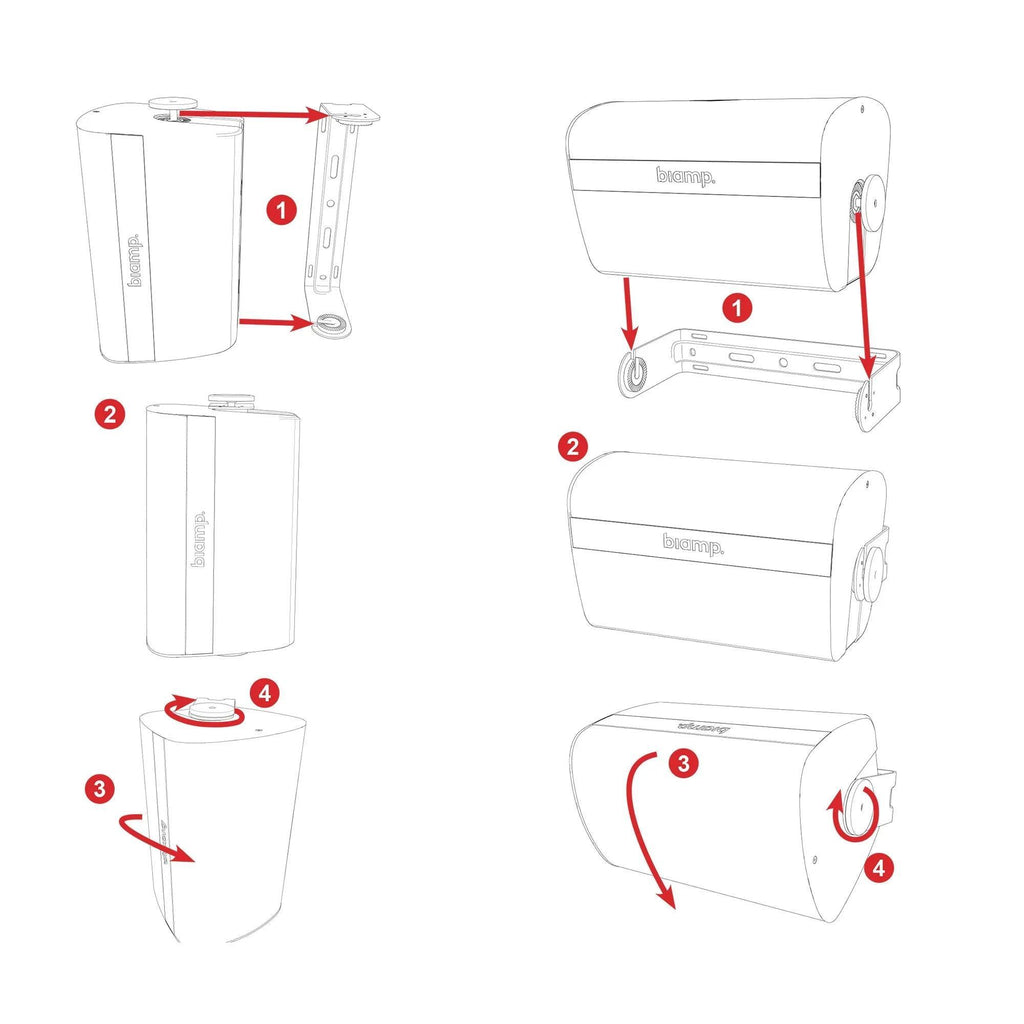

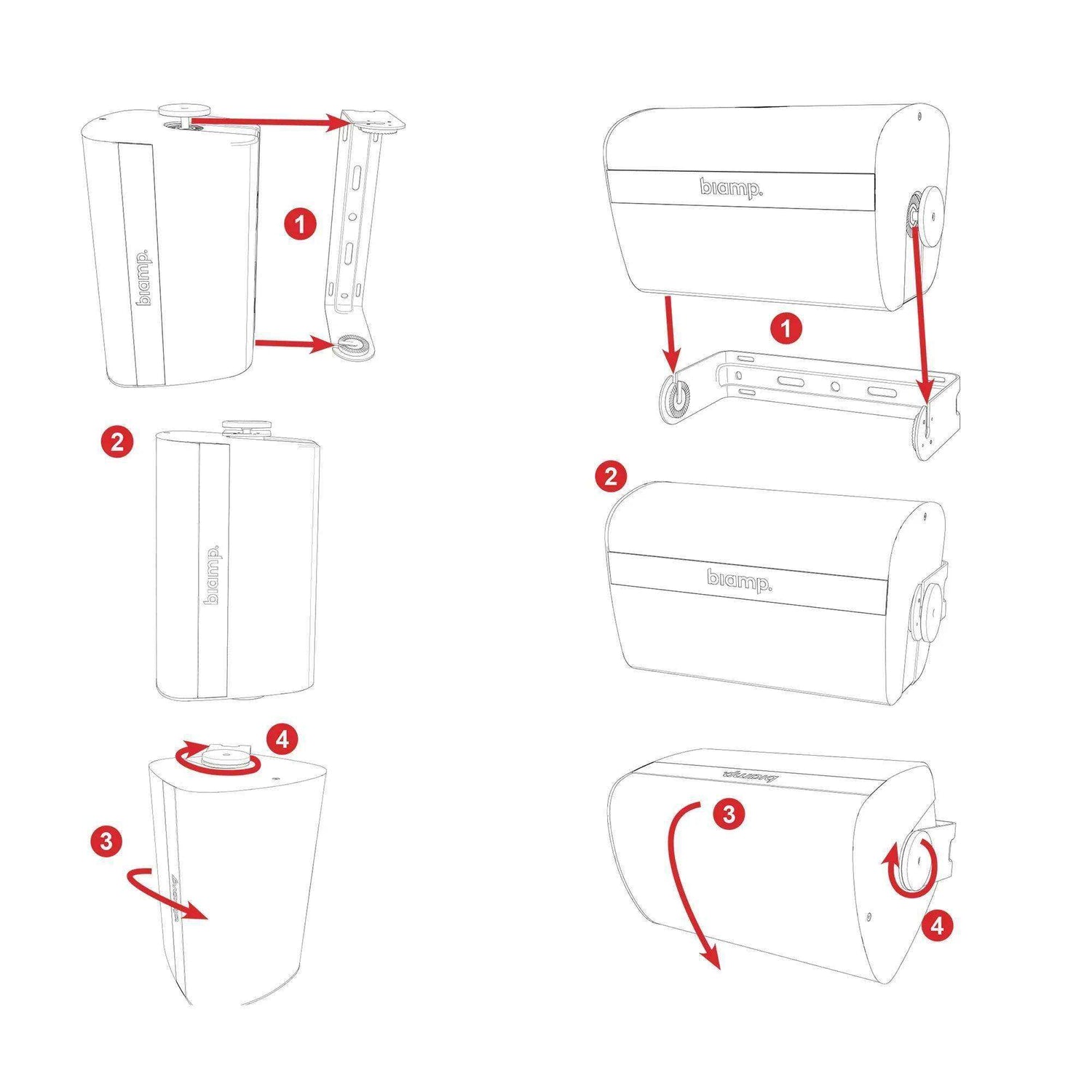

Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.

  • Exceptional audio clarity with small footprint and attractive styling
  • Uniform coverage from coaxially mounted HF/LF drivers
  • 5-position switch selects 70V/100V taps or low impedance bypass
  • Utilizes innovative ClickMount pan-tilt and U-brackets for mounting
  • ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
  • EN54-24 certified

Product Specs

Operating Mode Passive with selectable low-impedance or 70 V/100 V operation
Operating Environment Indoor/Outdoor
Operating Range (-10dB) 55 Hz to 20 kHz
Nominal Beamwidth (H x V) 105° x 105°
Transducers LF 1 x 8" (200 mm) treated paper cone
HF 1 x 1.4" (35 mm) voice coil compression driver
Sensitivity @ 1 m 90 dB (2.83 V)
90 dB (1 W, 8 Ω)
Nominal Continuous Power Handling 45 V (250 W, 8 Ω Nominal Impedance)
Nominal Maximum SPL (Processed) @ 1 m Continuous 115 dB
Peak 121 dB
Rated Continuous Voltage 39.8 V (32 dBV)
Rated Maximum SPL (Processed) @ 1 m Continuous 112 dB
Peak 124 dB
Transformer 70 V: 80 W, 40 W, 20 W, 10 W
100 V: 80 W, 40 W, 20 W
Crossover / Protection 1.55 kHz crossover, driver protection circuitry
Required Accessories 50 Hz, 12 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers 250 W - 500 W, 8 Ω (45 V - 63 V)
Input Connection Lever-actuated wire clamping 4-position terminal block with pass-through
Controls Wattage / low impedance selector switch
Mounting Provisions ClickMount pan-tilt bracket or ClickMount U-Bracket
Compliance ETL listed to comply with UL 1480A
CSA STD C22.2# 62368-1
EN54-24, ISO 7240-24, IEC 62368-1
Environmental Rating IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation)
IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2)
IEC 60068-2-60 (Chlorine)
Dimensions H x W x D 458 mm x 260 mm x 263 mm [18" x 10.2" x 10.4"]
Weight (loudspeaker only) 11.2 kg [24.73 lbs]
Finish High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish
Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover
Color: Black (RAL 9017) or White (RAL 9016)
Grille Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth
Black or White
Models (Order by mounting option) EX-S8-CM [-B,-W] - loudspeaker with large ClickMount pan-tilt bracket
EX-S8-UB [-B,-W] - loudspeaker with ClickMount U-Bracket and ClickPlug
Options CMX-LG [-B,-W] - Large ClickMount Pan-tilt Bracket Kit
EXUB-S8 [-B,-W] - EX-S8 ClickMount U-Bracket kit
