Biamp Desono EX-S8-CM 8” Coaxial Surface Mount Indoor/Outdoor Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation, included ClickMount pan-tilt mounting bracket (White) - 911.1813.900
Biamp Desono EX-S8-CM 8” Coaxial Surface Mount Indoor/Outdoor Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation, included ClickMount pan-tilt mounting bracket (White) - 911.1813.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Desono EX-S8-CM 8” Coaxial Surface Mount Indoor/Outdoor Louds...
Product Overview
The Biamp Desono EX-S8-CM is an 8-inch two-way coaxial surface-mount loudspeaker for indoor and outdoor use. It delivers detailed voicing with projection and pairs an 8-inch LF driver with a 1.4-inch HF compression driver. The unit ships with a large ClickMount pan-tilt bracket for fast, indexed aiming. It operates at 8 ohm or on 70 V/100 V distributed systems.
Product Description

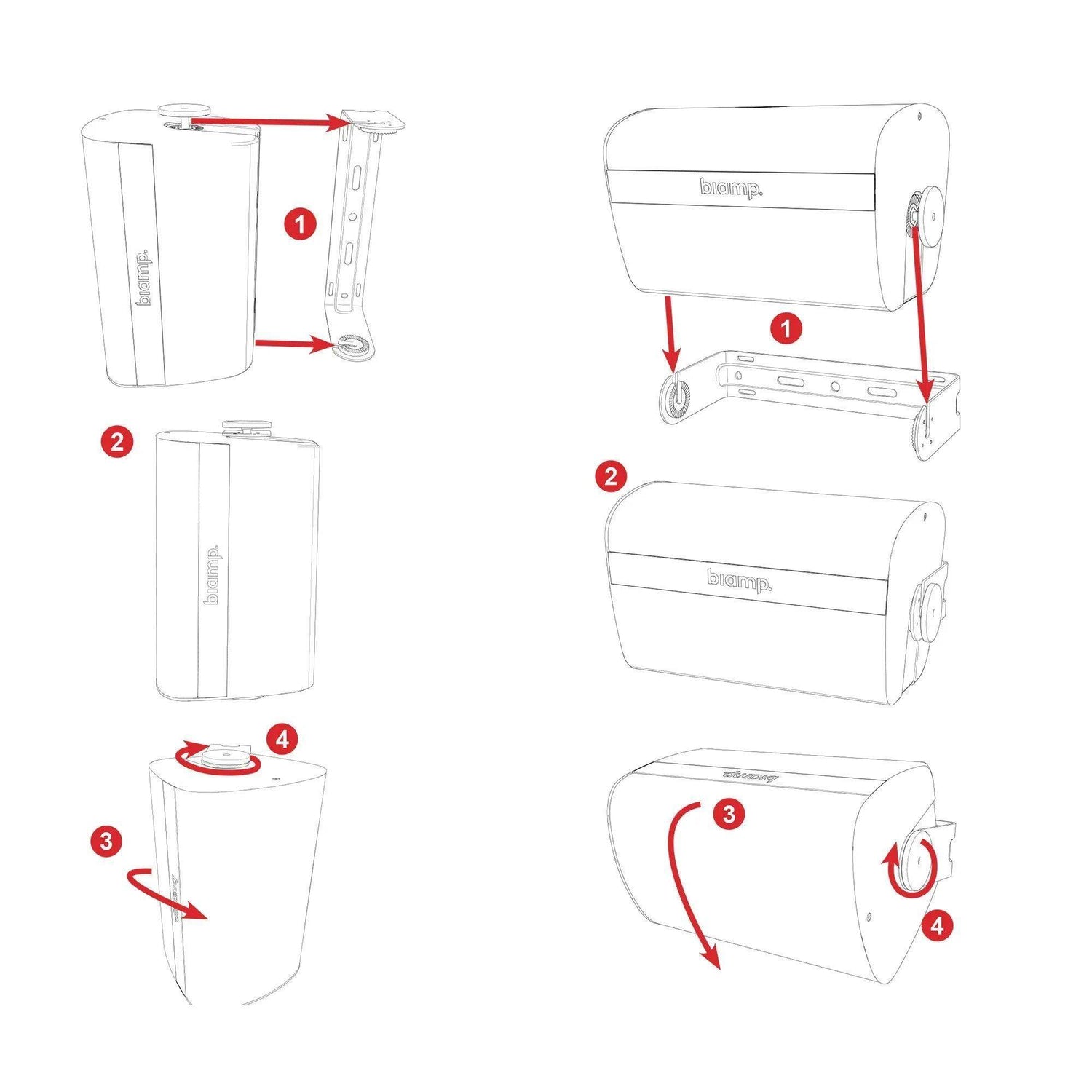

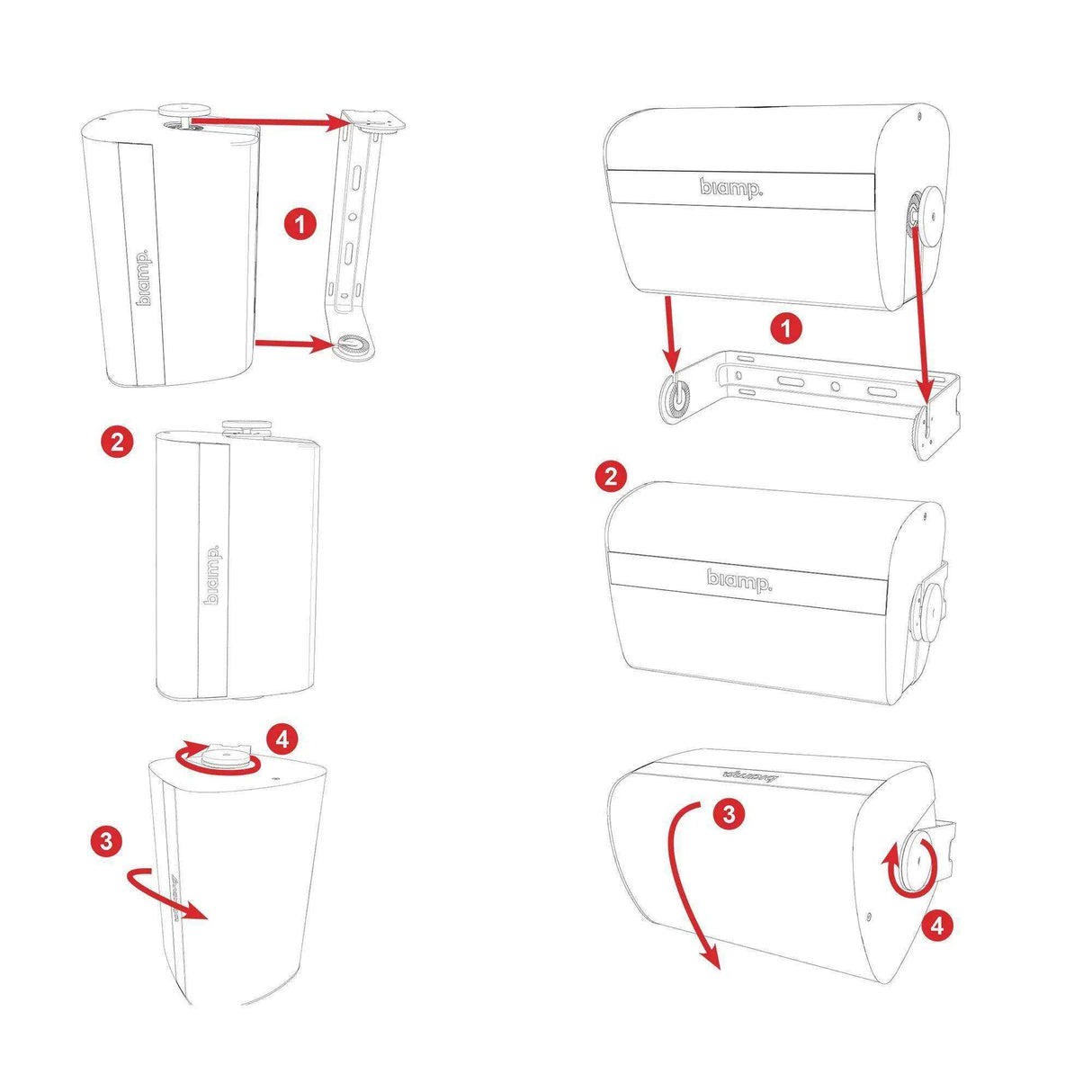

The EX-S8 is an excellent fill or distributed loudspeaker for systems where pristine voice clarity, higher output, and more bass are desired. Coaxially mounted HF and LF drivers provide uniform coverage across the listening area. A 5-position switch selects 70 V/100 V transformer taps or low-impedance bypass. The included ClickMount pan-tilt bracket provides indexed aiming and allows mounting in either vertical or horizontal orientation without moving the bracket position, and it is theft and tamper resistant. The loudspeaker is ETL listed to UL 1480A and EN54-24 certified for life-safety use. Backed by Biamp's five-year warranty.
Key Features
- Coaxial two-way design — An 8" LF driver and 1.4" HF compression driver are coaxially mounted for uniform coverage and clear voicing.
- Indoor/outdoor rating — An IP54 environmental rating allows installation in covered exterior and high-humidity locations.
- Selectable operation — A switch selects 70 V/100 V transformer taps or low-impedance bypass for flexible system wiring.
- EN54-24 certified — The loudspeaker is EN54-24 certified for use in voice alarm and life-safety applications.
- Tamper-resistant mounting — The included ClickMount bracket is theft and tamper resistant for secure installation.
Typical Applications
The EX-S8 suits commercial meeting spaces, multi-purpose rooms, auditoriums, and houses of worship where high-output, intelligible speech and music reinforcement is required indoors or under cover outdoors.
Technical Specifications
| Operating Mode | Passive with selectable low-impedance or 70 V/100 V operation |
| Operating Environment | Indoor/Outdoor |
| Operating Range (-10 dB) | 55 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 105° x 105° |
| Transducers | LF 1 x 8" (200 mm) treated paper cone; HF 1 x 1.4" (35 mm) compression driver |
| Sensitivity @ 1 m | 90 dB (2.83 V); 90 dB (1 W, 8 Ω) |
| Nominal Continuous Power Handling | 250 W, 8 Ω nominal impedance |
| Transformer Taps | 70 V: 80/40/20/10 W; 100 V: 80/40/20 W |
| Crossover | 1.55 kHz with driver protection circuitry |
| Recommended Amplifiers | 250 W - 500 W, 8 Ω (45 V - 63 V) |
| Input Connection | Lever-actuated 4-position terminal block with pass-through |
| Environmental Rating | IP54 per IEC 60529 |
| Compliance | ETL to UL 1480A, CSA 62368-1, EN54-24, ISO 7240-24, IEC 62368-1 |
| Dimensions (H x W x D) | 458 x 260 x 263 mm (18" x 10.2" x 10.4") |
| Weight | 11.2 kg (24.73 lbs), loudspeaker only |
| Finish | Painted UV-resistant matte polycarbonate/ABS, White (RAL 9016) |
Frequently Asked Questions
Can the EX-S8 be used outdoors?
Yes. It carries an IP54 environmental rating and is designed for indoor or covered outdoor installation.
Does it support 70V/100V systems?
Yes. A front selector switches between 70 V/100 V transformer taps and low-impedance operation.
Is the EX-S8 rated for life-safety use?
Yes. It is EN54-24 certified for voice alarm and emergency notification applications.
