Product Overview

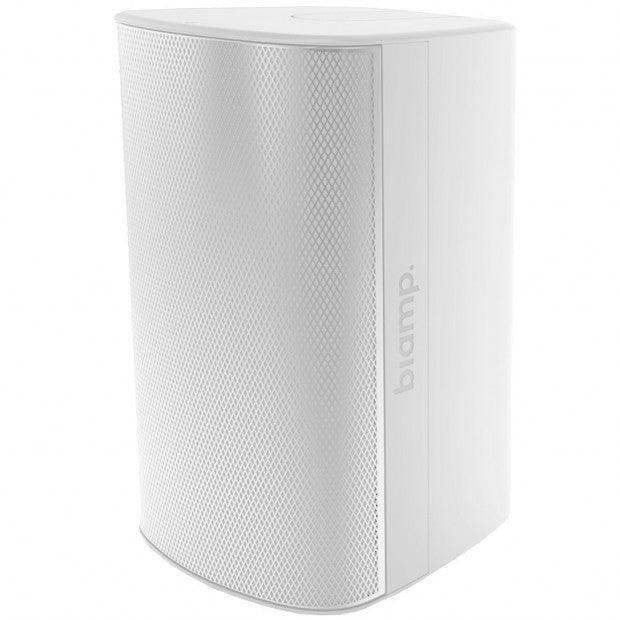

The Biamp Desono EX-S6 is the smallest member of the EX Series, a 6.5-inch two-way coaxial surface mount loudspeaker in white. It provides discreet, distributed sound for applications requiring exceptional audio clarity with a small visual footprint, offering 120° wide dispersion and flat response below 80 Hz for optimal near-field listening. This EX-S6-CM configuration includes the ClickMount pan-tilt bracket.
Product Description
The EX-S6 delivers exceptional audio clarity in a compact, attractively styled enclosure, with uniform coverage from its coaxially mounted HF and LF drivers. A 5-position switch selects 70V/100V transformer taps or low-impedance bypass. Designed for fast installation, Biamp’s patented ClickMount™ brackets provide two distinct mounting options: the ClickMount pan-tilt bracket. ClickMount brackets allow EX Series loudspeakers to be mounted quickly in vertical or horizontal orientation, are theft and tamper resistant, and the U-bracket option includes a ClickPlug with integrated gland nut for weather-resistant applications. The loudspeaker is IP54 rated and ETL listed to UL 1480A and EN54-24. Supplied in white with the CM mounting option.
Key Features
- Compact Two-Way Coaxial — 6.5-inch coaxial design provides clear sound with a small visual footprint.
- Wide Dispersion — 120° x 120° coverage with flat response below 80 Hz for near-field listening.
- Selectable Operation — 5-position switch selects 70V/100V taps or low-impedance bypass.
- ClickMount Mounting — Includes the ClickMount pan-tilt bracket for fast, secure installation.
- Tamper Resistant — ClickMount brackets are theft and tamper resistant.
- Indoor/Outdoor — IP54 rated and ETL listed to UL 1480A, EN54-24 for indoor or outdoor use.
Typical Applications
- Commercial meeting space
- Multi-purpose room
- Government space
Technical Specifications
| Operating Mode | Passive with selectable low-impedance or 70V/100V operation |
| Operating Environment | Indoor/Outdoor |
| Operating Range (-10dB) | 58 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 120° x 120° |
| Transducers | LF 1 x 6.5" (165 mm) treated paper cone; HF 1 x 1" (25 mm) treated soft dome w/ waveguide |
| Sensitivity @ 1 m | 89 dB (2.83 V); 89 dB (1 W, 8 Ω) |
| Nominal Continuous Power Handling | 200 W, 8 Ω (40 V) |
| Nominal Maximum SPL | Continuous 112 dB; Peak 118 dB |
| Transformer | 70V: 80W, 40W, 20W, 10W; 100V: 80W, 40W, 20W |
| Crossover | 1.58 kHz with driver protection circuitry |
| Environmental Rating | IP54 per IEC 60529 |
| Compliance | ETL listed to UL 1480A, CSA C22.2 #62368-1, EN54-24 |
| Dimensions (H x W x D) | 349 x 217 x 220 mm (13.7" x 8.5" x 8.6") |
| Weight (loudspeaker only) | 6.5 kg (14.4 lbs) |
| Mounting (this model) | ClickMount pan-tilt bracket |
| Finish | White |
