Biamp Desono EX-S10-UB 10” Coaxial Surface Mount Indoor/Outdoor Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation, included indexing u-bracket and weather cover (Black) - 911.1820.900

Biamp SKU: 911.1820.900
No reviews

Price:
Sale price$1,024.00

Description

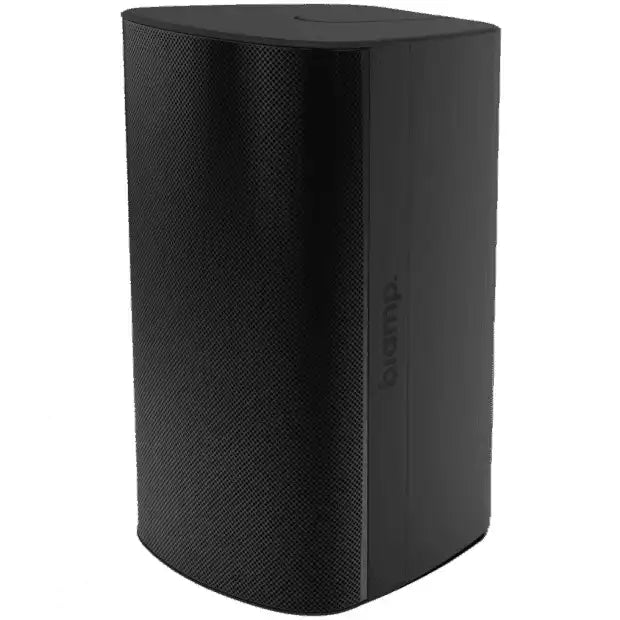

The Desono EX-S10, the largest member of the EX Series, 10" two-way surface mount loudspeaker provides excellent musicality with deep LF extension. It's perfectly suited as the front-of-house in small venues or used in distributed applications without subwoofers.

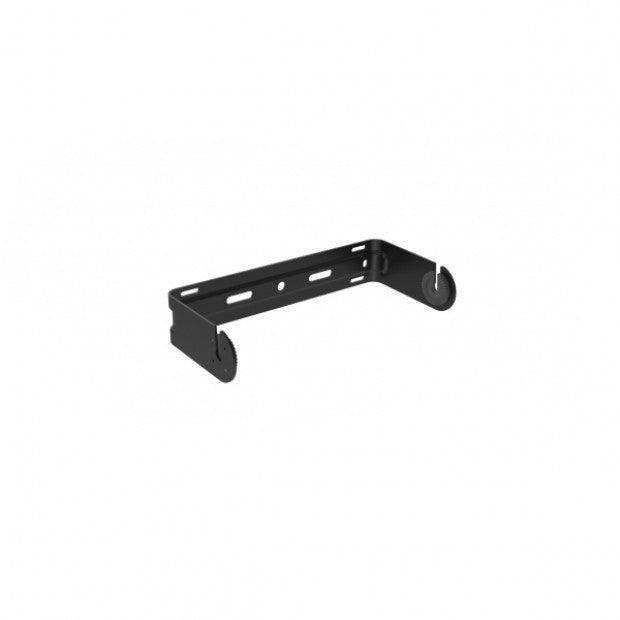

Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.

  • Exceptional audio clarity with small footprint and attractive styling
  • Uniform coverage from coaxially mounted HF/LF drivers
  • 5-position switch selects 70V/100V taps or low impedance bypass
  • Utilizes innovative ClickMount pan-tilt and U-brackets for mounting
  • ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
  • EN54-24 certified
Operating Mode Passive with selectable low-impedance or 70V/100V operation
Operating Environment Indoor/Outdoor
Operating Range 55 Hz to 18 kHz
Nominal Beamwidth (H x V) 90°, conical
Transducers LF 1 x 10" (254 mm) treated paper cone
HF 1 x 1.4" (36 mm) horn-loaded treated soft dome
Transformer 70V: 120W, 60W, 30W, 15W
100V: 120W, 60W, 30W
Input Connection Lever-actuated wire clamping 4-position terminal block with pass-through
Environmental Rating IP54 per IEC 60529
Dimensions (H x W x D) 20.7" (527 mm) x 12.1" (308 mm) x 12.3" (313 mm)
Weight TBD
