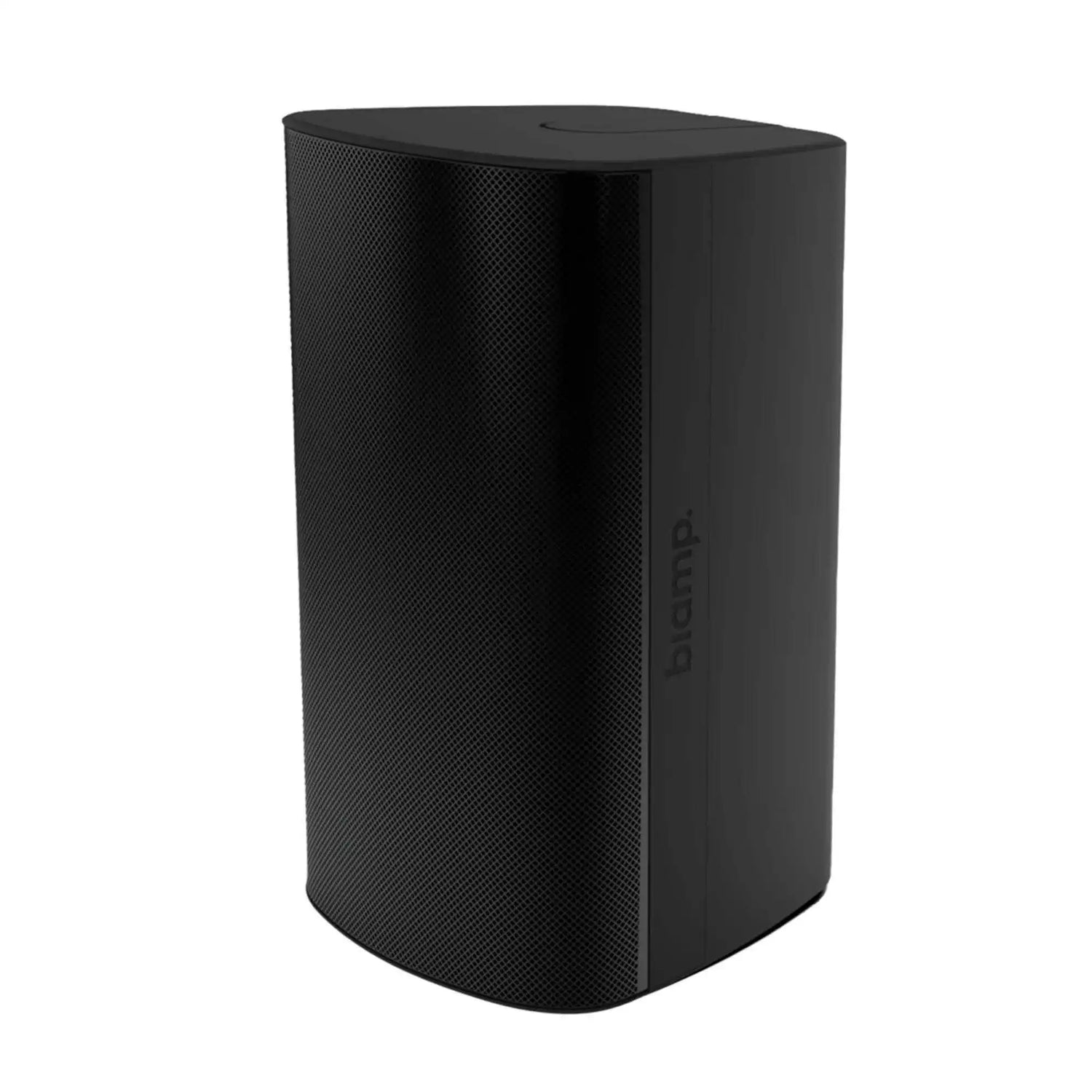

Biamp Desono EX-S10-CM 10” Coaxial Surface Mount Indoor/Outdoor Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation, included ClickMount pan-tilt mounting bracket (Black) - 911.1818.900
Biamp Desono EX-S10-CM 10” Coaxial Surface Mount Indoor/Outdoor Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation, included ClickMount pan-tilt mounting bracket (Black) - 911.1818.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Desono EX-S10-CM 10” Coaxial Surface Mount Indoor/Outdoor Lou...
Product Overview
The Biamp Desono EX-S10 is the largest member of the EX Series, a 10-inch two-way coaxial surface mount indoor/outdoor loudspeaker that provides excellent musicality with deep LF extension. It suits front-of-house duty in small venues and distributed applications without subwoofers. This makes it a strong choice as a surface mount loudspeaker, an indoor/outdoor coaxial speaker, and a 70V/100V distributed audio loudspeaker. This model ships with the ClickMount pan-tilt mounting bracket in a Black finish.
Product Description
The EX-S10 delivers excellent audio clarity from a coaxially mounted HF and LF driver arrangement that produces uniform coverage. A five-position switch selects 70V/100V transformer taps or a low-impedance bypass, supporting both distributed and direct-drive operation. Designed for fast installation, Biamp's patented ClickMount brackets provide two distinct mounting options: the pan-tilt bracket gives indexed aiming control and allows mounting in vertical or horizontal orientation without moving the bracket, while the U-Bracket suits low-profile or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant installs. Both brackets are theft and tamper resistant. The loudspeaker is ETL listed to comply with UL 1480A and CSA 62368-1, CE marked, RoHS compliant, and EN54-24 certified, with an IP54 environmental rating for indoor/outdoor use.
Key Features
- Coaxial Drivers — Coaxially mounted HF and LF drivers deliver uniform coverage.
- Selectable Operation — A five-position switch selects 70V/100V taps or low-impedance bypass.
- ClickMount Brackets — Patented pan-tilt and U-Bracket options speed installation and aiming.
- Indoor/Outdoor Rated — An IP54 rating supports indoor and outdoor installation.
- Tamper Resistant — Both mounting brackets are theft and tamper resistant.
- Certified Compliance — The speaker is ETL listed to UL 1480A and CSA 62368-1, CE marked, RoHS compliant, and EN54-24 certified.
Typical Applications
- Commercial Meeting Space — Surface mount design suits distributed audio in commercial facilities.
- Multi-Purpose Room — Full-range output handles foreground music and program audio.
- House of Worship — Indoor/outdoor rating supports interior and exterior coverage zones.
Technical Specifications
| Operating Mode | Passive with selectable low-impedance or 70V/100V operation |
| Operating Environment | Indoor/Outdoor |
| Operating Range (-10dB) | 48 Hz to 20 kHz |
| Nominal Beamwidth | 100° x 100° |
| Transducers | LF 1 x 10-inch treated paper cone; HF 1 x 1.4-inch compression driver |
| Sensitivity @ 1m | 91 dB (2.83 V); 91 dB (1 W, 8 ohm) |
| Power Handling | 300 W, 8 ohm nominal impedance |
| Transformer | 70V: 120W, 60W, 30W, 15W; 100V: 120W, 60W, 30W |
| Crossover | 1.48 kHz |
| Input Connection | Lever-actuated 4-position terminal block with pass-through |
| Compliance | ETL to UL 1480A, CSA C22.2#62368-1, EN54-24, ISO 7240-24, IEC 62368-1 |
| Environmental Rating | IP54 per IEC 60529 |
| Dimensions | 529 x 310 x 312 mm (20.8 x 12.2 x 12.3 in) |
| Weight (loudspeaker only) | 15.2 kg (33.43 lbs) |
| Finish | Black |
| Mounting | ClickMount pan-tilt mounting bracket |
Frequently Asked Questions
Can the EX-S10 be used outdoors?
Yes. It is rated IP54 and is designed for indoor and outdoor installation.
Does it support 70V/100V distributed systems?
Yes. A five-position switch selects 70V/100V transformer taps or a low-impedance bypass.
What mounting does this model include?
This model ships with the ClickMount pan-tilt mounting bracket.
Is the EX-S10 certified for voice alarm use?
It is EN54-24 certified and ETL listed to comply with UL 1480A.
Explore the full range at Creation Networks Biamp collection.
