Biamp Desono ENTASYS 750 Watt External Autoformer (White) - 911.1381.900
Biamp Desono ENTASYS 750 Watt External Autoformer (White) - 911.1381.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Desono ENTASYS 750 Watt External Autoformer (White) - 911.138...
Product Overview
The Biamp Desono ENTASYS 750 Watt External Autoformer is a step-down auto-transformer for use with the ENT-FR or ENT-LF column loudspeakers in constant-voltage distribution systems. Designated the ENT-750TW, it converts a distributed high-voltage, low-current signal to a lower-voltage, higher-current signal that can effectively drive ENTASYS column loudspeakers. It is offered in white to match the loudspeaker enclosure, and a matching mounting bracket is included.
Product Description
In constant-voltage distribution systems, long cable runs introduce I²R losses. The ENT-750TW autoformer minimizes these losses by stepping the distributed voltage down to a level appropriate for driving the ENT-FR and ENT-LF column loudspeakers, preserving output and efficiency over long runs. It has a frequency response of 200 Hz to 15 kHz with 0.5 dB insertion loss, and a recommended 200 Hz, 24 dB/octave high-pass filter. The unit uses a one-piece aluminum extrusion enclosure with molded nylon end caps and ships with a "T" mounting bracket. It is available in white to coordinate with the enclosure finish.
Key Features
- Step-Down Autoformer — Converts distributed high-voltage, low-current signal to lower-voltage, higher-current drive for column loudspeakers.
- Reduced Cable Loss — Minimizes I²R losses over long cable runs in constant-voltage systems.
- ENTASYS Compatibility — Designed for use with the ENT-FR and ENT-LF column loudspeakers.
- Low Insertion Loss — Specified at 0.5 dB insertion loss across a 200 Hz to 15 kHz response.

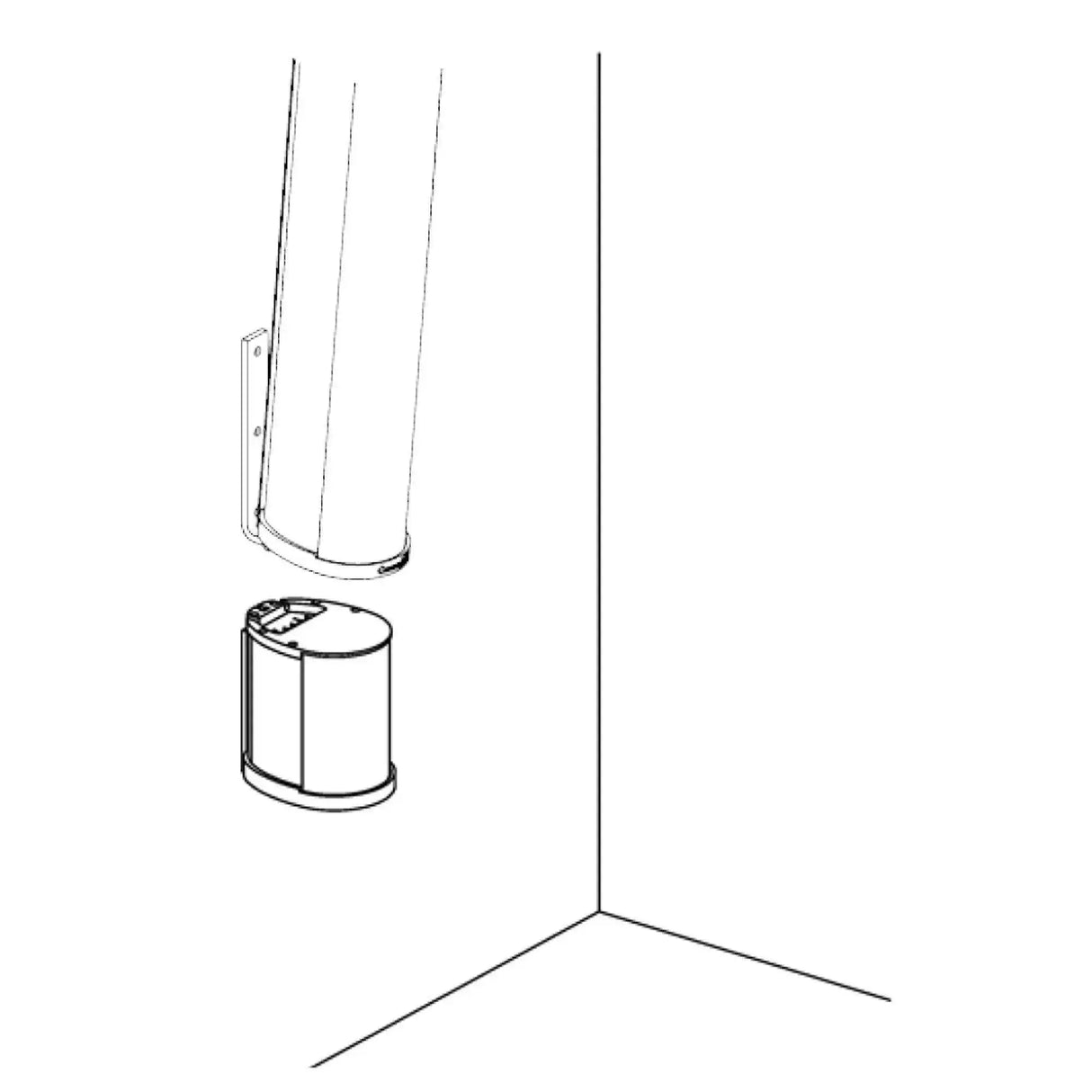

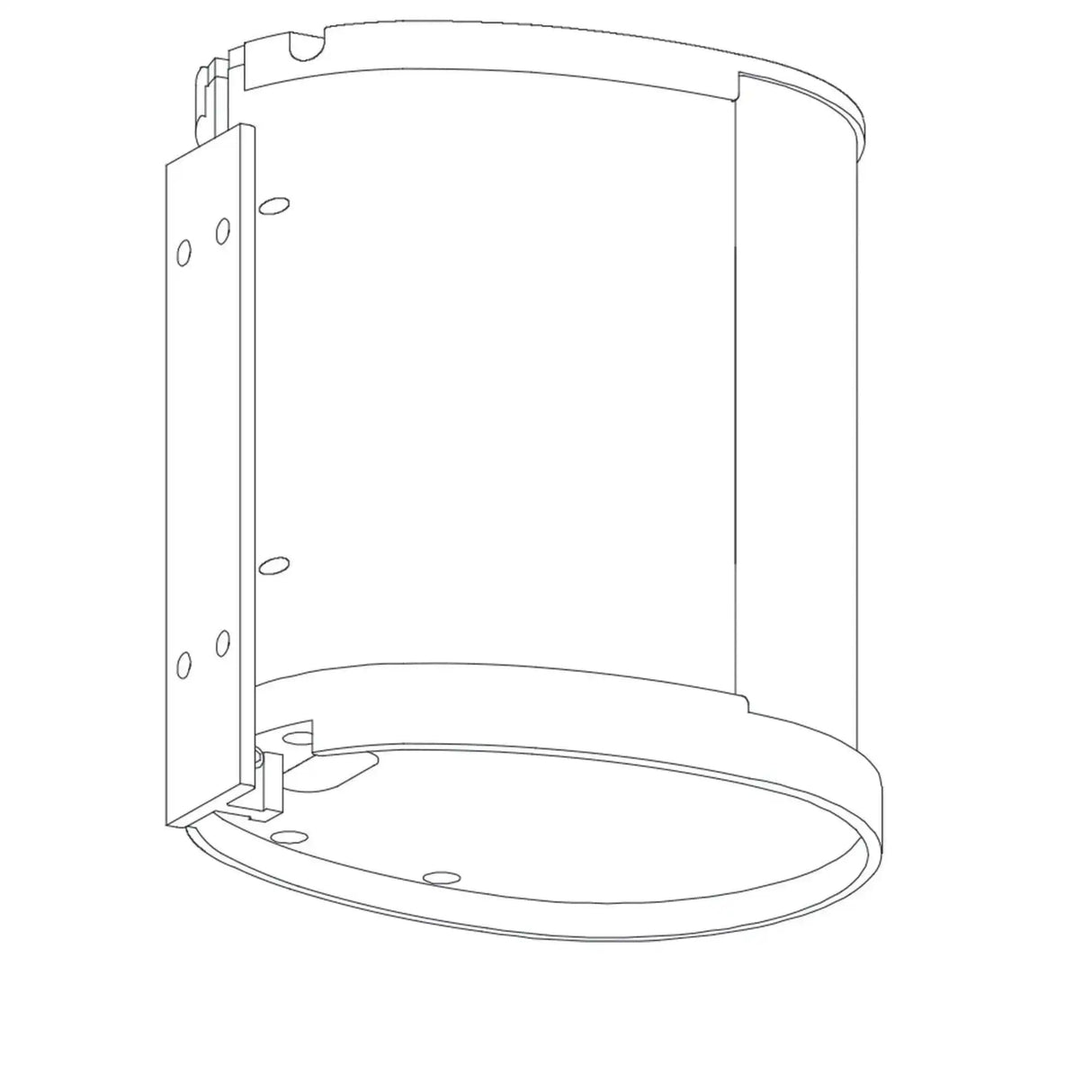

- Mounting Bracket Included — Ships with a matching "T" mounting bracket.
- Color-Matched — Available in white to match the ENTASYS enclosure finish.
Technical Specifications
| Frequency Response | 200 Hz - 15 kHz |
| Insertion Loss | 0.5 dB |
| Low Frequency Limit at Maximum Input | 100 Hz |
| Recommended HP Filter | 200 Hz, 24 dB/octave |
| Input Connection | Top: barrier strip terminals; Bottom: (1) dual banana jack (female) |
| Mounting Provisions | "T" mounting bracket (included) |
| Enclosure | One-piece aluminum extrusion with molded nylon end caps |
| Finish | White |
| Dimensions (H x W x D) | 7.67" x 5.5" x 7.36" (195 x 140 x 187 mm) |
