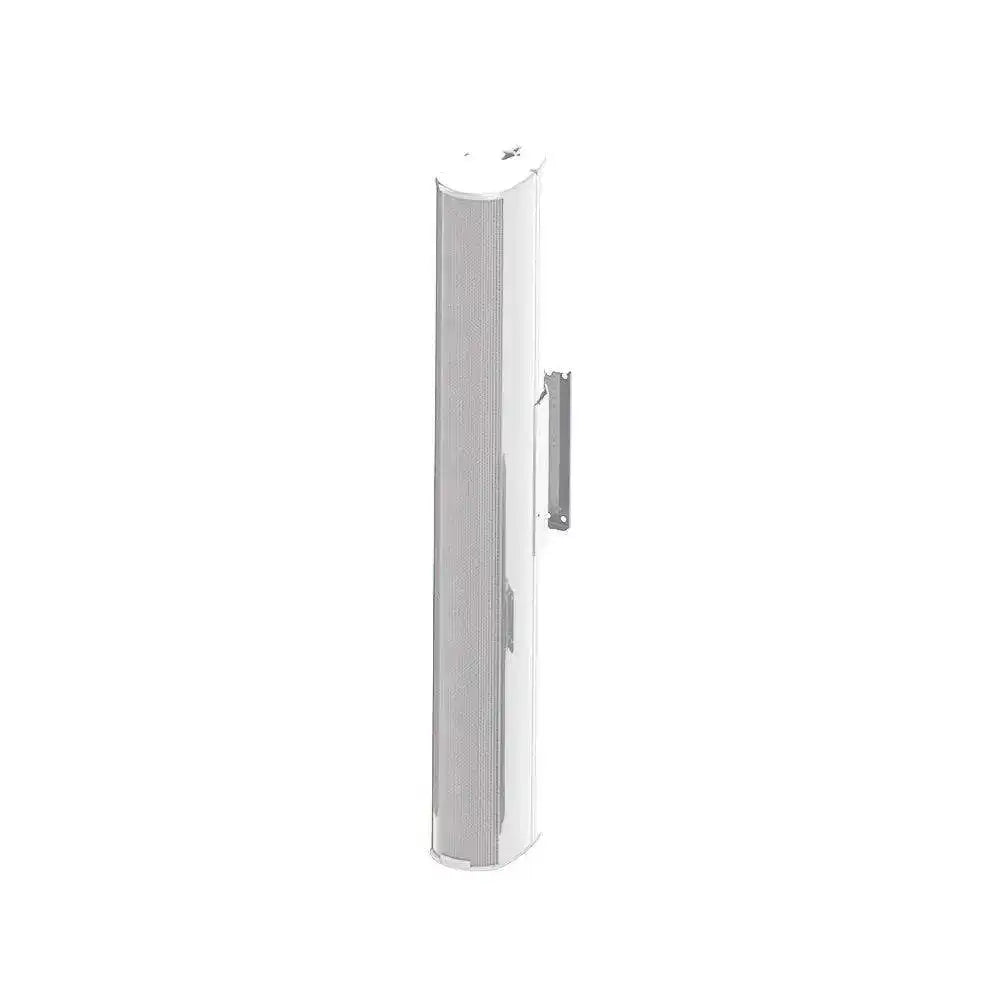

The ENT212 is an all-weather column line array housed in an attractive, heavy duty extruded PVC enclosure. Twice the height of the ENT206, the ENT212 provides vertical directional control at far lower frequencies than the ENT206, plus enough power to cover medium-sized venues as the primary system. The ENT212 excels in noisy environments - gymnasiums and other athletic venues are just two of many examples - while its high-fidelity response makes it suitable for more subtle applications such as scholastic auditoriums, houses of worship, jazz and folk music clubs, corporate AV presentations, and much more. The excellent vertical directivity conquers large, reverberant spaces, providing excellent intelligibility and musicality. With the addition of subwoofers, an ENT212 system is capable of meeting a vast range of requirements, from the soccer stadium to the performing arts center. The ENT212 employs twelve high-power LF cone drivers and four Community CRE (Compact Ribbon Emulator) HF tweeter arrays in a single-amped configuration that employs a 4-way frequency shaded crossover.
All ENTASYS 200 models are available in standard black or white finishes, include selectable low impedance or 70/100-volt operation, a rugged pan-tilt mounting bracket and a permanently mounted safety eyebolt. The paintable enclosures share a 4-5/8-inch wide by 7-1/2-inch deep “teardrop” footprint.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
Features
- Advanced passive crossover technology and dynamic protection circuitryCompact Ribbon Emulator high frequency technology for narrow, well-behaved directivity control
- All-weather construction for indoor/outdoor use
- Simple installation using the included pan-tilt mounting bracket
- Selectable low impedance or 70V/100V operation
Specifications
Operating Mode | Passive |
Operating Environment | Indoor or outdoor |
Operating Range | 120 Hz to 22 kHz |
Nominal Beamwidth (H x V) | 140° x 15° |
Transducers | LF 12 x 80mm long excursion mylar driver HF 4 x 3-element Compact Ribbon Emulator |
Continuous Power Handling @ Nominal Impedance | 51V 325W @ 8Ω (1300W peak) |
Autoformer | 70V: 120W 60W 30W 15W 7.5W 100V: 120W 60W 30W 15W |
Nominal Sensitivity | @ 1W 97 dB @ 2.83V 97 dB |
Nominal Maximum SPL (Whole Space) | Peak 128 dB Continuous 122 dB |
Equalized Sensitivity | @ 1W 97 dB @ 2.83V 97 dB |
Equalized Maximum SPL | Peak 128 dB Continuous 122 dB |
Required Accessories | External High Pass Filter - 100 Hz, 24 dB /octave Digital Signal Processor |
Recommended Amplifiers | 325W - 650W @ 8Ω (51V - 72V) |
Input Connection | NL4-type connector for low impedance operation, and 8-position terminal strip for low impedance or constant voltage operation |
Mounting Points | Small pan-tilt mounting bracket included; (up to 10.8° down-tilt, ± 55° panning) |
Environmental | IP54 per IEC 60529, designed in accordance with MIL-STD-810G Included ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress |
Dimensions H x W x D | 39.11" x 4.63" x 7.48" (993 mm x 118 mm x 190 mm) |
Weight | 28 lbs (12.7 kg) |
Finish | Black or White high gloss extruded paintable PVC |
Grille | Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003) |
Optional | E200-UMK universal mounting kit E200-SAK stand adapter kit |
