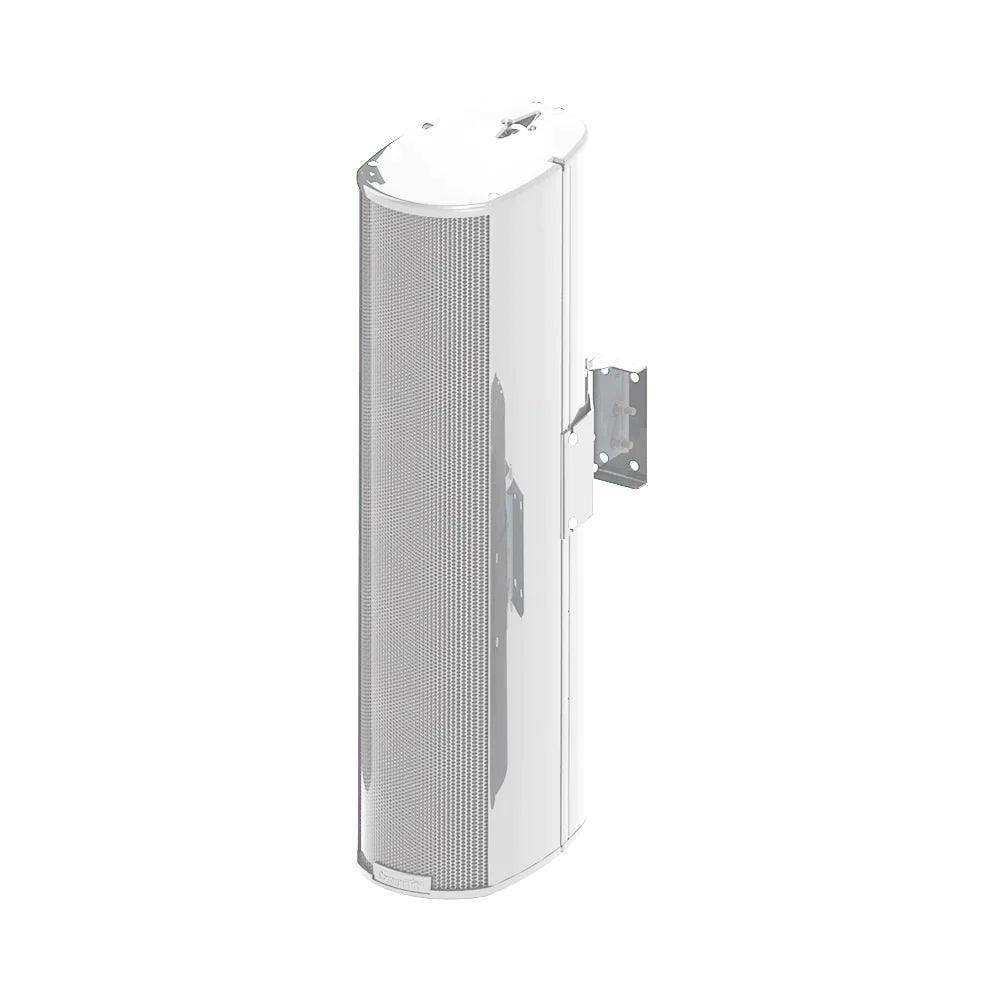

Biamp Desono ENT206 ENTASYS 200 Column, 2-Way 6 LF Drivers (White) - 911.0561.900
Roll over image to zoom in Click on image to zoom
Biamp Desono ENT206 ENTASYS 200 Column, 2-Way 6 LF Drivers (White) - 911.0561.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono ENT206 ENTASYS 200 Column, 2-Way 6 LF Drivers (White) - 911.0561.900

Biamp SKU: 911.0561.900
No reviews
Price:
$740.00

Description

The ENT206 is an all-weather, column array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure. Double the height of the smaller ENT203, the ENT206 provides directional control at significantly lower frequencies than the ENT203, along with enough power to effectively cover much larger areas while still remaining unobtrusive. Ideally suited to applications such as music and speech reinforcement for reverberant houses of worship, hotel lobbies, assembly rooms, transit stations, indoor/outdoor swimming pools, outdoor smoking areas, bowling alleys, and much more, the ENT206 is a solid performer that belies its small size. Like the ENT203, the ENT206 also can be utilized to support larger systems for delay and area fill. The ENT206 employs six high-power LF cone drivers and two Community CRE (Compact Ribbon Emulator) HF tweeter arrays in a two-way, single-amped configuration.

All ENTASYS 200 models are available in standard black or white finishes, include selectable low impedance or 70/100-volt operation, a rugged pan-tilt mounting bracket and a permanently mounted safety eyebolt. The paintable enclosures share a 4-5/8-inch wide by 7-1/2-inch deep “teardrop” footprint.

AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.

  • Advanced passive crossover technology and dynamic protection circuitry
  • Compact Ribbon Emulator high frequency technology for narrow, well-behaved directivity control
  • All-weather construction for indoor/outdoor use
  • Simple installation using the included pan-tilt mounting bracket
  • Selectable low impedance or 70V/100V operation

Product Specs

Operating Mode Passive
Operating Environment Indoor or outdoor
Operating Range 120 Hz to 22 kHz
Nominal Beamwidth (H x V) 140°  x  20°
Transducers LF 6 x 80mm long excursion mylar driver
HF 2 x 3-element Compact Ribbon Emulator
Continuous Power Handling @ Nominal Impedance 35V 150W @ 8Ω (600W peak)
Autoformer 70V: 60W 30W 15W 7.5W 3.75W
100V: 60W 30W 15W 7.5W
Nominal Sensitivity @ 1W 94 dB
@ 2.83V 94 dB
Nominal Maximum SPL (Whole Space) Peak 122 dB
Continuous 116 dB
Equalized Sensitivity @ 1W 93 dB
@ 2.83V 93 dB
Equalized Maximum SPL Peak 121 dB
Continuous 115 dB
Required Accessories External High Pass Filter - 120 Hz, 24 dB /octave
Digital Signal Processor
Recommended Amplifiers 150W - 300W @ 8Ω (35V - 49V)
Input Connection NL4-type connector for low impedance operation, and 8-position terminal strip for low impedance or constant voltage operation
Mounting Points Small pan-tilt mounting bracket included (14° down-tilt, ± 55° panning)
Environmental P54 per IEC 60529, designed in accordance with MIL-STD-810G
Included ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress
Dimensions H x W x D 19.93" x 4.63" x 7.48" (506 mm x 118 mm x 190 mm)
Weight 15 lbs (6.8 kg)
Finish Black or White high gloss extruded paintable PVC
Grille Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003)
Optional E200-UMK universal mounting kit
E200-SAK stand adapter kit
