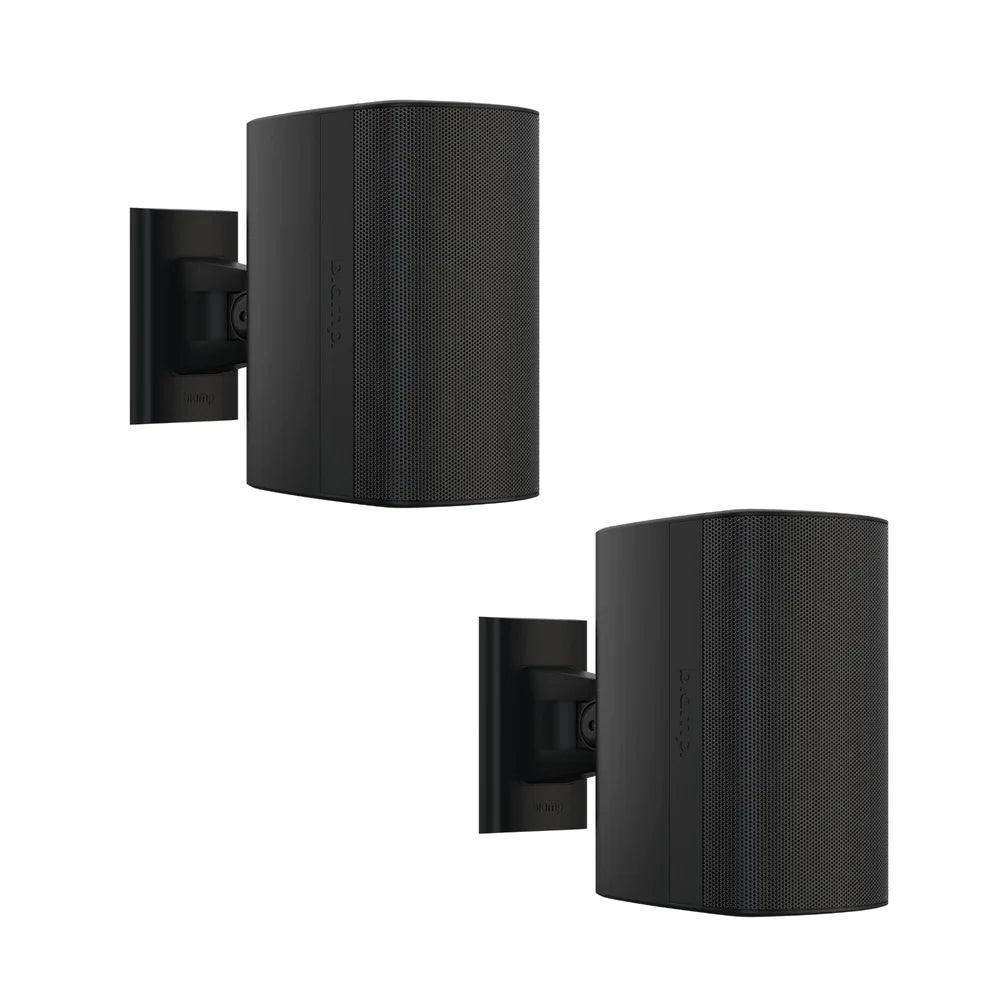

Biamp Desono DX-S5 5” High Output Coaxial Surface Mount Indoor/Outdoor Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation, included ClickMount pan-tilt mounting bracket (Pair, Black) - 910.0107.900
Roll over image to zoom in Click on image to zoom
Biamp Desono DX-S5 5” High Output Coaxial Surface Mount Indoor/Outdoor Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation, included ClickMount pan-tilt mounting bracket (Pair, Black) - 910.0107.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono DX-S5 5” High Output Coaxial Surface Mount Indoor/Outdoor Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation, included ClickMount pan-tilt mounting bracket (Pair, Black) - 910.0107.900

Biamp SKU: 910.0107.900
No reviews
Price:
$540.00

Description

Sold as a pair, the Desono™ DX surface mount loudspeakers provide high efficiency, high output, high intelligibility and low distortion in an attractive design. These loudspeakers install quickly and have the same components and voicing as the DX ceiling loudspeakers. The DX surface mount loudspeakers are equipped with a built-in 70 V/100 V autoformer and low impedance input.

Easily outperforming loudspeakers of a larger size format, the DX-S5 is ideal for installations where space is a premium. With a modern appearance that merges well in most environments, combined with weather-resistant capability suitable for direct outdoor use, the DX-S5 can be used in a wide variety of speech and music applications.

  • High efficiency, high output, high intelligibility, low distortion
  • Uniform coverage from coaxially mounted HF/LF drivers
  • Innovative ClickMount™ pan-tilt bracket makes installation and aiming easy
  • Uniform voicing with DX ceiling loudspeakers
  • ETL listed to comply with UL 1480A, CE marked, and RoHS compliant

Product Specs

Operating Mode Passive with DSP
Operating Environment Indoor / Outdoor
Operating Range (-10dB) 65 Hz to 20 kHz
Nominal Beamwidth (H x V) 130°, conical
Transducers LF 1 x 5" (127 mm)
HF 1 x 1.0" (25 mm) exit compression driver
Sensitivity 93  dB (2.83 V)
93  dB (1 W at rated impedance 8 Ω)
Nominal Continuous Power Handling 28 V (100 W @ 8 Ω)
Nominal Maximum SPL Peak 119 dB
Continuous 113 dB
Autoformer 70V: 60 W, 30 W, 15 W, 7.5 W
100V: 60 W, 30 W, 15 W
Recommended Amplifiers 100 W - 200 W @ 8  Ω, (28 V - 40 V)
Crossover Frequency 1.6 kHz
Required Accessory 65 Hz 24 dB/ Oct Electronic high pass filter
Input Connection Lever-actuated wire clamping 4-position terminal block with pass-through
Controls Wattage / low impedance selector switch
Mounting Provisions ClickMount pan-tilt bracket
Certifications ETL listed to comply with UL 1480A and CSA 62368-1
Environmental Rating IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation), IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2), IEC 60068-2-60 (Chlorine)
Dimensions H x W x D 280 x 180 x 185 mm ( 11.03" x 7.09" x 7.28")
Weight TBD
Finish ABS plastic, paintable Black or White finish.
Grille Powder-coated perforated aluminum backed with woven fabric. Black or White finish.
Accessories (included) ClickMount wall mount
Accessories (optional) ClickMount U-Bracket with ClickPlug (SPA-UBDX100 -B/-W)
