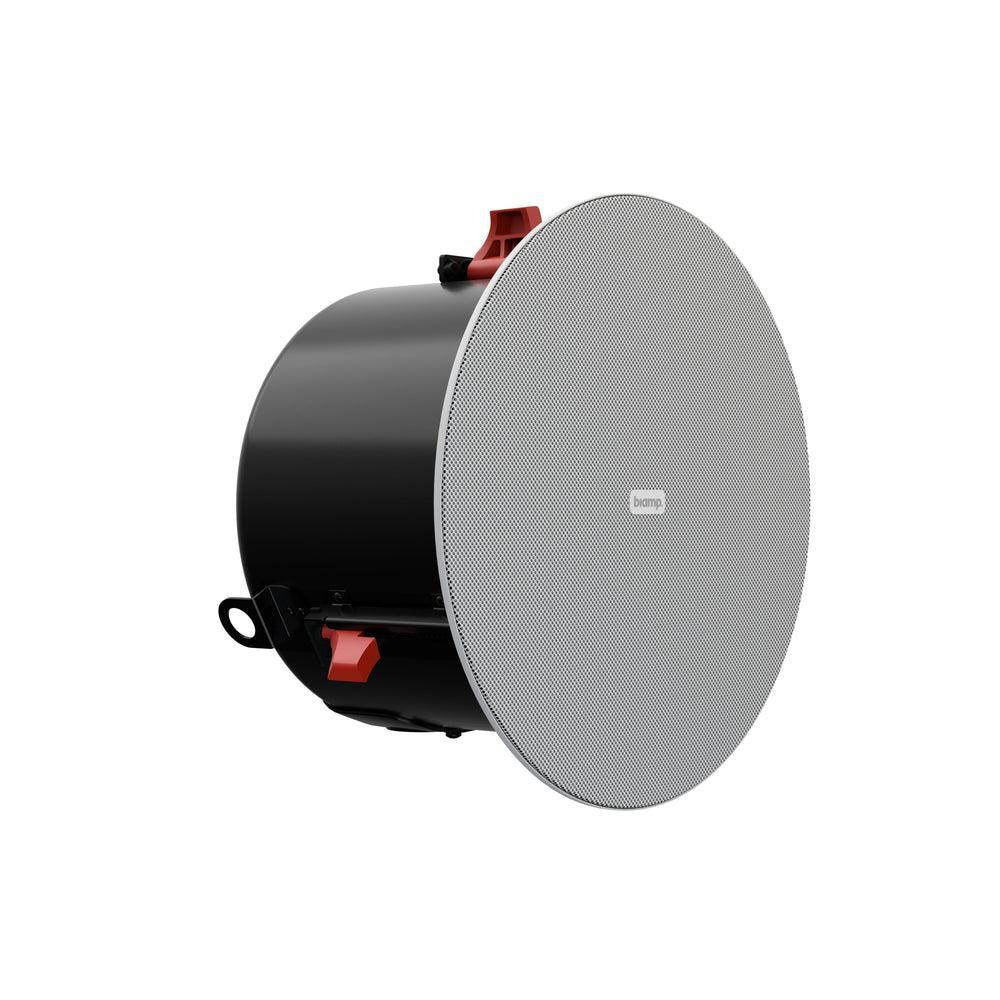

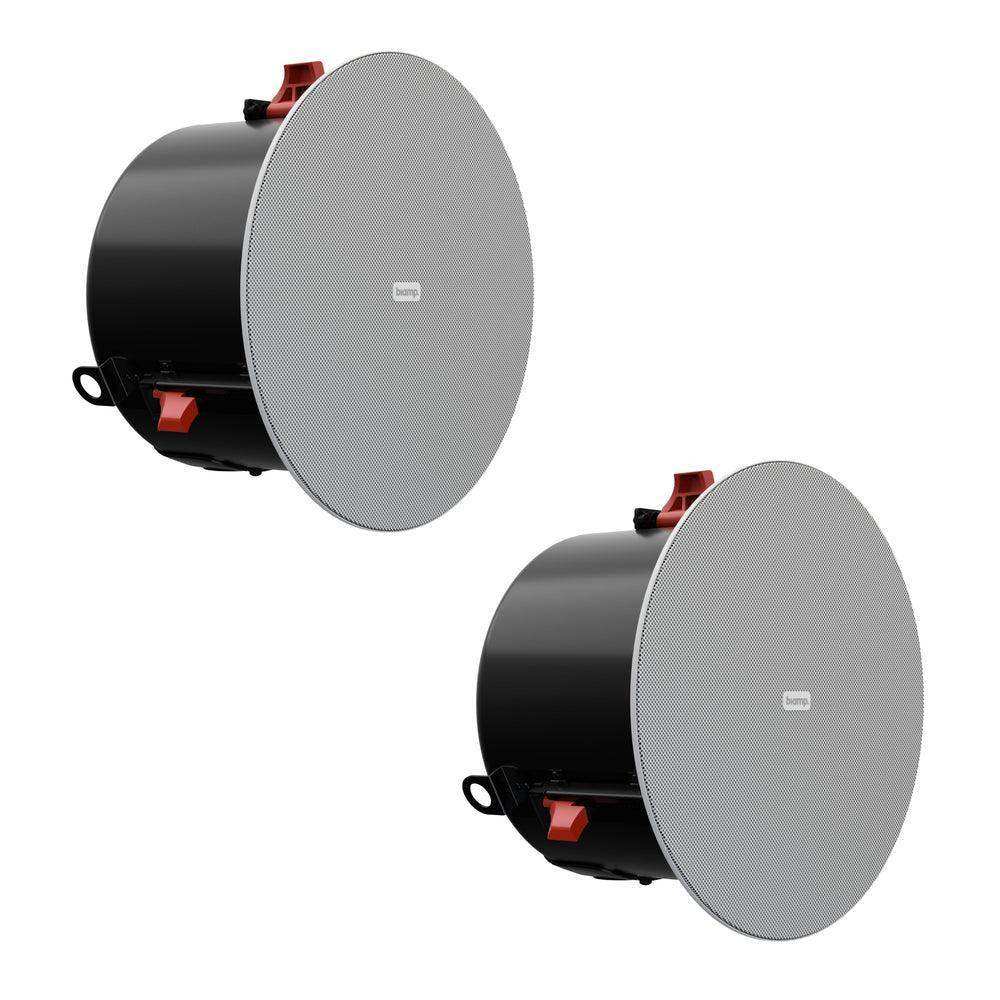

Biamp Desono DX-IC8-W 8” High Output Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0106.900
Biamp Desono DX-IC8-W 8” High Output Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0106.900
Roll over image to zoom in Click on image to zoom
Biamp Desono DX-IC8-W 8” High Output Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0106.900
Biamp Desono DX-IC8-W 8” High Output Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0106.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono DX-IC8-W 8” High Output Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0106.900

Biamp SKU: 910.0106.900
No reviews
Price:
$800.00

Description

Sold as a pair, the Desono DX-IC8 rewrites the cost-to-performance equation for high-end ceiling loudspeakers. Able to fulfill a wide variety of needs, the DX-IC8 exceeds the performance of competing high-ceiling models. Foreground music, high-level paging, and augmentation of large music systems as a delay or fill speaker in ancillary zones are all within the capability of this versatile performer. It is ideal for high ceiling applications.

Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC8 apart from other products in its size and price range. Featuring a genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC8 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.

  • High intelligibility with exceptional uniform coverage
  • Fast installation with SpringLock™ mounting clamps
  • Consistent, wide dispersion up to 16 kHz
  • Attractive edgeless magnetic grille design
  • Conduit knock-outs on the input cover meet plenum air space handling requirements

Product Specs

Operating Mode Passive with DSP
Operating Environment Indoor
Operating Range (-10dB) 60 Hz to 20 kHz
Nominal Beamwidth (H x V) 100°, conical
Transducers LF 1 x 8" (165 mm)
HF 1 x 1.25" (32 mm) exit compression driver
Sensitivity 95 dB (2.83 V)
95 dB (1W at rated impedance 8 Ω)
Nominal Continuous Power Handling 28 V (150W @ 8 Ω)
Nominal Maximum SPL Peak 123 dB
Continuous 117 dB
Autoformer 70V: 120 W, 60 W, 30 W, 15 W
100V: 120 W, 60 W, 30 W
Recommended Amplifiers 150 W - 300W @ 8 Ω, (35V - 49V)
Crossover Frequency 1.3 kHz
Required Accessory 60 Hz Electronic high pass filter
Input Connection 4-position Euroblock connector
Controls Front-face wattage / low impedance selector switch
Mounting Provisions 4 SpringLock mounting clamps with 3-inch grip range
Certifications ETL listed to comply with UL1480, UL2043 and CSA62368-1
Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Dimensions W x D 341 mm x 216 mm (13.43" x 8.51")
Weight TBD
Finish Back Can: Black, Matte finish Steel
Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish.
Grille Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish.
Cutout Diameter 310 mm (12.20")
Accessories (included) C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
Accessories (optional) New Construction Brackets (SPA-NC500)
Black Grilles (SPA-GRB500)
High Humidity Grilles (SPA-GHH500)
48" Tile Rails (SPA-RAIL48)
Plenum-rated Dual-RJ45 Adapter (SPA-CCA200)
